Austyle Builders Choice Lever Satin Brass 63mm Satin Brass & Matt Black And White
-
Product Type: Premium All-In-One Internal Passage and Privacy Door Lever Set
-
Brand / Collection: Builders Choice (by Austyle)
-
Model Design Reference: 43540 Series Architectural Profile
-
Configuration Status: Dual-Function "All-In-One" Kit (Includes pre-packed modular components to configure the handle as either a free-swinging passage set or an integrated privacy locking handle)
-
Fire Safety Compliance: Fire Rated for up to 4 Hours (Fully tested and certified for commercial fire doors and compliance-driven building projects)
-
Design Profile: Modern Architectural Straight Lever Mounted on a Slim 63mm Round Rose Backplate
-
Base Material: Premium Zinc Alloy Die-Cast Structural Construction
-
Internal Mechanism: Patented Stainless Steel Ball Bearing Race Mechanism (Provides ultra-smooth lever rotation, high sag resistance, and long-term operating durability)
-
Sizing Dimensions: 63mm Round Rose Diameter with a Slim 54mm External Lever Projection from the door face
-
Product Weight: 1.0088 kg total gross packet weight (indicates solid, robust manufacturing tolerances)
-
Latch Mechanics Included: Supplied with a matching multi-function 60mm backset passage/privacy tubular latch assembly
-
Installation Hardware: Equipped with an ultra-secure, tamper-proof 75mm stainless steel tie-bolt screw fixing kit that anchors firmly from either side of the door
-

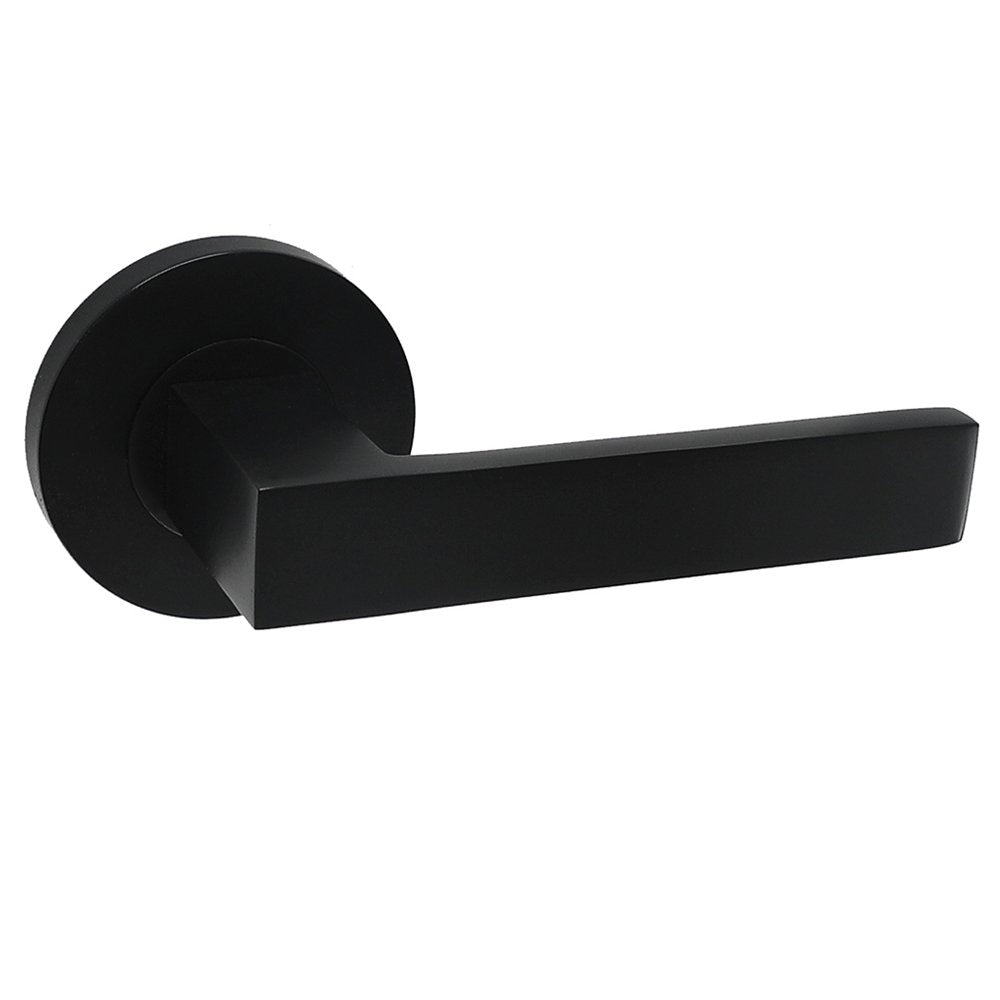

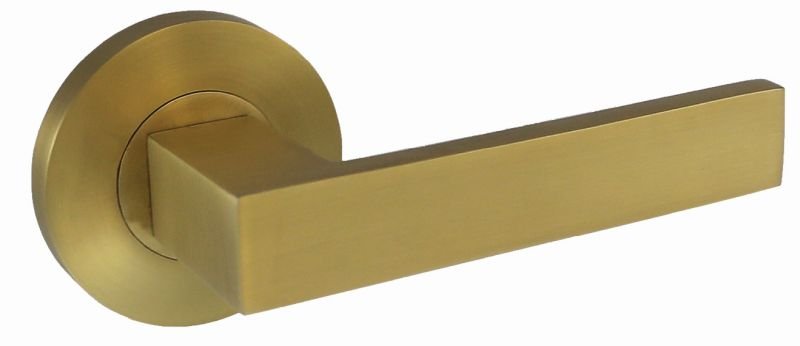

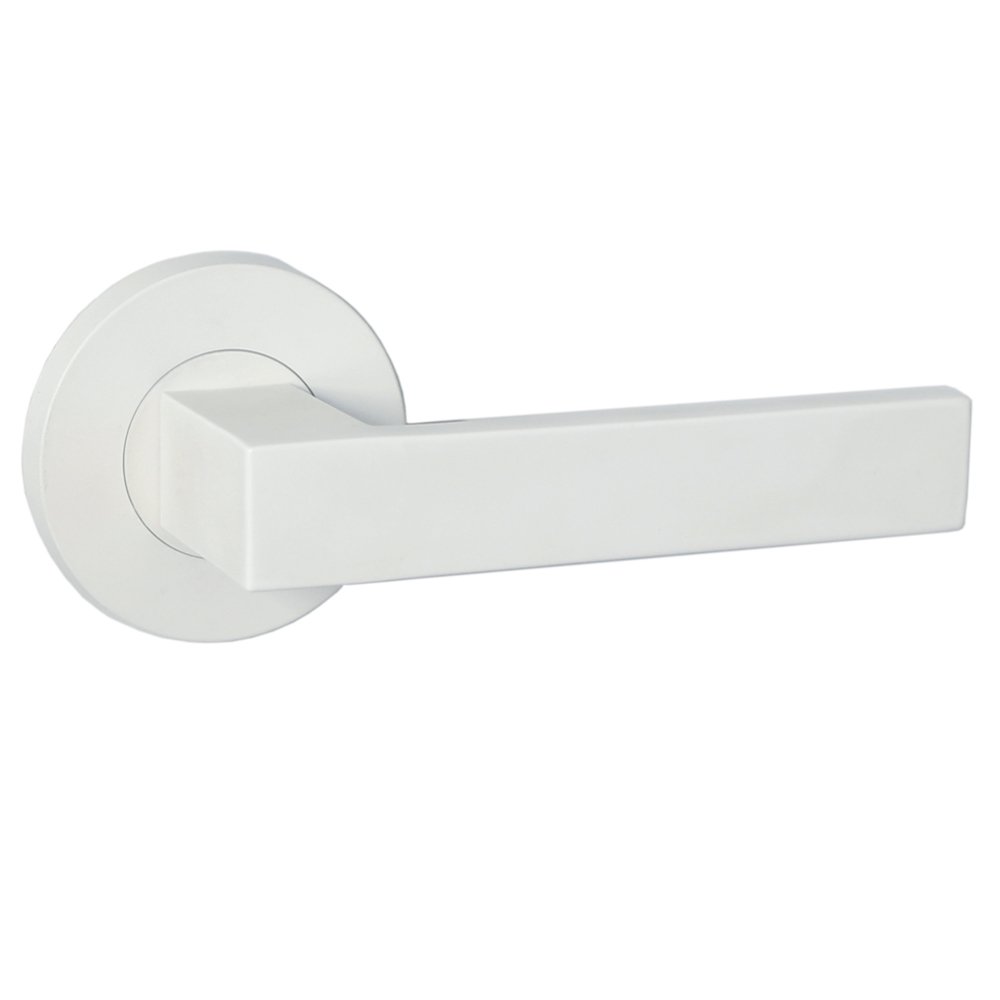

Available Finishes / Aesthetics: Elegantly finished in Satin Brass (Also available in matching Matt Black finish)And White
-
Global Trade Item Number (GTIN / Barcode): 9315198935807
Product Specifications
- Brand: Builders Choice (Austyle)
- Design Code: 43540 Series
- Product Type: All-In-One Passage & Privacy Door Lever Set
- Safety Certification: Fire Rated up to 4 Hours
- Size / Rose Diameter: 63mm
- Finish: Satin Brass (Also available in Matt Black& White)
- Base Material: High-Grade Zinc Alloy
- Internal Mechanism: Patented Stainless Steel Ball Bearing Race
- Lever Projection: 54mm
- Package Weight: 1.0088 kg
- Fixing Type: Tamper-Proof 75mm Stainless Steel Thru-Fixing Screws (Either Side)
- Latch Inclusions: Includes Multi-Function 60mm Passage/Privacy Latch
- Unit of Measure: Sold Per Pair (PR)
- Barcode (GTIN): 9315198935807
- Availability: Core Stock Item
Frequently Asked Questions & Warranty
What warranty is provided with this door lever set?
This Builders Choice architectural lever set features a premium 15-Year Mechanical Warranty directly from the manufacturer. This comprehensive warranty guarantees the internal components, spring mechanics, and structural assembly against sagging, loose movement, or mechanical failure under standard domestic and light commercial interior use.
What does a 4-Hour Fire Rating mean for this handle?
This product has undergone strict structural fire testing and is certified for up to a 4-hour fire rating on compliant fire door assemblies. This makes it an excellent choice for commercial builds, apartment entrance doors, multi-residential complexes, and high-compliance architectural projects requiring rigorous safety standards.
What does an "All-In-One Passage/Privacy" set mean?
This intelligent dual-function design eliminates the logistical hassle of buying separate passage and privacy handles for your project layout. Each box contains the flexible modular components and a multi-function 60mm latch required to configure the handle as a standard free-swinging passage lever (for hallways or living spaces) or adapt it instantly into an integrated privacy locking handle (for bedrooms and bathrooms).
Why is the patented stainless steel ball bearing mechanism important?
Unlike standard internal components that wear down, loose tension, and cause handles to rattle or droop over time, this handle utilizes a patented stainless steel ball bearing race. This drastically reduces internal metal friction, resulting in an exceptionally smooth operational feel and preventing the lever from sagging over decades of heavy daily use.
What is the benefit of the 75mm Tamper-Proof Screw fixings?
The set is supplied with heavy-duty 75mm stainless steel thru-fixing tie bolts that clamp securely completely through the door panel from either side. This robust structural anchoring mechanism stops the handle plates from twisting, pulling away from the timber, or shaking loose over time.
Will the 63mm round rose fit standard pre-existing doors?
Yes. The slightly larger 63mm round rose diameter is intentionally engineered to easily cover old standard cutouts, ring marks, or screw holes left behind by legacy door hardware, making it a perfect, clean option for modern renovation retrofits.
How should the Satin Brass finish be cleaned and maintained?
To preserve the pristine architectural finish, simply wipe the surfaces occasionally with a soft, clean, dry cloth. Never apply commercial aerosol polishes, chemical solvents, brass cleaners, or abrasive liquid scrubbers, as these will permanently degrade the protective factory coatings.
