Zanda Boston Lever Handle, Matt Black, 53mm Round Rose, Fire Rated, 15-Year Warranty

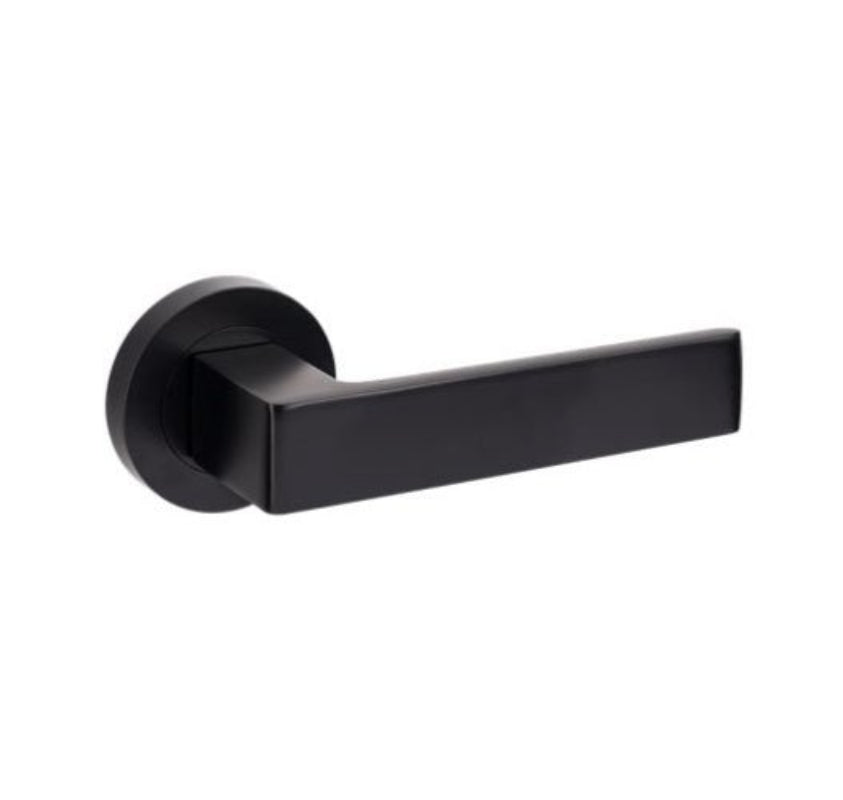

Zanda Boston Lever Handle, Matt Black, 53mm Round Rose The Zanda Boston Lever Handle is part of the Futura range, finished in Matt Black with a 53mm round rose. Available across six functions — Leverset, Passage, Privacy, Dummy, and Entrance (Key/Key or Key/Turn) — fitted using the Zanda RapidFit® through-door bolt system.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | 10080 - Boston Leverset Only | Passage | Privacy | Dummy | 10084.3 - Boston Entrance Set includes 10080 Lever set 1143 7020 & 1147 (70mm Key/Key) | 10084.4 - Boston Entrance Set includes 10080 Lever set 1143 7020 & 1148 (70mm Key/Turn) |
|---|---|---|---|---|---|---|
| Matt Black | 10080.BLK | 10081.BLK | 10082.BLK | 10083.D.BLK | 10084.3.BLK | 10084.4.BLK |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Function | Leverset only (no latch), Passage set, Integrated privacy set, Dummy set, Entrance set |
| Product code | 10080.BLK, 10081.BLK, 10082.BLK, 10083.D.BLK, 10084.3.BLK, 10084.4.BLK |

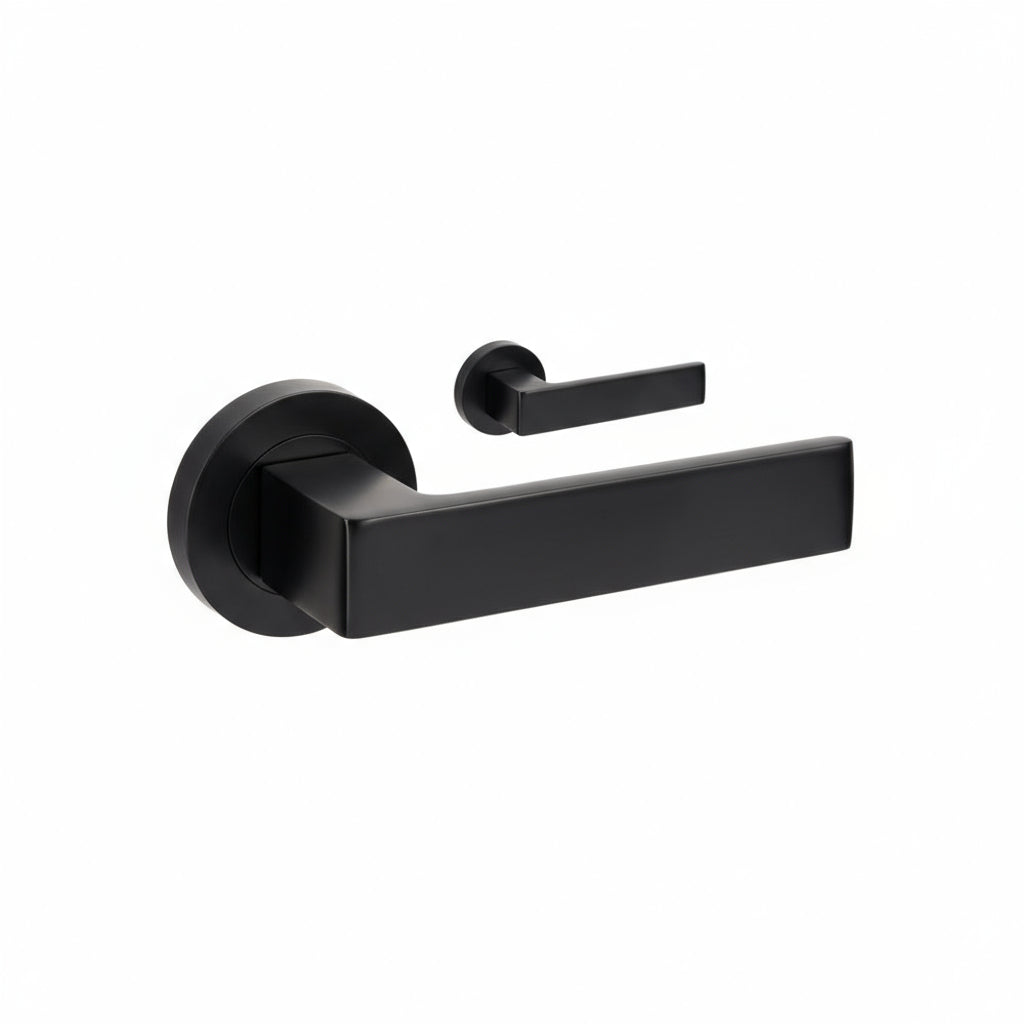

| Set 10080 | Boston Leverset Only |

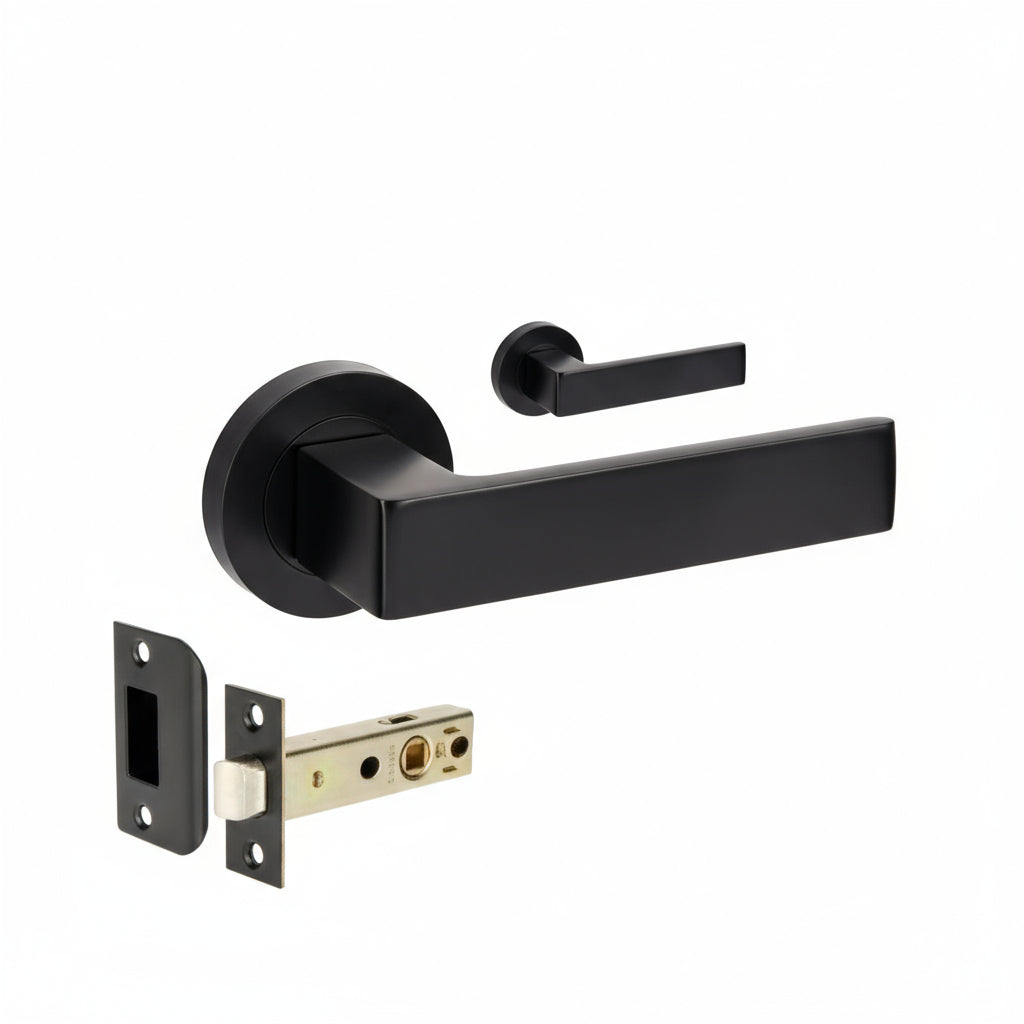

| Set 10081 | Boston Passage Set, includes 1131 latch |

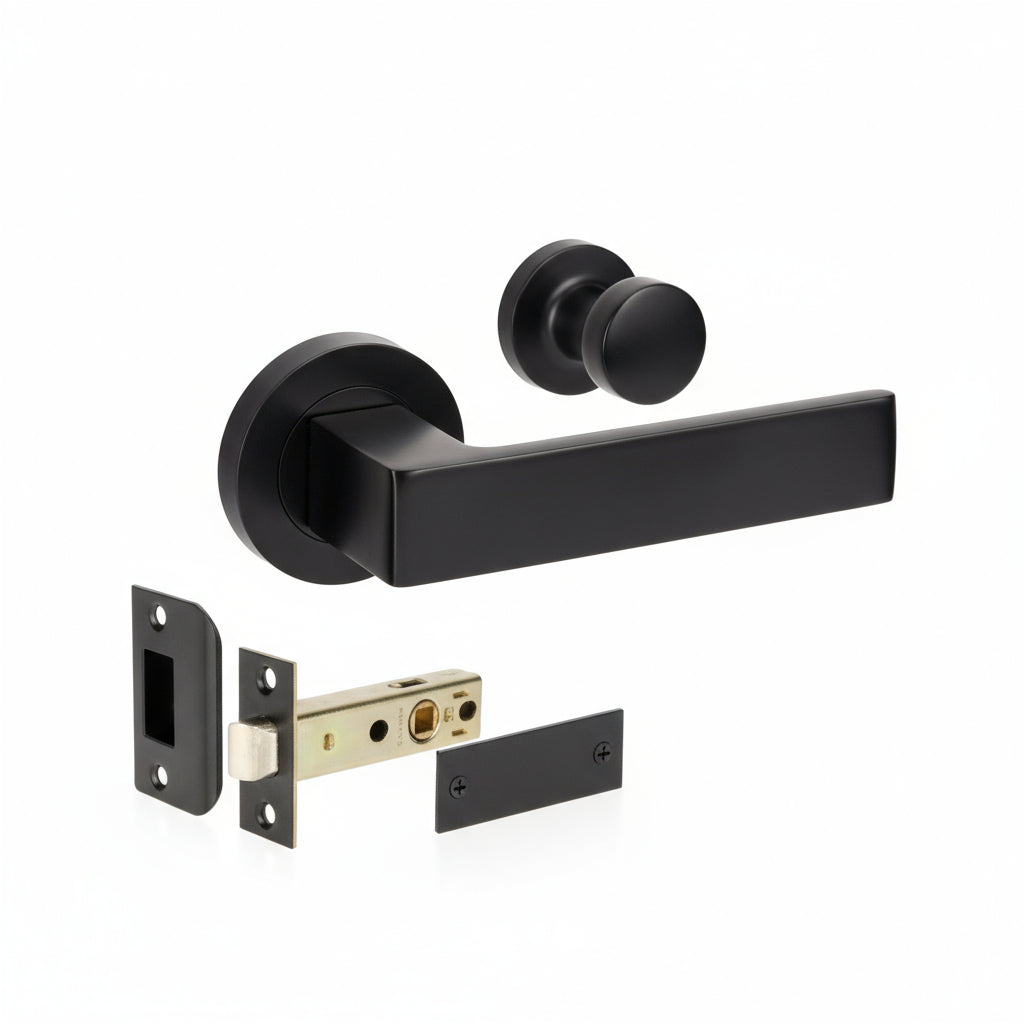

| Set 10082 | Boston Privacy Set, includes integrated privacy kit |

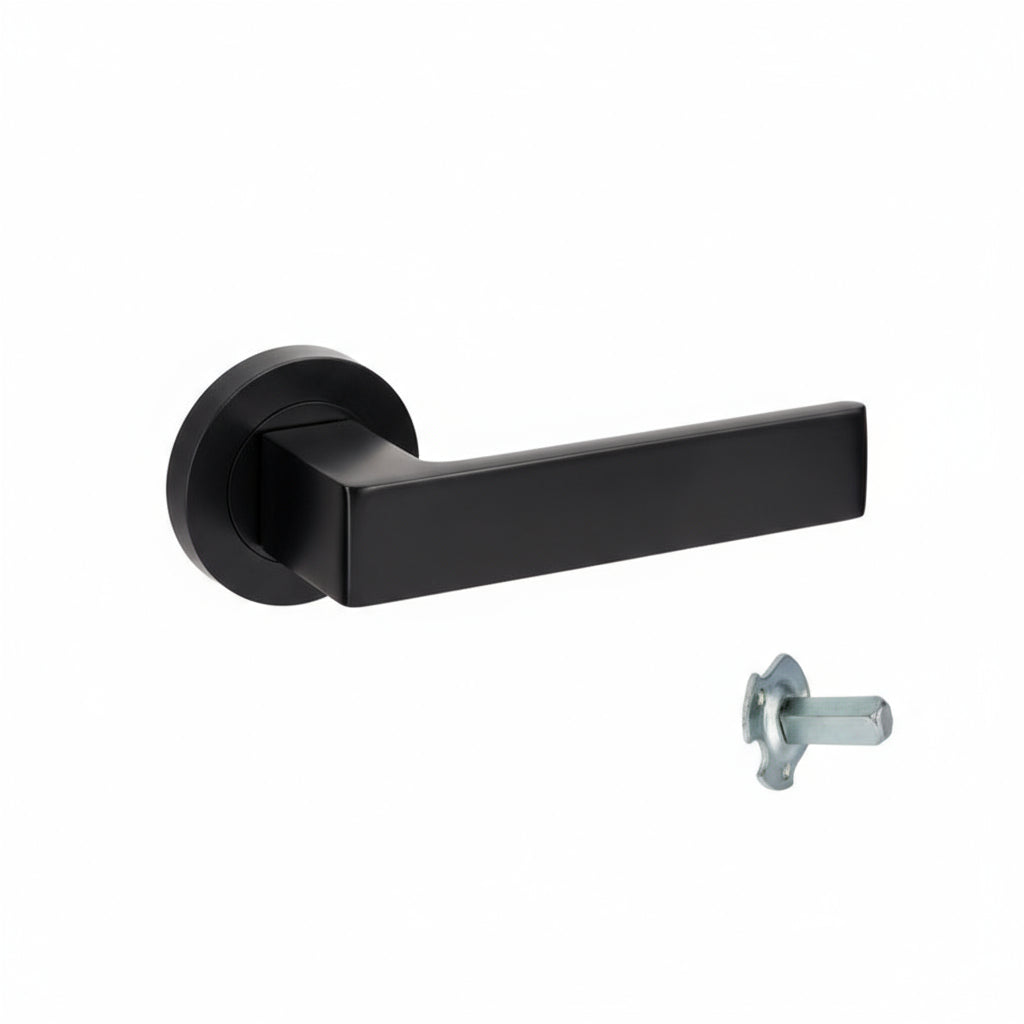

| Set 10083.D | Boston Dummy Set - Non Handed |

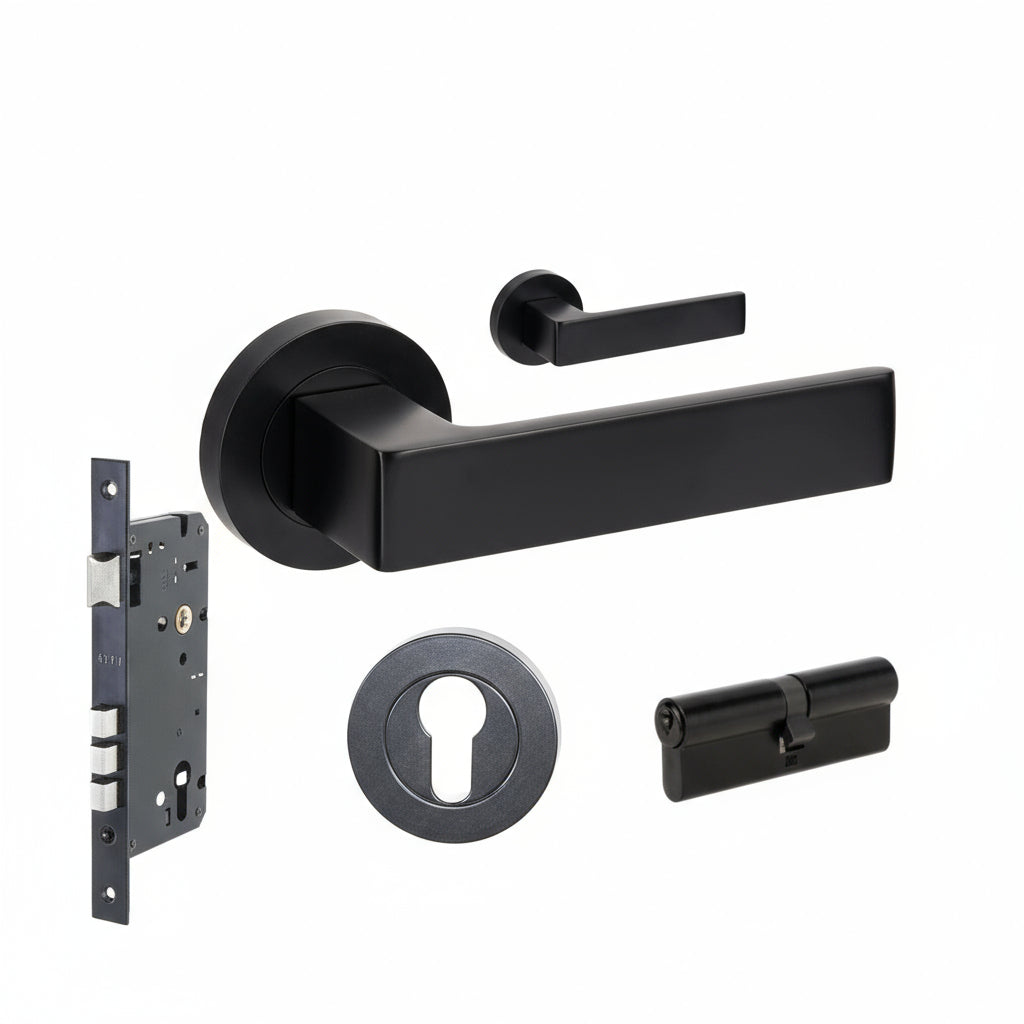

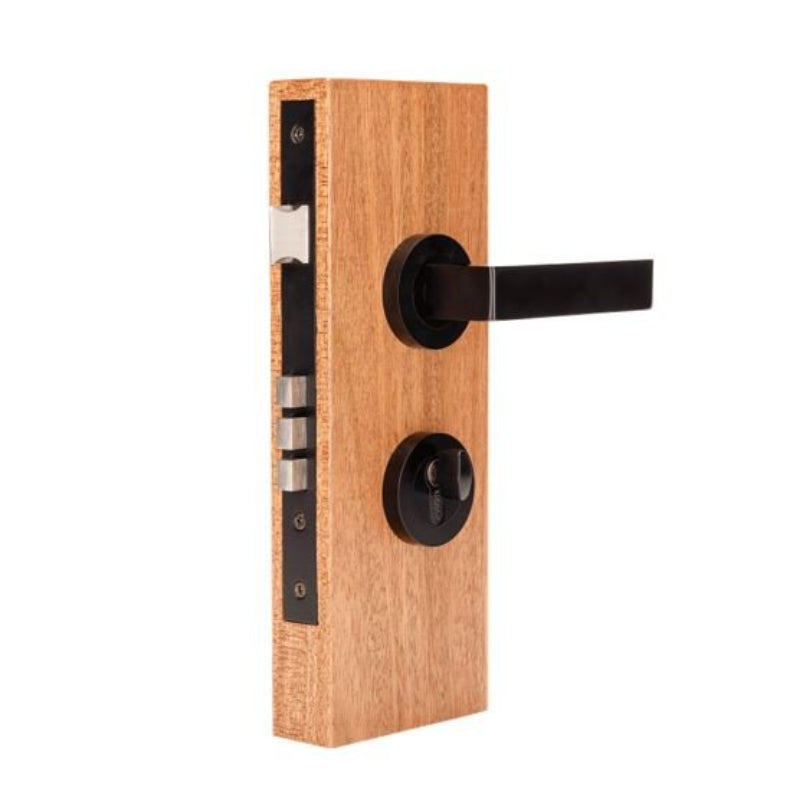

| Set 10084.3 | Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |

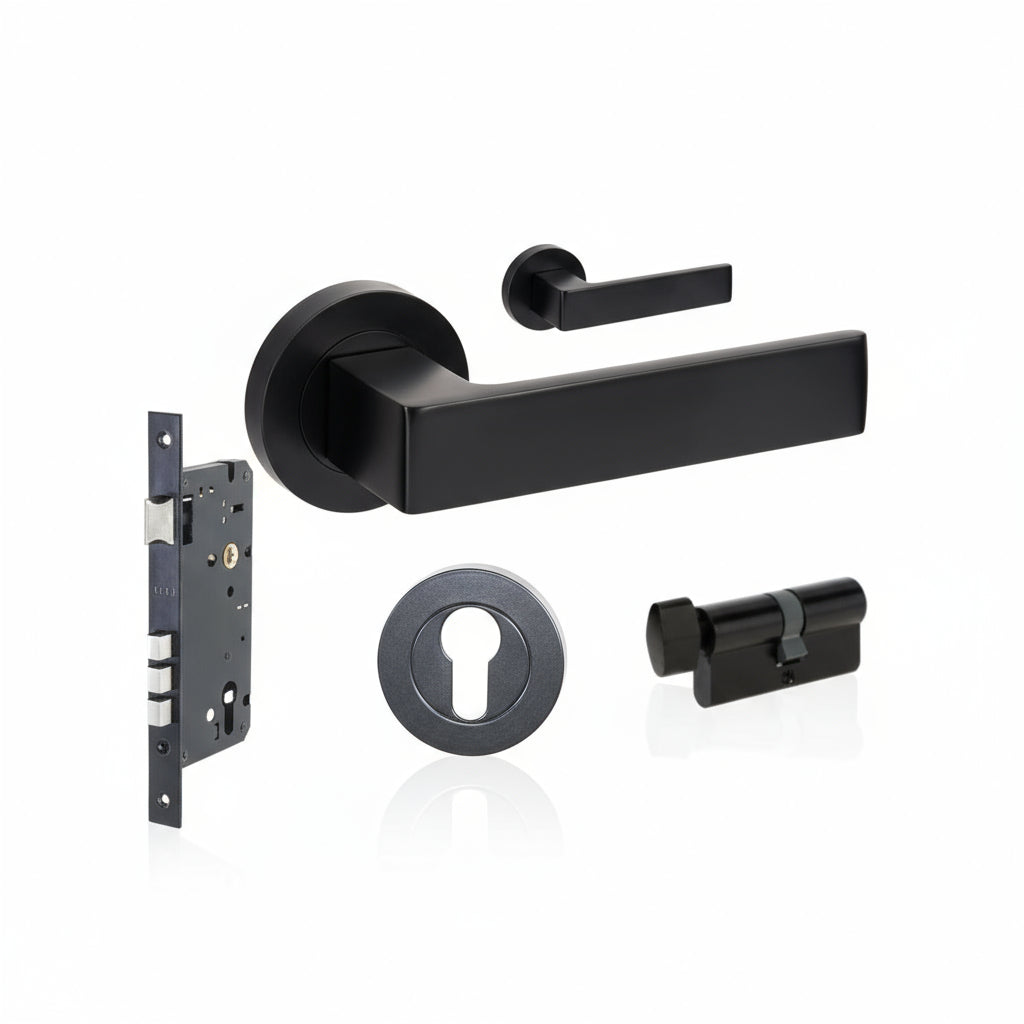

| Set 10084.4 | Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Matt Black |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Spindle hole | 25mm diameter; fixing holes 6mm, 21mm above and below spindle centre |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Projection | 10mm |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Boston Lever Handle, Matt Black, 53mm Round Rose, Fire Rated, 15-Year Warranty?
It is a Zanda door lever on round rose from the Futura range. Function: leverset only (no latch), Passage set, Integrated privacy set, Dummy set, Entrance set. Product code: 10080.BLK, 10081.BLK, 10082.BLK, 10083.D.BLK, 10084.3.BLK, 10084.4.BLK.
What does each option include?
10080: Boston Leverset Only; 10081: Boston Passage Set, includes 1131 latch; 10082: Boston Privacy Set, includes integrated privacy kit; 10083.D: Boston Dummy Set - Non Handed; 10084.3: Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 10084.4: Boston Entrance Set - includes 10080 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn).
What finishes is it available in?
This listing is finished in Matt Black. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing; Projection: 10mm.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
