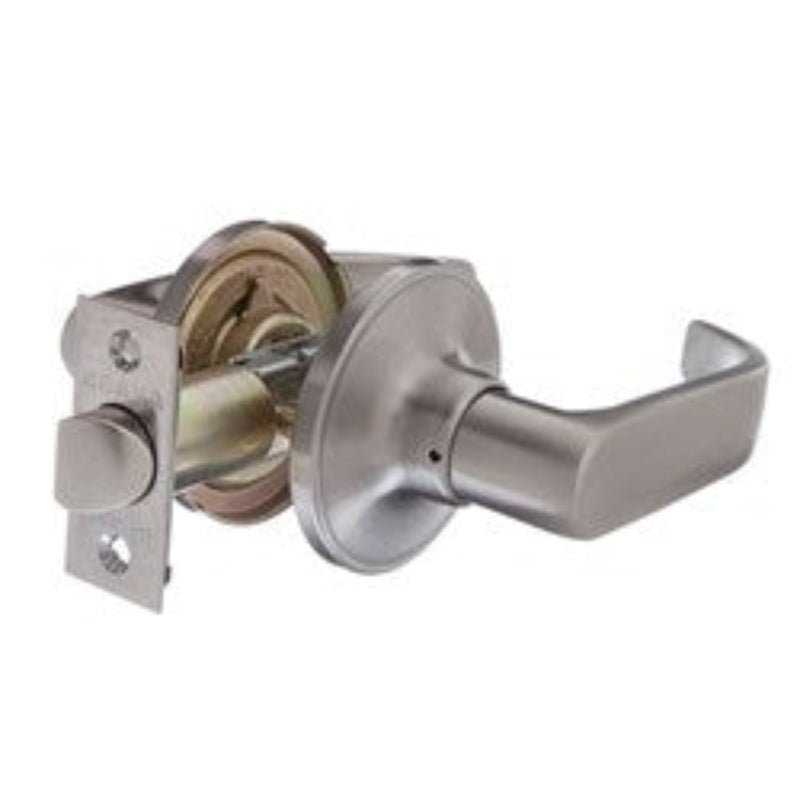

Brava Urban Ln Series Tiebolt Passage Lever Set Adjustable 60/70mm Backset Satin Stainless Steel Plate - Ln603b

lscSKU: LN603B
filler

Price:
$45

The BRAVA Urban LN Series Tiebolt Passage Lever Set is a sturdy and functional lockset designed for interior doors where no lock is required. This lockset's "Passage" function provides a simple latching mechanism with free-turning levers on both sides, making it ideal for hallways, closets, or other non-locking applications. The tiebolt design uses through-bolts to secure the levers, ensuring a rigid and long-lasting installation. The lockset features an adjustable latch that can be easily configured for either a 60mm or 70mm backset, offering broad compatibility with various door preparations. Finished with a durable Satin Stainless Steel plate, the lockset is resistant to wear and corrosion, providing a modern and elegant aesthetic. The complete set includes the lever handles, an adjustable latch, and a strike plate.

Description

BRAVA Urban LN series passage leverset. Domestic grade passage leverset.

Passage function

  • Both inside and outside levers are always free.

Additional info

Tiebolt concealed fixing.

Straight lever design with return.

Finished in satin stainless steel.

Supplied boxed (and colour coded) with mounting hardware.

Door thickness 35-51mm
Backset adjustable 60/70mm
max. Lever / knob projection
distance may not include turnsnib
53mm
Strike 70mm x 27mm x 1.2mm
Latch adjustable 60/70mm
Latch face plate 57mm x 25mm
Door handing Non-handed levers
Rose 66.5mm

Technical Specifications
Brand BRAVA
Display Pack No
Finish Satin Stainless Steel
Function Passage
Lever Shape Straight with Return
Lock Grade Domestic
Lock Type Tiebolt
Rose Diameter (in mm) 66.5
Suits Door Thickness 35 mm to 51 mm
Backset 60/70 mm Adjustable
