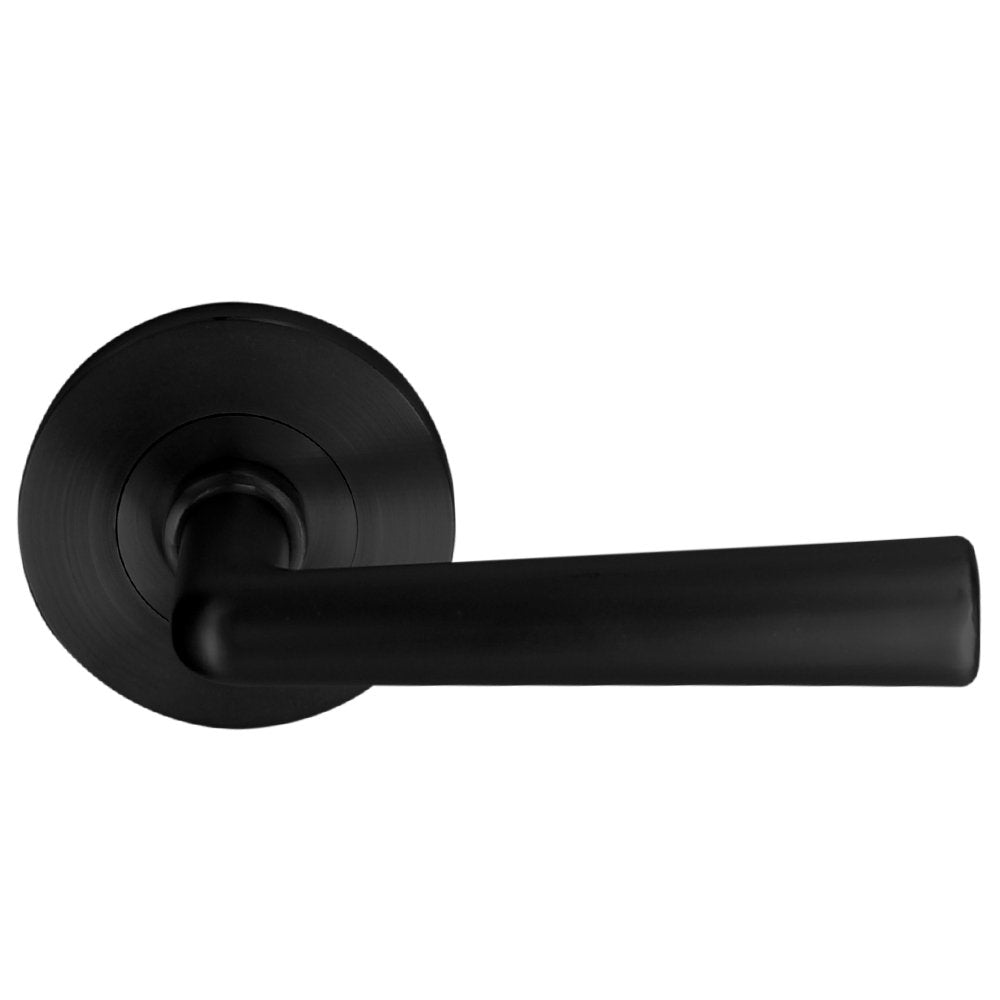

The Builders Choice 63mm All-In-One Passage and Privacy Lever Set delivers reliable dual-function performance in a single, complete kit — and is fire rated to 4 hours for peace of mind in residential and commercial applications. Engineered with a patented stainless steel ball bearing mechanism for smooth, consistent operation across thousands of cycles, it can be configured for standard passage latching or privacy locking during setup. The set includes a multi-function 60mm passage/privacy latch, making it a truly all-in-one solution — no additional latch required. The zinc alloy base construction with matt black finish offers a bold, contemporary aesthetic suited to modern and minimalist interiors. Secured with tamper-proof 75mm stainless steel screw fixings accessible from either side, and sold as a complete pair for one door. Backed by a 15-Year Mechanical Warranty.
|
Material
Zinc alloy
|
Rosette Diameter
63mm
|
Fire Rating
4 Hours
|
Warranty
15-Year Mechanical
|
| Key Features | |
| ✓ Fire rated to 4 hours | ✓ Patented stainless steel ball bearing mechanism |
| ✓ Dual-function — configurable for Passage or Privacy | ✓ Includes multi-function 60mm passage/privacy latch |
| ✓ Tamper-proof 75mm stainless steel screw fixings | ✓ Fixings accessible from either side of the door |
| ✓ 55mm projection from door face | ✓ Zinc alloy base with matt black finish |
| ✓ Sold as a complete pair for one door | ✓ 15-Year Mechanical Warranty |
| Warranty | |
| ✓ 15-Year Mechanical Warranty | Covers defects in materials and workmanship |
| ⓘ All products are covered by Australian Consumer Law. Contact us for full warranty terms and conditions. | |
| What's in the box | |
| ✓ 2 x Lever handles (inside + outside) | ✓ 2 x 63mm rosettes |
| ✓ 1 x Multi-function 60mm passage/privacy latch | ✓ Tamper-proof 75mm stainless steel screw fixings |
| ⓘ Complete all-in-one set — no additional latch or hardware required for standard installation. | |
| Bundle guide — what else do you need? | |
| Follow these steps to ensure you have everything for a complete installation. | |
| Step 1 — Choose your function during setup | |
|
Passage Door latches shut, no locking. Suited to hallways, living rooms, bedrooms and studies — any door that simply opens and closes. |
Privacy Lockable from inside with a turn-lock (snib). Suited to bathrooms, ensuites and powder rooms where internal privacy locking is required. |
| Step 2 — Check your door type | |
|
Timber door Most common for internal doors. The included tamper-proof fixings install directly into timber. Typical thickness: 35mm – 45mm. |
Aluminium door May require aluminium-specific fixings. Contact us if unsure about compatibility with your door frame profile. |
| Step 3 — Add hinges | |
| 3 hinges are recommended per door. Choose a matching finish hinge to complete the installation. Contact us for a hinge recommendation to suit your door weight and type. | |
| Hinges | ||
| Not sure which hinge to choose? Use this as your guide. | ||
|
Ball bearing Entrance and heavier doors Reduces friction, prevents squeaking and wear. |
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications. |
Loose pin Internal use only — ideal for bathrooms Door can be lifted off its hinges in an emergency, even when locked. |
| ⓘ As a general rule: 3 hinges for internal doors, 3 hinges for entrance or heavier doors. Contact us for a full hinge positioning guide. | ||
| Specifications | |
| Brand | Builders Choice |
| Product Code | TBC |
| GTIN / Barcode | TBC |
| Finish | Matt Black |
| Base material | Zinc alloy |
| Internal mechanism | Patented stainless steel ball bearing |
| Rosette diameter | 63mm |
| Projection | 55mm |
| Latch included | Multi-function 60mm passage/privacy latch |
| Fixing type | Tamper-proof 75mm stainless steel screw fix (either side) |
| Available functions | Passage | Privacy (configured during setup) |
| Fire rating | 4 hours |
| Sold as | Pair (includes 2 levers for 1 door) |
| Warranty | 15-Year Mechanical Warranty |
