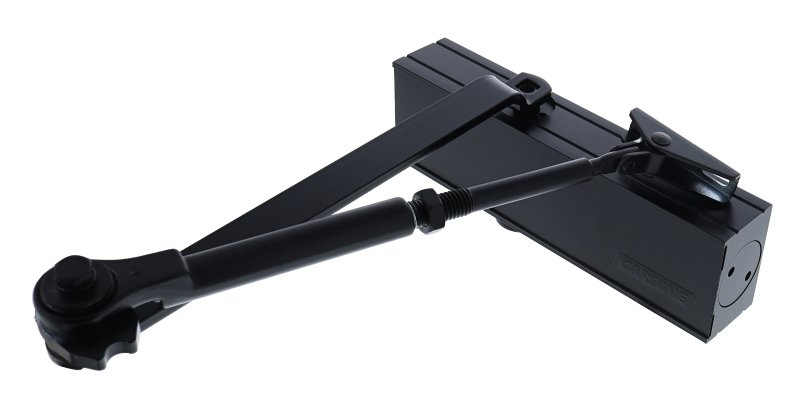

Carbine CDC-1 Radius EN2-4 40kg - 80kg door closer, Matte Black, with Hold open arm

Save 17%
CarbineSKU: DAVCDC-1HO-MB
filler

Price:
$127.51 $152.98

Documents

Brochure:

Carbine Radius Overview Brochure - PUB

Carbine Radius Customised Partner Brochure - DEA

Installation Guide:





CARBINE CDC-1 INSTALLATION TEMPLATE - PUB

CARBINE CDC-3 INSTALLATION TEMPLATE - PUB

CARBINE CDC-5 INSTALLATION TEMPLATE - PUB

CARBINE CDC-1 HOLD OPEN PARALLEL ARM TEMPLATE - PUB

CARBINE CDC-3 PARALLEL ARM TEMPLATE - PUB

CARBINE CDC-3 HOLD OPEN PARALLEL ARM TEMPLATE - PUB

CARBINE CDC-3 AND 5 DROP PLATE TEMPLATE - PUB

CARBINE CDC-1SA SLIDE ARM INSTALLATION TEMPLATE - PUB

CARBINE CDC-3SA SLIDE ARM INSTALLATION TEMPLATE - PUB

CARBINE CDC-5SA SLIDE ARM INSTALLATION TEMPLATE - PUB

CDC-5 PARALLEL ARM AND HOLD OPEN ARM TEMPLATE - PUB

CDC-1 PARRALLEL ARM TEMPLATE - PUB

Carbine Radius Rack & Pinion Installation Video - PUB

Promotional:

Radius Plates Etching Form - PUB

Carbine Radius Series Overview Video - PUB

Specifications:

CARBINE NCC 2015 E-CORE FIRE CERTIFICATE - PUB
CARBINE NCC 2015 PYROPANEL FR FIRE CERTIFICATE - PUB

CARBINE NCC 2015 PYROPANEL PANDOR FIRE CERTIFICATE - PUB

CARBINE NCC 2015 FIRECORE FIRE CERTIFICATE - PUB

User Manual:

CARBINE CDC-1 INSTRUCTIONS - PUB
CARBINE CDC-3 INSTRUCTIONS - PUB

CARBINE CDC-5 INSTRUCTIONS - PUB

CARBINE CDC-5 HOLD OPEN ARM INSTRUCTIONS - PUB

CARBINE CDC-3 HOLD OPEN ARM INSTRUCTIONS - PUB

CARBINE CDC-1 HOLD OPEN ARM INSTRUCTIONS - PUB

CARBINE CDC-3 SLIDE ARM INSTRUCTIONS - PUB

CARBINE CDC-1 SLIDE ARM INSTRUCTIONS - PUB

CARBINE CDC-5SA SLIDE ARM INSTRUCTIONS - PUB

Carbine CDC-1 Radius EN2-4 40kg - 80kg door closer, Matte Black, with Hold open arm

Width (mm): 38.5MM

Finish: Matte Black

Length (mm): 207MM

Door weight: 40kg - 80kg

Suits: EN2-4

Height (mm): 55MM

Description: Hold open arm

Model: CDC-1

Inner box qty: 1

Box quantity: 6

Carbine Rack And Pinion Door Closers

The Carbine Radius Rack & Pinion series includes four models with adjustable closing, latching speeds, and back check. They are all single-action closers with a transom mount on the push side and non-handed installation making them easy to install on inward or outward opening doors.

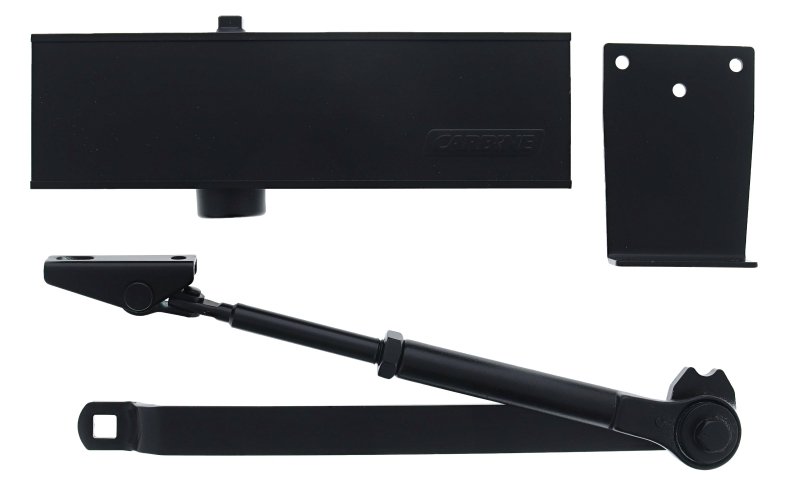

The Carbine Radius Rack & Pinion door closers are supplied with everything you need for your next installation including standard and parallel arm fittings, and timber and self-drilling metal screws.

  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminum
  • Tested to EN1154 standards
  • Cycle tested to 500,000 cycles
  • Standard arm 180 degree opening
  • Parallel arm 130 degree opening
  • Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)
  • Hold open 130 degree opening (180 degree, hold open angle 70-150 degree CDC-5)
  • Adjustable closing & latching speed
  • Adjustable back check 70 to 90 degrees
  • Thermo-constant valve
  • Surface mount
  • Transom mount on push side
  • Rack & pinion
  • Positional mounting for closer strength
  • Supplied with standard and parallel arm fittings
  • Single-action door
  • Non-handed installation
  • Supplied with timber and self-drilling metal screws
  • Constructed with extruded anodized aluminium body
  • Slide rail arms for the CDC range include the hold open insert

CDC-1

  • Adjustable power size 2-4
  • Positional fitting
  • Parallel bracket mount on size 3-4
  • Max door width 1100mm
  • Size 2 width of 850mm and weight of 40kg
  • Size 3 width of 950mm and weight of 60kg
  • Size 4 width of 1100mm and weight of 80kg
  • Body size 207mm x 60mm x 39mm
  • Available in silver and matte black finish

CDC-3

  • Adjustable power size 2-4
  • Parallel bracket mount on size 3-4
  • Max door width 1100mm
  • Size 2 width of 850mm and weight of 40kg
  • Size 3 width of 950mm and weight of 60kg
  • Size 4 width of 1100mm and weight of 80kg
  • Body size 236mm x 60mm x 39mm
  • Available in silver and matte black finish

CDC-5

  • Adjustable power size 2-6
  • Parallel bracket mount on size 3-5
  • Max door width 1400mm
  • Size 2 width of 850mm and weight of 40kg
  • Size 3 width of 950mm and weight of 60kg
  • Size 4 width of 1100mm and weight of 80kg
  • Size 5 width of 1250mm and weight of 100kg
  • Size 6 width of 1400mm and weight of 120kg
  • Adjustable delayed action
  • Body size 256.5mm x 60mm x 48mm
  • Available in silver and matte black finish
