Carbine Euro Cylinder and turn Fixed Cam, 6 pin, C4 Keyed Alike, KA3, Boxed, Satin Chrome

Carbine Cylinders use extremely high-quality pins and precision factory processes to guarantee superior quality and security than other replacement cylinders on the market. With exceptional tight tolerance levels, solid brass housing, and usable in a multitude of restricted (inline 6) systems, the Carbine Cylinders are engineered to work in a wide range of products.

Double Cylinder

• Body is made of brass with higher precision and wear resistance
• Twin cap design enables you to rekey one side at a time
• Barrels are easily removed with the Carbine quick release circlip
• Supplied with a fixed cam for European style mortice locks
• The cam on this cylinder rotates 360 degrees
• Supplied in 5 pin or 6 pin C4, suits Keyline LKW5 (Silca LW4) or Keyline LKW9 (Silca LW5) profile, also available Keyline TES5 (Silca TE2X)
• Available in keyed alike or keyed to differ
• Supplied with 2 keys
• Available in satin chrome, chrome plate, and polished brass finish
• Profile Double Cylinder Anti Bump available. Available in satin chrome, matte black and chrome plate finish

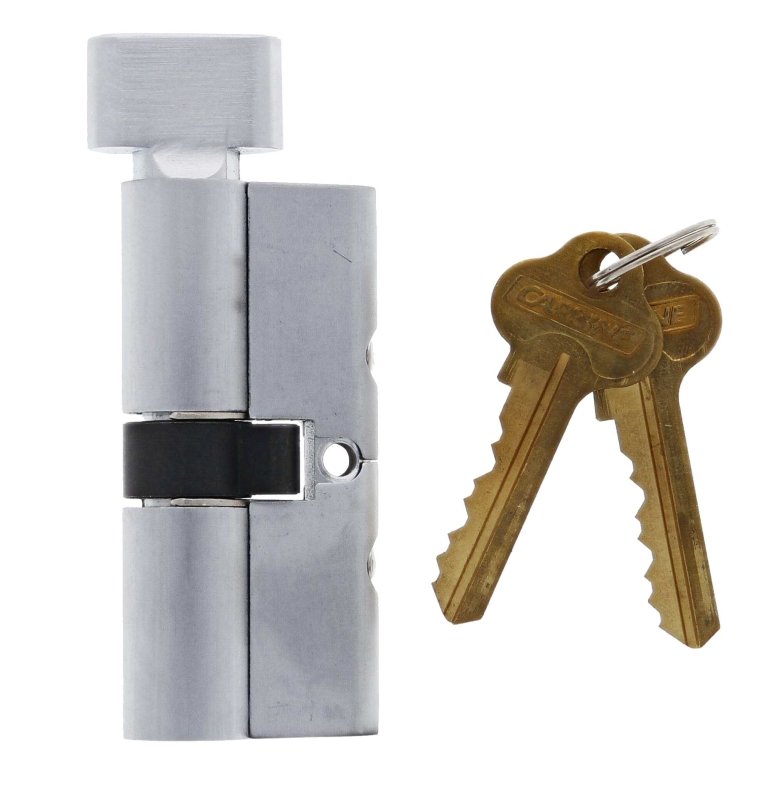

Cylinder and Turn

• Supplied with 2 keys
• Body is made of brass with higher precision and wear resistance
• Barrels are easily removed with the Carbine quick release circlip
• Supplied with a fixed cam for European style mortice locks
• The cam on this cylinder rotates 360 degrees
• LS models include a special cam to adapt for DC1 keys
• Available in keyed alike or keyed to differ
• Supplied in 5 pin or 6 pin C4, suits Keyline LKW5 (Silca LW4) or Keyline LKW9 (Silca LW5) profile, also available Keyline TES5 (Silca TE2X)
• Available in satin chrome, chrome plate, matte black and polished brass finish
• Profile Cylinder & Turn Anti Bump available (satin chrome and chrome plate finish)

Half Cylinder

• Half cylinder. Supplied with 2 keys
• Available in keyed alike or keyed to differ
• The cam on this cylinder rotates 360 degrees
• Supplied in 6 pin C4, suits Keyline LKW9 (Silca LW5) profile, can be keyed to 5 pin
• Supplied with a fixed cam for European style mortice locks
• Available in satin chrome finish
• Body is made of brass with higher precision and wear resistance
• Removable pin cap makes it easier to change pins
• Y clip design which secures the barrel is far easier to remove than the existing E clips used in profile cylinders
• 8 position adjustable cam
• Anti-drill pins installed in the main housing
