Carbine Kingston SL7000 Tiebolt Standard Passage Lever set, , Boxed, Polished Brass
Function: Passage
Finish: Polished Brass
Packaging: Boxed
Model: Standard
Inner box qty: 1
Box quantity: 12

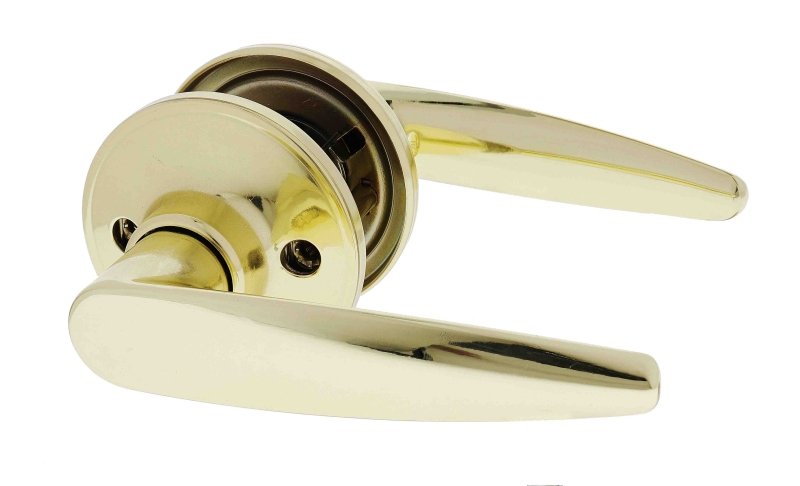

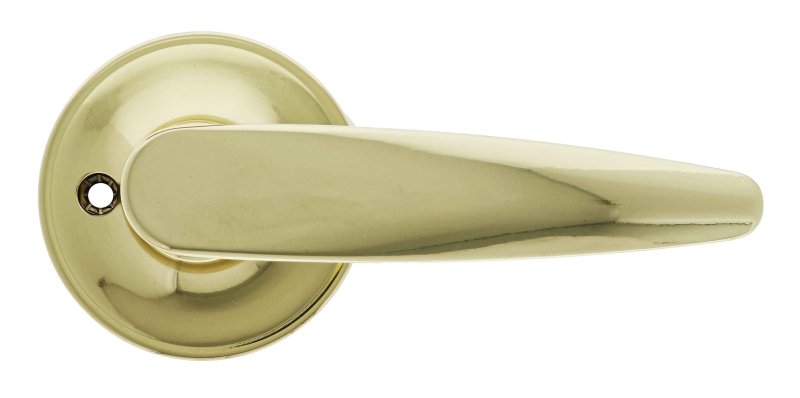

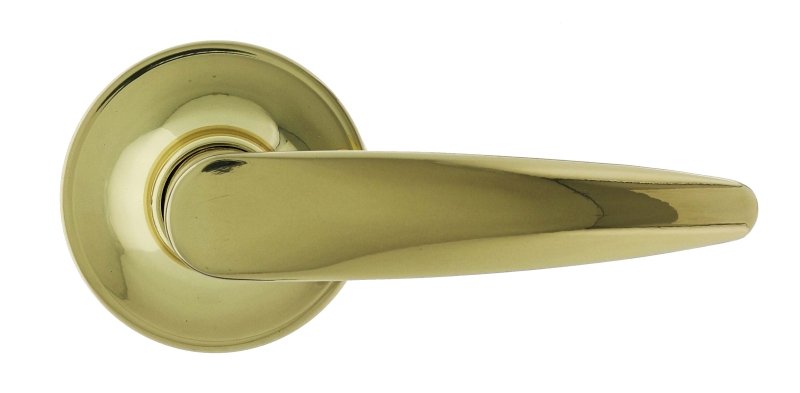

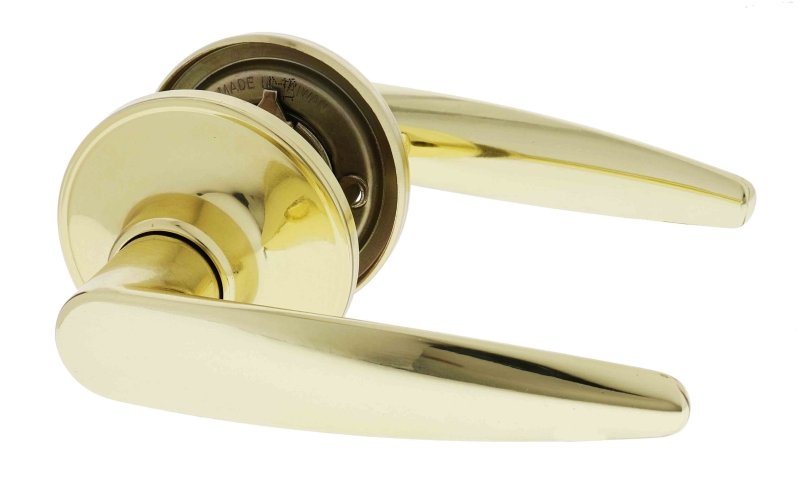

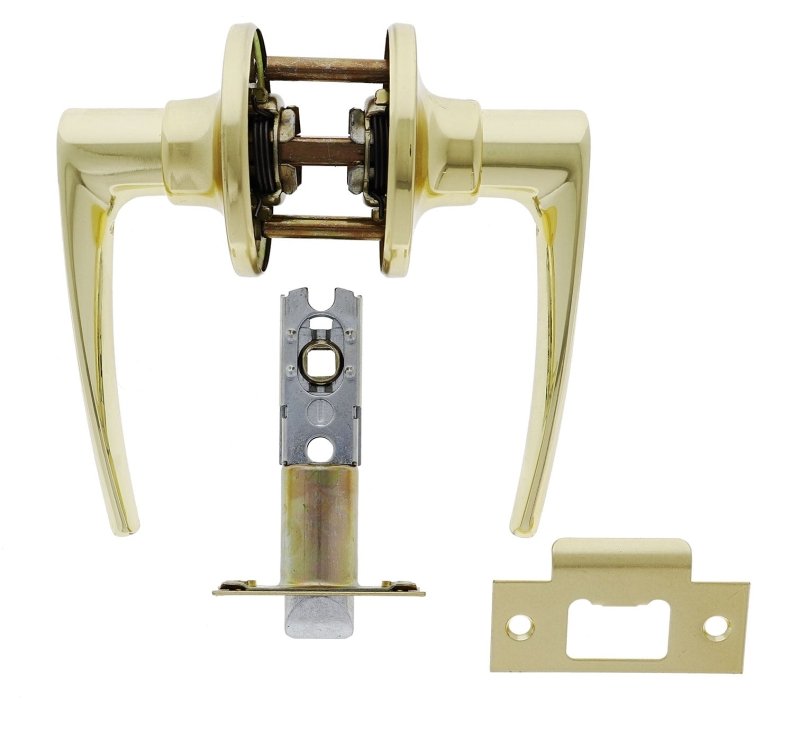

Carbine Kingston SL7000 Residential Tiebolt Leverset
The Carbine Kingston series with its sleek design, sturdy handles, exceptional functionality and finish options is a proven popular choice across installers and users.
- Tiebolt mechanism
- Adjustable 60mm - 70mm backset
- Suitable for doors 35mm - 45mm in thickness
- Brass 6 pin cylinder that allows simple rekeying and a medium level of master keying to be accepted
- Suits Keyline LKW5 (Silca LW4) profile
- Supplied with two keys per lock
- Special cylinder available with a 5 pin TES5 keyway cylinder (compatible with Gainsborough keys). Code STCYLSS-TES5
- Standard model internal lever unlocks the snib when pulling down the lever
- NK model (non auto-release) does not unlock the snib when pulling down on the internal lever
