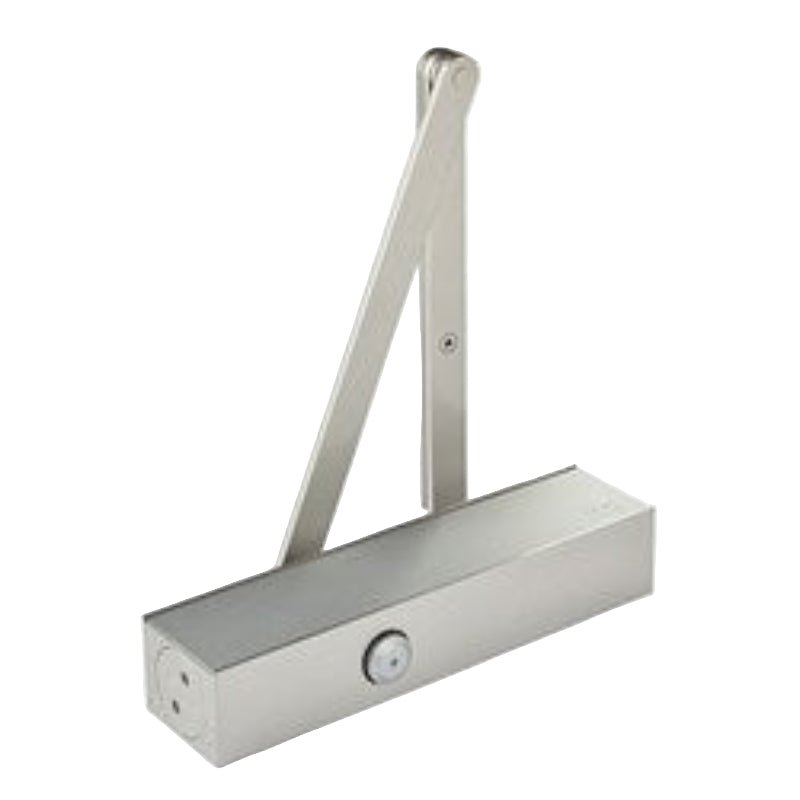

The Dormakaba TS83 is a heavy-duty, premium overhead door closer designed for a wide range of commercial and institutional applications. This versatile, non-handed unit features an adjustable closing force from EN3 to EN6, making it suitable for doors up to 1400mm wide and 120kg in weight. The closer is equipped with an adjustable backcheck function that provides a hydraulic cushion to protect the door, frame, and walls from damage if the door is opened too quickly. It also includes an adjustable delayed action feature, which allows the door to remain open for a period before closing, providing convenient access for people with prams or trolleys. This model is supplied with a parallel arm bracket, offering flexible installation on the push side of the door. Finished in a durable Silver (SIL), the TS83 is fire-rated and certified to EN 1154, making it a robust and compliant solution for fire and smoke protection doors.
Description
The DORMA TS83 EN3-6 closer is non-handed closer suitable for interior and external (outward opening) doors and can be tailored to a specific door with simple adjustment.
Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm.
Backcheck is self regulating or adjustable by valve and delayed action is also adjustable.
Suitable for standard doors installation up to 1400 mm (W).
Suitable for fire doors.
| Dimensions | Weight |
| 245 mm (L) x 46 mm (W) x 60 mm (H) | 1.7kg |
