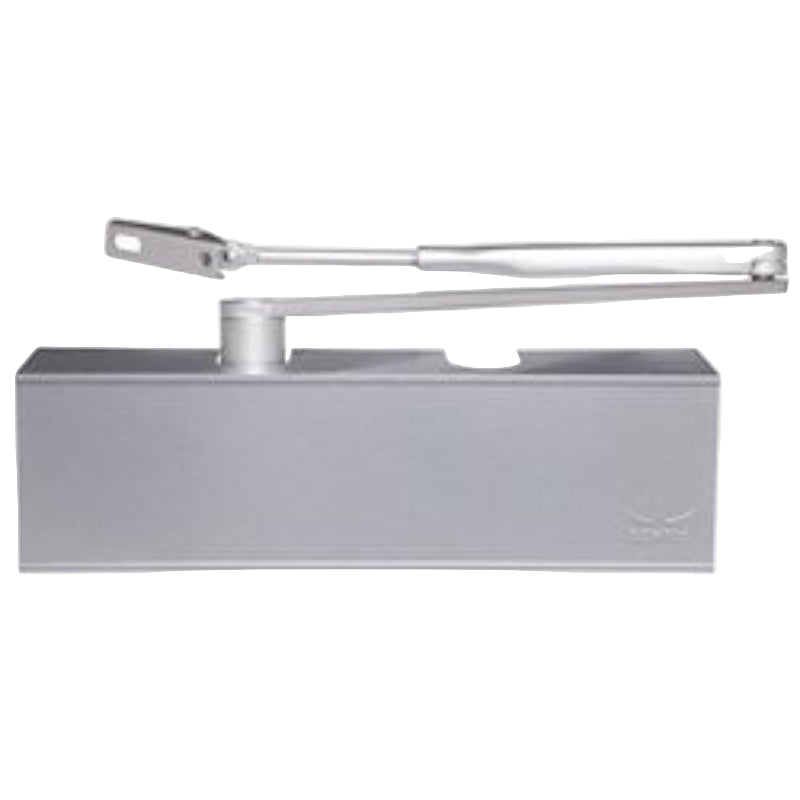

Dormakaba Door Closer Ts72 En2-4 Sil (22252301) Description DOTS7200SIL

lscSKU: DOTS7200SIL
filler

Price:
$380

The Dormakaba TS72 is a premium surface-mounted door closer designed for a wide range of light-to-medium-duty doors in commercial and residential settings. This versatile and reliable closer features an advanced cam-action mechanism, which provides a light and smooth opening force, making it an excellent choice for doors that require easy access for all users. The non-handed unit is universally suitable for both left and right-hand doors and has an adjustable closing force between EN2 and EN4, accommodating door widths up to 1100mm. The unit's two independent valves allow for precise control over closing and latching speeds, while its thermal valve ensures consistent performance across various temperatures. Finished in a durable Silver (SIL), the TS72 is also fire-rated and CE-marked, making it a safe and compliant solution for fire and smoke protection doors.

Description

The DORMA TS72 standard closer is non-handed closer suitable for all common doors and does not require a mounting backplate. With backcheck, adjustable latching action and adjustable closing speed of 180° - 15° and 15° - 0° via 2 separate valves.

Suitable for installation on doors up to 1100mm (W). With parallel arm fixing, the closing force is approximately 20 Nm for doors up to 950mm.

Approved to AS1905 Part 1 fire resistant doors.

Finished in silver.

Dimensions Weight
232mm (L) x 45mm (W) x 68mm (H) 1.2kg

Technical Specifications
Brand DORMAKABA
Adjustable Closing Speed Yes
Adjustable Latching Speed Yes
Finish Silver
Has Backcheck Yes
Has Delay Action No
Has Holdopen No
Has Slide Arm No
Parallel Arm Bracket Included Yes
Spring Strength EN2-4
Fire Rated Yes
