Dormakaba Furniture Narrow Square End Plate Concealed Fix with Cylinder Hole and Noosa Lever SSS - 6400/30 SSS DO640030SSS

lscSKU: DO640030SSS
filler

Price:
$71

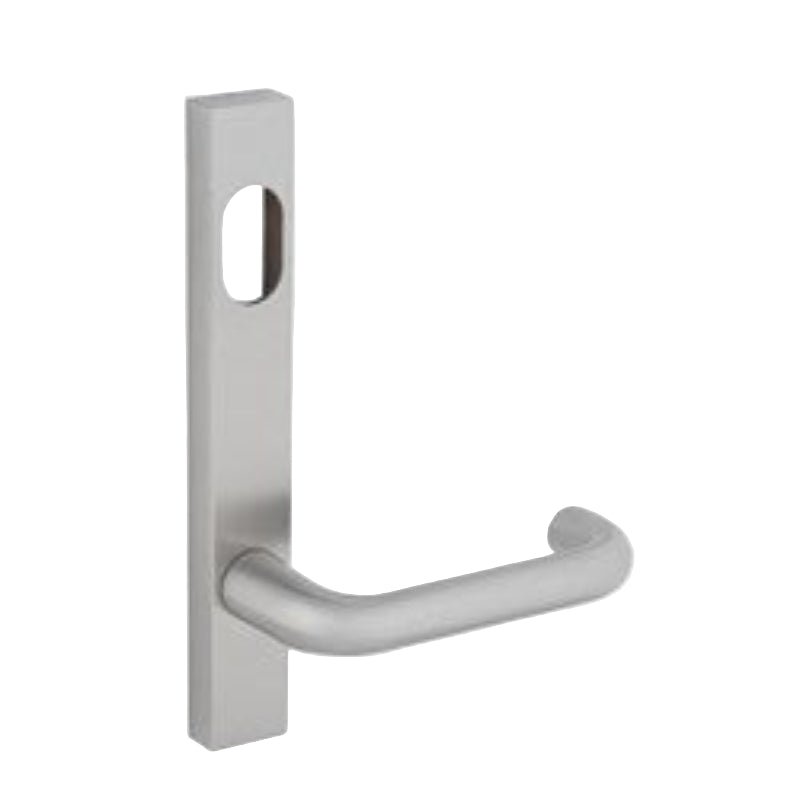

The Dormakaba 6400/30 SSS door furniture is a premium leverset designed for narrow stile doors found in both commercial and residential applications. This set features the stylish and ergonomic "Noosa" lever, which is compliant with accessibility standards (AS1428.1). The lever is mounted on a slim, square-ended plate measuring 185mm x 26mm with a concealed fixing design for a clean and seamless installation. The plate includes an oval cylinder hole, making it suitable for use with a lockset that accepts an oval cylinder. Constructed from high-quality, marine-grade 316 stainless steel with a Satin Stainless Steel (SSS) finish, this leverset offers superior corrosion resistance, durability, and a modern aesthetic, even in harsh environments.

Description

dormakaba 6400 series 316 grade stainless steel exterior narrow square end plate furniture.

Designed for use with dormakaba DKSB2212SSS series locks.

firerated-icon BCA AS1428.1 -2009 compliant leversets.

  • Narrow exterior square end plate.
  • Cylinder hole with Noosa 30 series lever.
  • Disabled access AS1428.1 compliant lever.
  • Manufactured using 316 corrosion resistant solid stainless steel.
  • Concealed fixing.
  • Plate size 185 x 26 x 12.7 mm.
  • Plates are designed to fit back to back.
  • Suits door thickness from 32-50 mm.
  • External plates supplied with fixing screws.
  • Screw fixing centres 160 mm.
  • Finished in satin stainless steel.
Technical Specifications
Brand DORMAKABA
AS1428.1 Compliant Lever (AS1428.1CO) Yes
Finish Stainless Steel
Internal / External External
Material Stainless Steel
Grade of Stainless Steel 316
Plate Has A Lever Yes
Plate Has Oval Cylinder Hole Yes
