Dormakaba Furniture Square End Plate Concealed Fix with Cylinder Hole and Noosa Lever SSS - 6600/30 SSS DO660030SSS

lscSKU: DO660030SSS
filler

Price:
$69

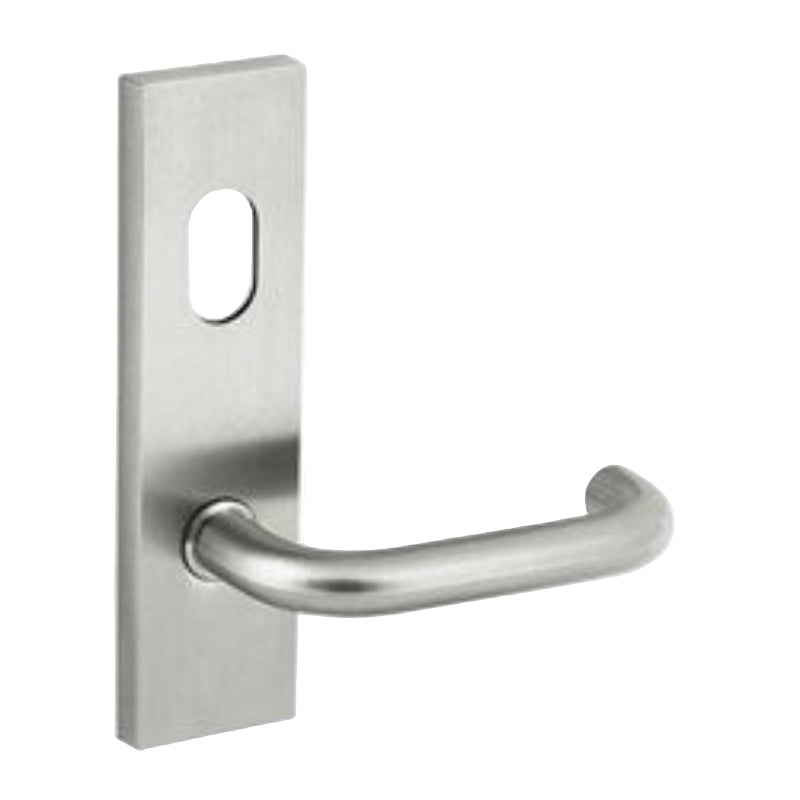

The Dormakaba 6600/30 SSS door furniture is a premium leverset designed for standard timber doors, offering a stylish and functional locking solution. This set features the popular and ergonomic "Noosa" lever, which is compliant with accessibility standards (AS1428.1). The lever is mounted on a modern square-ended plate measuring 165mm x 40mm with a concealed fixing design for a clean and professional aesthetic. The plate includes an oval cylinder hole, making it suitable for use with a mortice lock that accepts an oval cylinder. Constructed from high-quality, marine-grade 316 stainless steel with a Satin Stainless Steel (SSS) finish, this leverset offers superior corrosion resistance, durability, and a modern aesthetic, making it an excellent choice for a variety of commercial and residential doors.

Description

dormakaba 6600 series 316 grade stainless steel exterior square end plate furniture.

Designed for use with dormakaba DKMS2602SSS series locks.

firerated-icon BCA AS1428.1 -2009 compliant leverset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

  • Rectangular exterior square end plate.
  • Cylinder hole with Noosa 30 series lever.
  • Disabled access AS1428.1 compliant lever.
  • Manufactured using 316 corrosion resistant solid stainless steel.
  • Concealed fixing.
  • Plate size 165 x 45 x 10 mm.
  • Plates are designed to fit back to back.
  • Suits door thickness from 32-50 mm.
  • External plates supplied with fixing screws.
  • Screw fixing centres 148 mm.
  • Fire rated.
  • Finished in satin stainless steel.
Technical Specifications
Brand DORMAKABA
AS1428.1 Compliant Lever (AS1428.1CO) Yes
Finish Satin Stainless Steel
Plate Size Square End
Plate Type External
Fire Rated Yes
Material 316 Stainless Steel
Grade of Stainless Steel 316
Plate Has A Lever Yes
Plate Has Oval Cylinder Hole Yes
