Zanda Duke Lever Handle Ember Bronze | Futura Range | 4 Functions

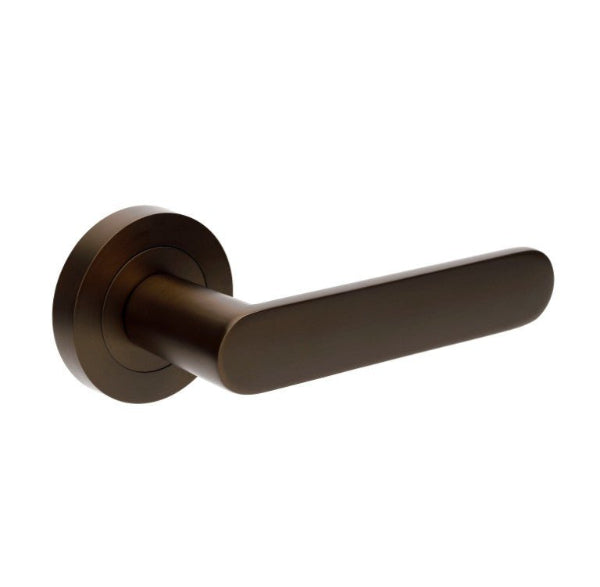

Zanda Duke Lever Handle Ember Bronze | Futura Range | 4 Functions The Zanda Duke Lever Handle in Ember Bronze is part of the Futura Range — a contemporary door hardware solution engineered for modern residential and commercial interiors. Through-door bolt fixing ensures the handle stays square over time without twisting. Available in four functions to suit every door application from hallways to bathrooms. Backed by a 15-year mechanical warranty.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Ember Bronze | 10094.4.EB |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Function | Passage set, Integrated privacy set, Dummy set, Entrance set, Separate privacy set |
| Product code | 10090.EB, 10091.EB, 10092.EB, 10093.D.EB, 10094.3.EB, 10096.EB, 10094.4.EB |
| Set 10090 | Duke Leverset Only |
| Set 10091 | Duke Passage Set, includes 1131 latch |
| Set 10092 | Duke Privacy Set, includes integrated privacy kit |
| Set 10093 | Duke Dummy Set - Non Handed |

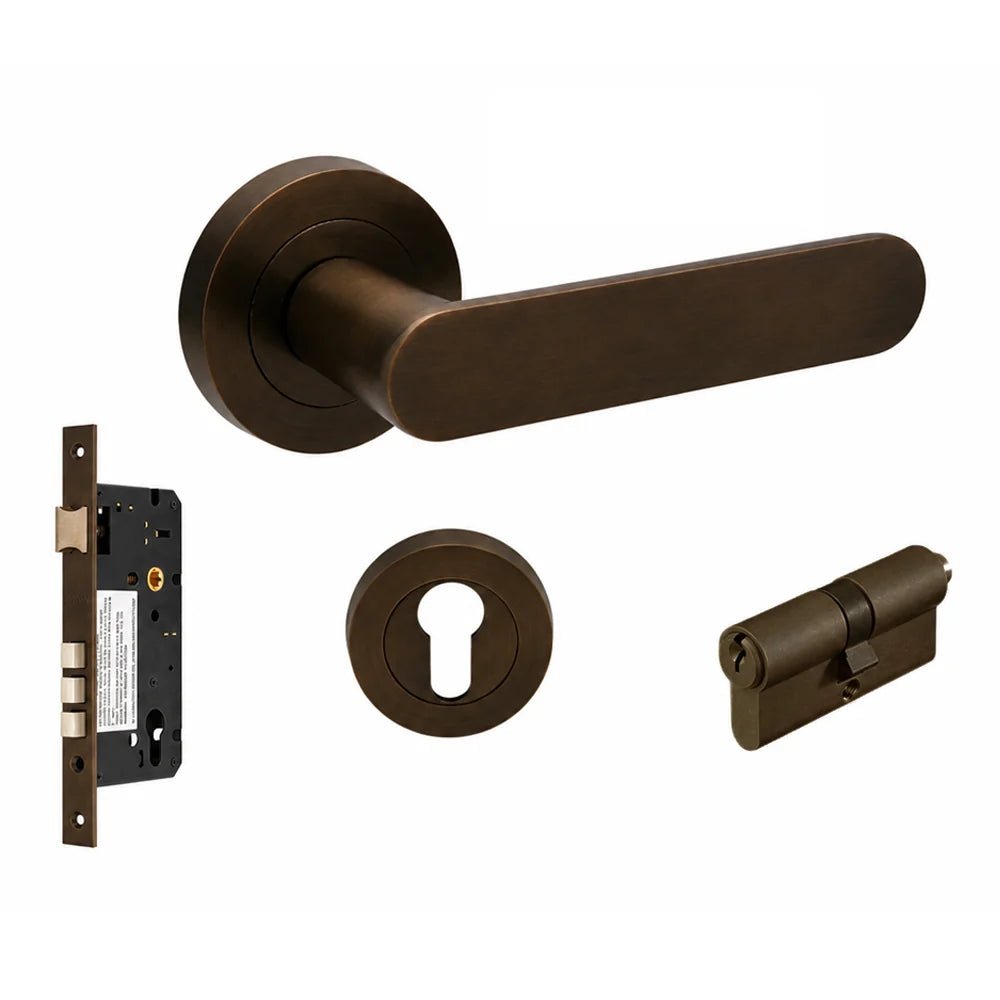

| Set 10094.3 | Duke Entrance Set, includes 10090 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |

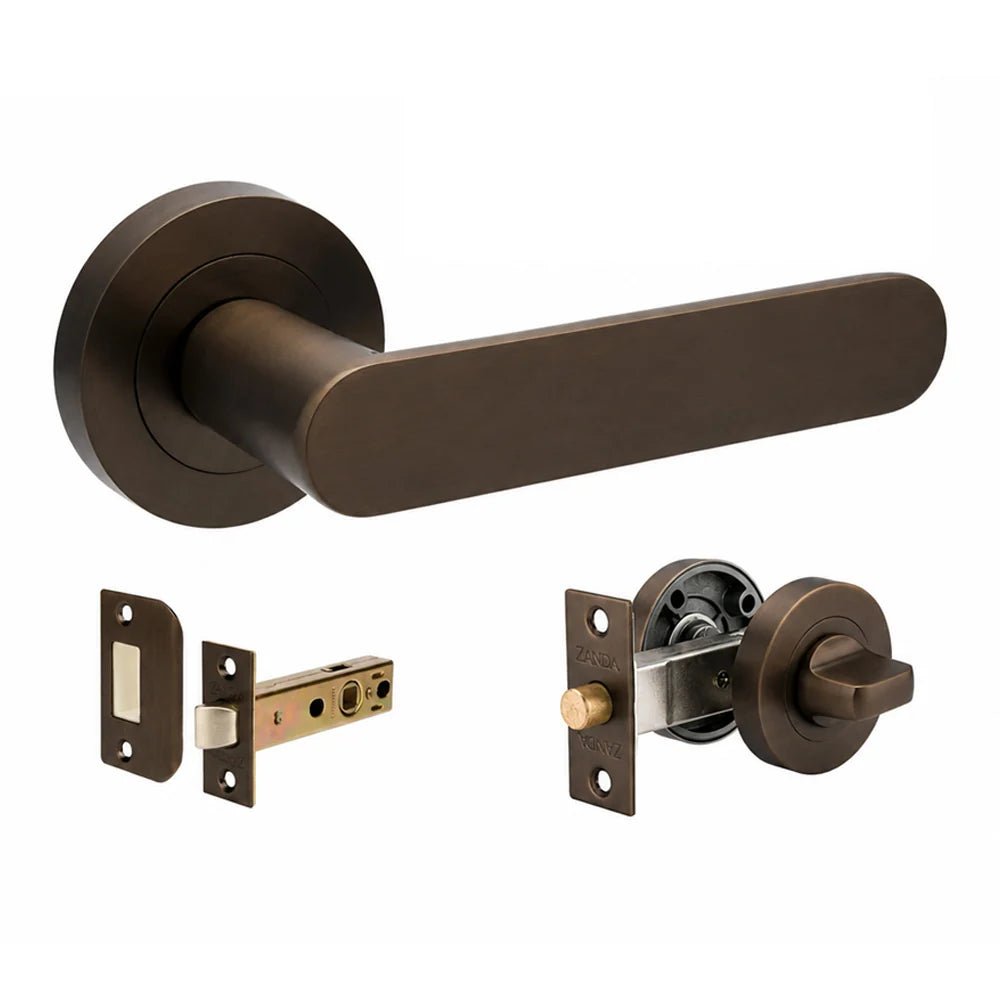

| Set 10096 | Duke Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release) |

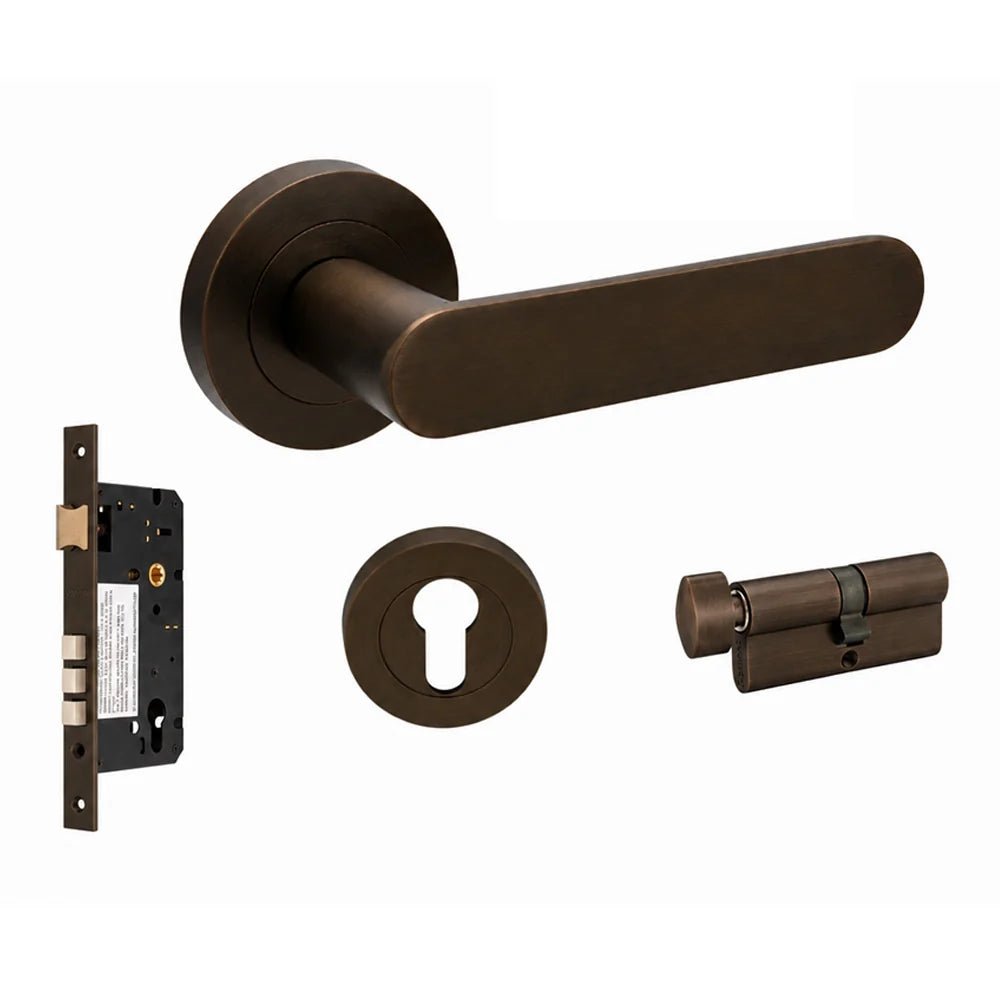

| Set 10094.4 | Duke Entrance Set, includes 10090 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Ember Bronze |
| Material | Solid Brass |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Spindle hole | 25mm diameter; fixing holes 6mm, 21mm above and below spindle centre |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Duke Lever Handle Ember Bronze?
It is a Zanda door lever on round rose from the Futura range, made from solid brass. Function: passage set, Integrated privacy set, Dummy set, Entrance set, Separate privacy set. Product code: 10090.EB, 10091.EB, 10092.EB, 10093.D.EB, 10094.3.EB, 10096.EB, 10094.4.EB.
What does each option include?
10090: Duke Leverset Only; 10091: Duke Passage Set, includes 1131 latch; 10092: Duke Privacy Set, includes integrated privacy kit; 10093: Duke Dummy Set - Non Handed; 10094.3: Duke Entrance Set, includes 10090 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 10096: Duke Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release); 10094.4: Duke Entrance Set, includes 10090 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn).
What finishes is it available in?
This listing is finished in Ember Bronze. Other Zanda finishes may be available — contact us to check.
What are the dimensions?

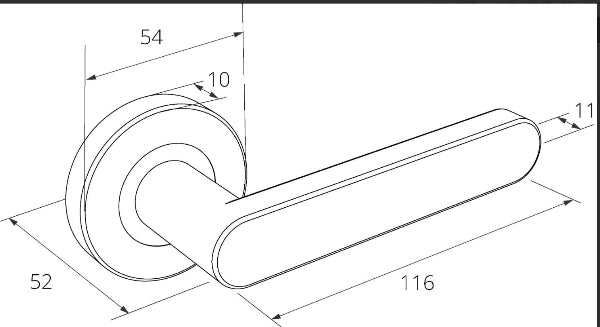

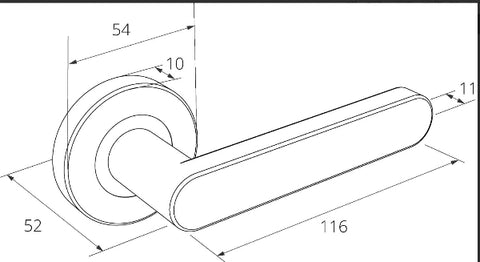

Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
