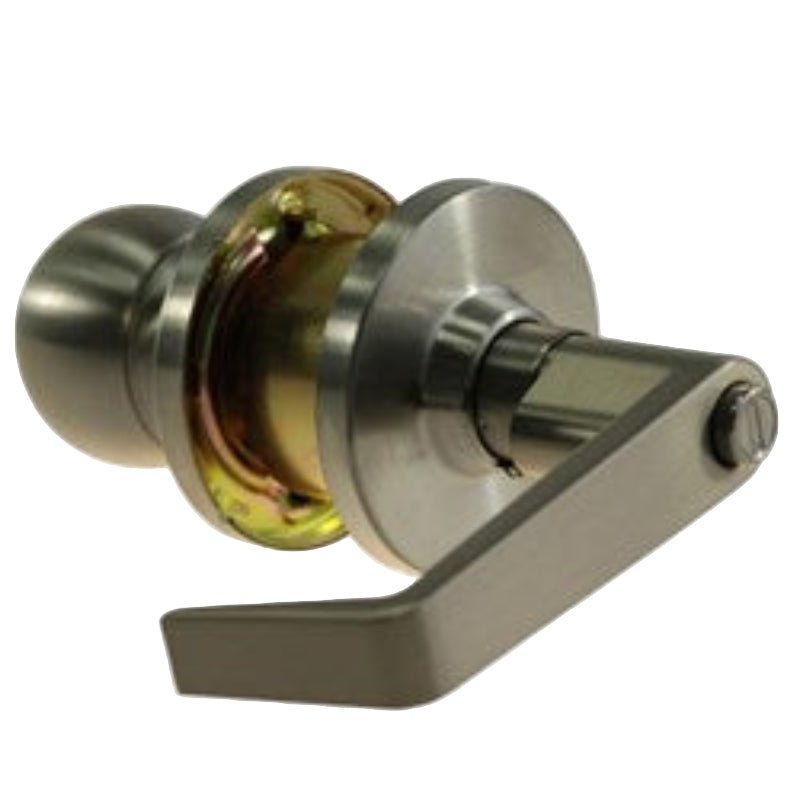

The BRAVA Metro EL Series Entrance Lockset is a robust, commercial-grade lockset designed for entry doors. This cylindrical lockset features a key-operated cylinder on the exterior for secure access and a convenient push-button locking mechanism on the interior, allowing for quick locking from the inside. The lockset is supplied with a fixed 70mm backset, a common dimension that ensures a straightforward installation. Finished in a modern and durable Satin Chrome, the lockset is resistant to wear and corrosion, making it a long-lasting and aesthetically pleasing addition to your door hardware. The complete set includes the lock body, a 70mm backset latch, a strike plate, and a set of keys, making it a comprehensive solution for your door security needs.
Description
BRAVA Metro EL3000 series entrance knob/leverset. Commercial grade.
AS1428.1 – 2009 compliant internal lever ONLY. Check with your certifier for compliance.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Entrance function
- Outside key unlocks outside knob.
- Inside lever free at all times, push button locks outside knob.
Additional info
- Cylindrical fixing.
- External spherical knob.
- Internal lever.
- Anti-rotation fixing points.
- Silca LW5 profile 6 pin cylinder.
- Incorporates the popular PD 8221 barrel.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in satin chrome.
| Door thickness | 35-45mm |
| Backset | 70mm |
|
max. Lever / knob projection distance may not include turnsnib |
54mm (lever), 68mm (knob) |
| Strike | 70mm x 28mm x 2mm |
| Latch | 70mm |
| Latch face plate | 57mm x 25mm |
| Cylinder | LW5 profile |
| Door handing | Non-handed knobs/levers |
| Rose | 75mm |
