Flush Bolt-Narrow-Surface Mt-Nylon 'D' Tip Satin Chrome
Flush Bolt-Narrow-Surface Mt-Nylon 'D' Tip Satin Chrome

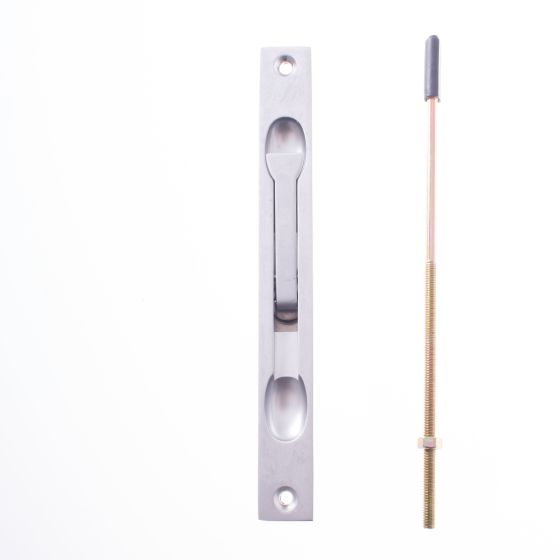

The Yale flush bolt range is used for safe bolting of aluminium doors and windows. The 7mm diameter plated steel rod provides high security and is activated by a strongly constructed die-cast zinc body and operating lever with comfortable finger grip.
Overview
The flush bolts are supplied as standard with a 300mm rod threaded for 150mm along its length, enabling the rod to be factory trimmed to suit varying window/ door sizes. A rod guide is supplied for fitting inside the door/window frame. Suitability The surface mounted model with a narrow width faceplate is suitable for bi-fold windows and doors as well as doors and can be mounted either on the face or the leading edge of the stile. Suitable for use on aluminium doors and windows. Fixing Surfaces Metal Finish Satin Chrome plate RES-FLY-046_1217NZ_Flush_Bolts
Key Features
- A rod guide is supplied for fitting inside the door/window frame.
- Nylon D tip included
Specifications
| Brand | Yale |
| Series | Bolt |
| Type | Bolt |
| Finish | Satin Chrome |
Available Finishes
Swatch colours are indicative only. Living finishes develop a natural patina over time.
Warranty
Mechanical parts against defects in materials and workmanship.
Electronic and electrical components are covered for 3 years; keys for 12 months from purchase.
Batteries, finishes/cosmetic damage, normal wear and tear, misuse or improper installation, and corrosion from coastal or salt-air environments (roughly within 5 km of the coast) unless the product is designed for such areas. Manufactured by ASSA ABLOY Australia Pty Ltd and covered under Australian Consumer Law. Yale warranty →
Documents
What is the Flush Bolt-Narrow-Surface Mt-Nylon 'D' Tip Satin Chrome?
It is a Yale bolt, finished in satin chrome.
What's the difference between passage, privacy and entrance?
Passage: The latch operates from both sides at all times and does not lock. Ideal for hallways, walk-in robes, linen cupboards and other doors that don't need privacy or security. Privacy: Locks from the inside with a turn or push button, with an emergency release on the outside. Designed for bathrooms, ensuites and bedrooms. Entrance: Key-lockable from the outside and released by a turn or button on the inside. Suited to main entry doors and any door that needs keyed security.
What finish is it?
This listing is satin chrome. Other finishes are available as separate listings.
What warranty does it come with, and how do I care for it?
Yale products carry a 10-year mechanical warranty; electronic and electrical components are covered for 3 years and keys for 12 months. Batteries, cosmetic/finish damage and coastal corrosion are excluded. Manufactured by ASSA ABLOY Australia under Australian Consumer Law.
