Fsh Fes112 High Security Custodial Electric Strike 2 Hour Fire Rated

lscSKU: LSCFES112
filler

Price:
$6,833.85

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options

Intro

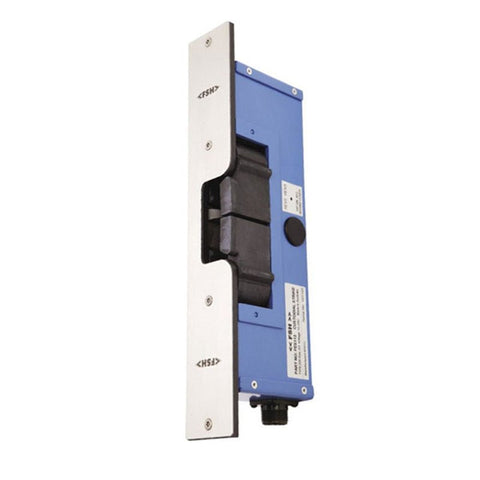

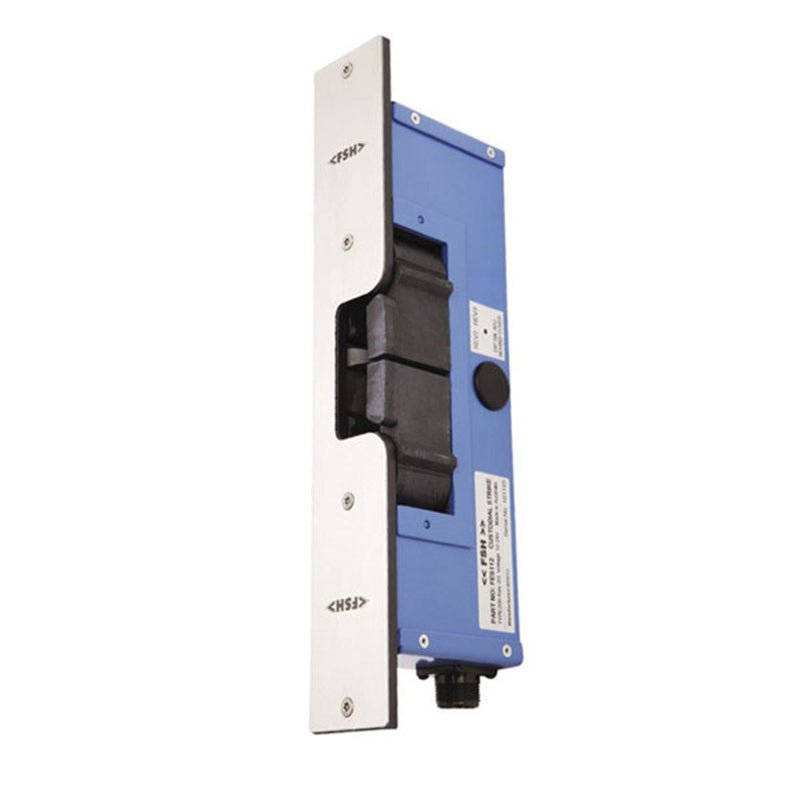

The Fsh Fes112 High Security Custodial Electric Strike is a purpose-built locking solution engineered for extreme security environments such as detention centres, correctional facilities, and high-risk institutional applications. Designed to work in conjunction with heavy-duty double throw deadlocks, it delivers exceptional holding strength, advanced monitoring, and certified fire-rated performance.


Key Features & Benefits

  • Function: High security custodial electric strike for controlled environments

  • Security Level: Designed for detention, correctional, and custodial facilities

  • Fire Rating: Certified fire rated up to 2 hours and SCEC approved

  • Holding Strength: Ultra-high holding force exceeding 1000kg

  • Monitoring: Full monitoring including strike jaws, lock position, door position, and anti-tamper

  • Voltage: Multi-voltage operation from 12V DC to 30V DC

  • Operation: Power to open fail secure configuration

  • Construction: Hardened tooling steel body with molybdenum-coated hardened jaws

  • Intelligence: Smart electronics allow one lock to suit multiple applications

  • Reliability: Designed for continuous duty in harsh and high-risk conditions


Specifications

  • Brand: Fsh

  • Product Code: Fes112

  • Working Voltage: 12V DC to 30V DC

  • Current Draw: 1.5A @ 12V DC, 0.75A @ 24V DC

  • Holding Strength: More than 1000kg

  • Locking Mode: Fail secure (power to open)

  • Fire Rating: 2 hours

  • Security Approval: SCEC endorsed

  • Monitoring Type:

    • Strike jaw position

    • Lock bolt status

    • Door position (reed switch)

    • Strike plate removal (anti-tamper)

  • Change Over Configuration: Series 2 to Series 3 selectable

  • Rockwell Hardness: 60 Rockwell

  • Operating Temperature Range: -20°C to +60°C

  • Deadbolt Compatibility:

    • Bolt extension: 33–36mm

    • Bolt width: 10–17mm

    • Bolt height: 57–59mm

  • Construction Materials:

    • Body: High-grade hardened tooling steel

    • Jaws: Molybdenum-coated hardened steel

  • Fail Safe Selection: Not field selectable


Available Finishes

  • Stainless Steel


Applications

This electric strike is ideal for detention centres, correctional facilities, police holding cells, government institutions, and high-security custodial doors where maximum holding strength, strict access control, and advanced monitoring are mandatory.


Installation & Inclusions

  • Supplied with Series 2 to Series 3 change-over switch

  • Designed to operate with heavy-duty double throw deadlocks

  • Integrated door position and anti-tamper monitoring

  • Built for new installations and high-security retrofit projects


Why Choose Fsh Fes112 Electric Strike?

The Fsh Fes112 stands at the top tier of custodial locking solutions, combining extreme holding strength, intelligent monitoring, hardened steel construction, and certified compliance. It is engineered specifically for environments where failure is not an option.

Frequently Asked Questions
Q1. What type of product is this?
👉 This is a high-security custodial electric strike designed for detention and correctional facilities requiring maximum holding strength and monitoring.

Q2. What makes this electric strike suitable for custodial environments?
👉 It features hardened steel construction, over 1000kg holding strength, full monitoring, anti-tamper detection, and fail secure operation for maximum security.

Q3. Does this electric strike support door position monitoring?
👉 Yes, in Series 3 configuration it includes door position monitoring via a reed switch and will not secure until the door is fully closed.

Q4. Is the Fsh Fes112 fire rated and approved for government use?
👉 Yes, it is fire rated to 2 hours and SCEC approved, making it suitable for regulated and government-controlled environments.

Q5. What warranty applies to this electric strike?
👉 This electric strike is covered by the manufacturer’s warranty against defects in materials and workmanship, subject to correct installation, normal use, and proper maintenance conditions.
