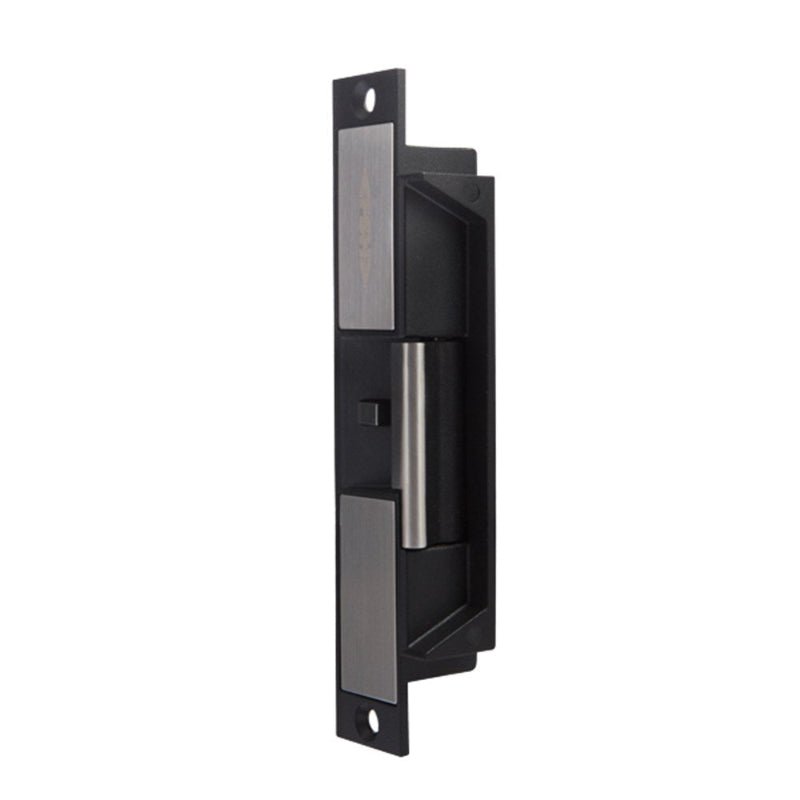

Fsh Fes90Mp Electric Strike Fully Monitored 35Kg Pre Load 4 Hour Fire Rated

lscSKU: LSCFES90MP
filler

Price:
$530.70

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options

Intro

The Fsh Fes90Mp Electric Strike is a patented, motorised high-security EcoStrike™ designed for demanding access control environments. With advanced 35kg pre-load capability, ultra-low power sleep mode, and full monitoring, it delivers exceptional performance, durability, and energy efficiency for fire-rated hinged doors.


Key Features & Benefits

  • Function: Motorised high-security electric strike

  • Monitoring: Door latch monitoring (DSS) and lock status monitoring (LSS)

  • Fire Rating: Certified fire rated up to 4 hours on approved door assemblies

  • Pre-Load Capability: Operates reliably under up to 35kg side pressure

  • Energy Efficient: Low-power sleep mode for reduced energy consumption

  • Material: Stainless steel construction for long-term durability

  • Voltage: Multi-voltage operation from 10V DC to 30V DC

  • Operation: Power to lock or power to open, field selectable

  • Safety Design: Supplied with 10mm strike lip; optional 5mm extension lip included

  • Strength & Endurance: Over 1300kg holding strength and tested to 1.5 million cycles


Specifications

  • Brand: Fsh

  • Product Code: Fes90Mp

  • Working Voltage: 10V DC to 30V DC

  • Current Draw: 300mA @ 12V DC (action mode), 15mA @ 12V DC (sleep mode)

  • Monitoring Type: Door latch and lock status monitoring

  • Holding Strength: Over 1300kg

  • Pre-Load Rating: Operates under pre-load up to 35kg

  • Fire Rating: 4 hours

  • Locking Mode: Fail safe or fail secure, field selectable

  • Lip Extension: Pre-drilled for optional extension lips

  • Latch Compatibility: Suitable for 18mm latch with a 3mm door gap

  • Construction: Stainless steel, motorised locking mechanism

  • Weather Resistance: Suitable for weather-exposed installations

  • Durability: Tested to 1.5 million cycles with full pre-load


Available Finishes

  • Stainless Steel


Applications

This electric strike is ideal for government facilities, high-security commercial buildings, data centres, hospitals, and fire-rated door assemblies where heavy pre-load conditions, continuous duty, and low power consumption are critical.


Installation & Inclusions

  • Self-adhesive installation template

  • Tab mounting kit included

  • Optional extension lips supplied

  • Solenoid suitable for continuous power operation

  • Designed for hinged doors with security or fire requirements


Why Choose Fsh Fes90Mp Electric Strike?

The Fsh Fes90Mp combines motorised locking technology, extreme pre-load tolerance, full monitoring, and eco-efficient operation in one advanced solution. It is purpose-built for installations where reliability, compliance, and long service life are non-negotiable.

Frequently Asked Questions
Q1. What type of product is this?
👉 This is a fully monitored, motorised high-security electric strike designed for advanced access control systems.

Q2. What does 35kg pre-load capability mean?
👉 It means the strike can release even when up to 35kg of side pressure is applied to the door, caused by door weight, air pressure, or user force.

Q3. Is this electric strike energy efficient?
👉 Yes, it features a low-power sleep mode that significantly reduces energy consumption when idle.

Q4. Is the Fsh Fes90Mp fire rated?
👉 Yes, it is certified fire rated up to 4 hours when installed on approved fire-rated door assemblies.

Q5. What warranty applies to this electric strike?
👉 This electric strike is covered by the manufacturer’s warranty against defects in materials and workmanship, subject to correct installation, normal use, and proper maintenance conditions.
