Intro

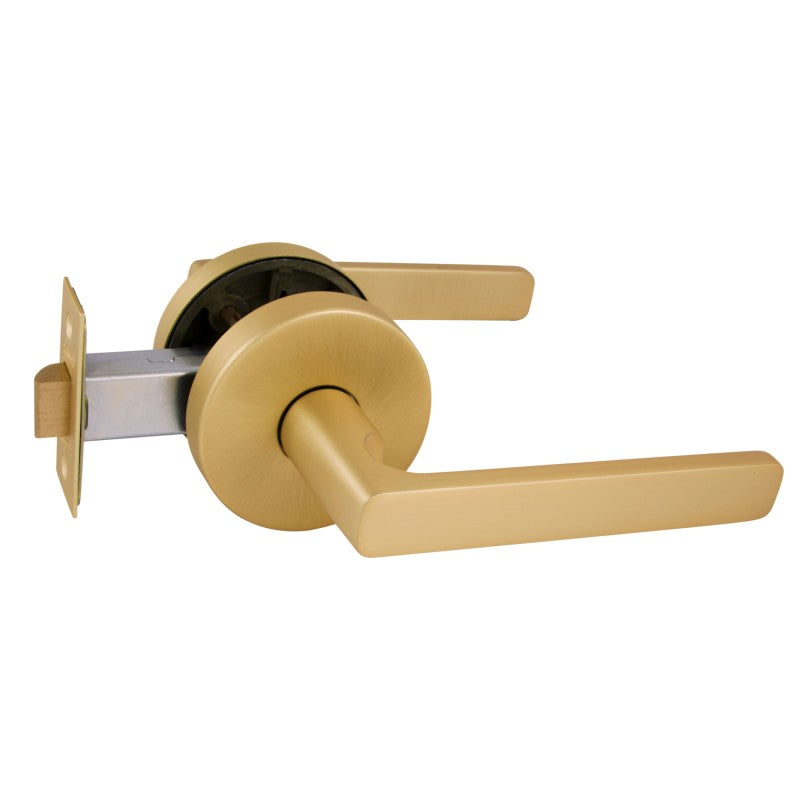

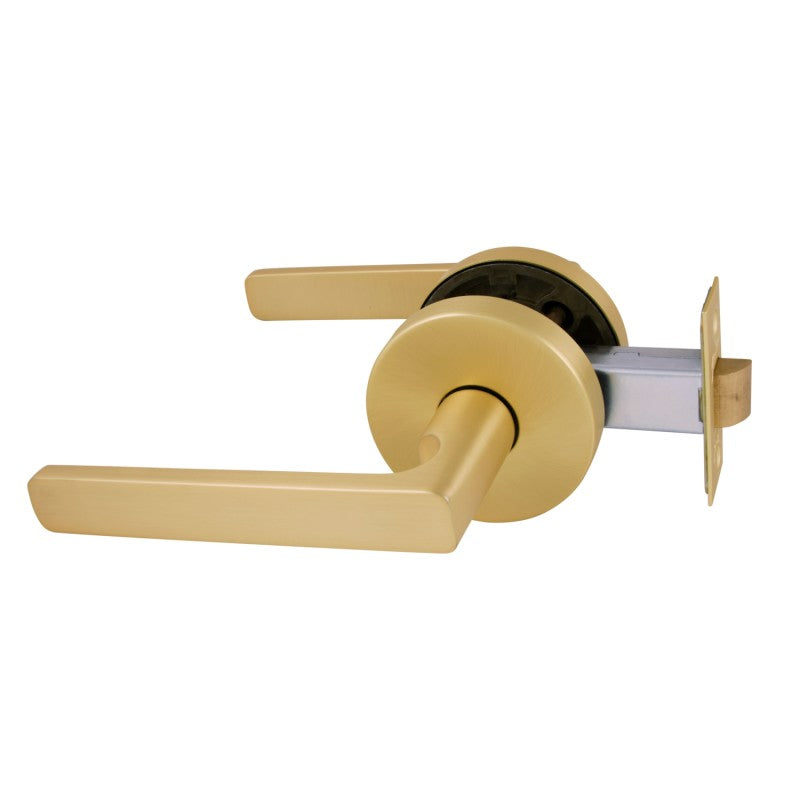

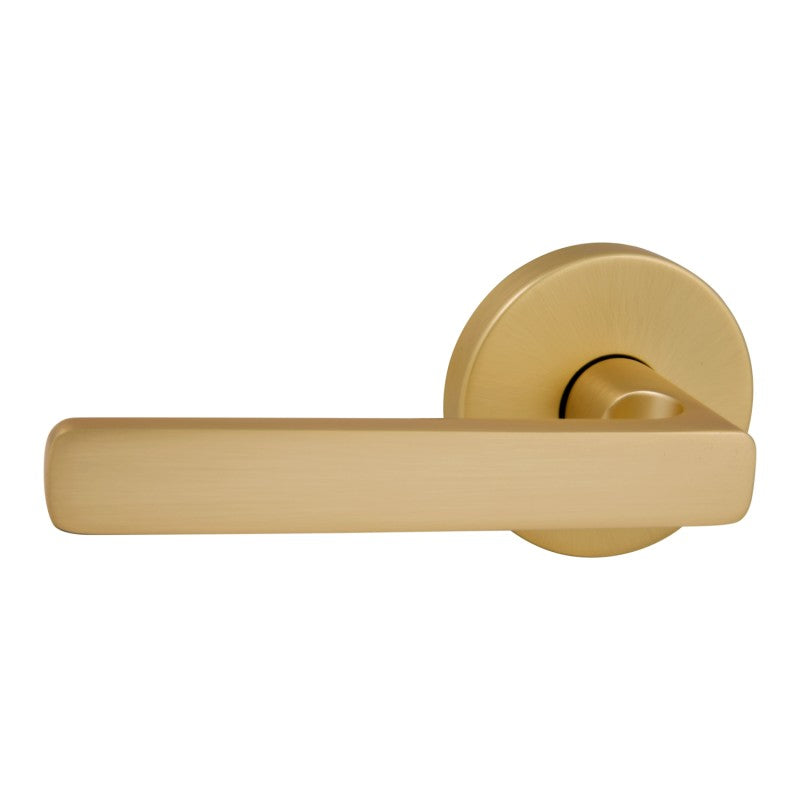

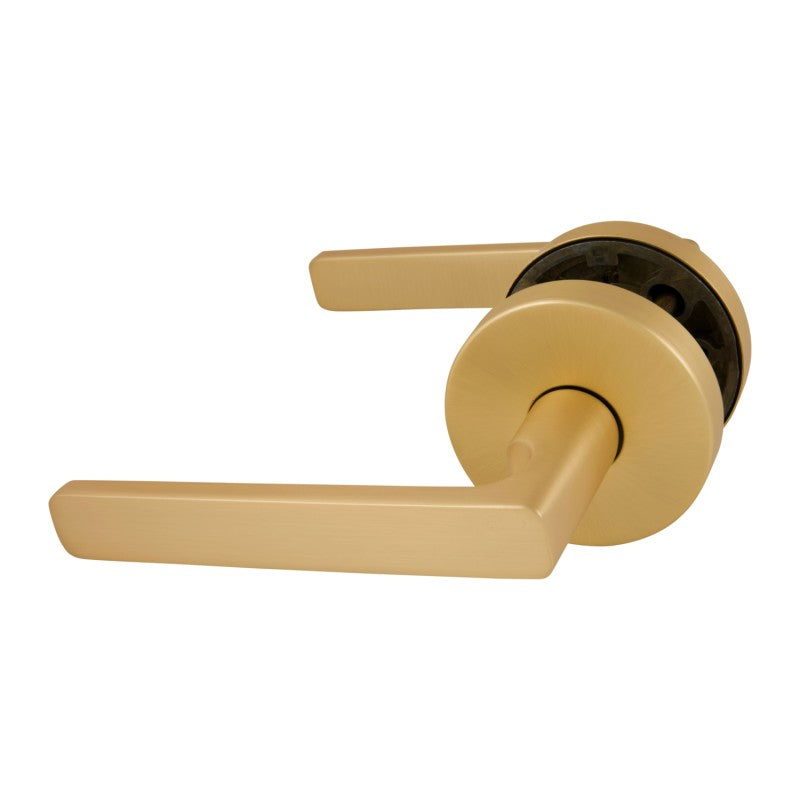

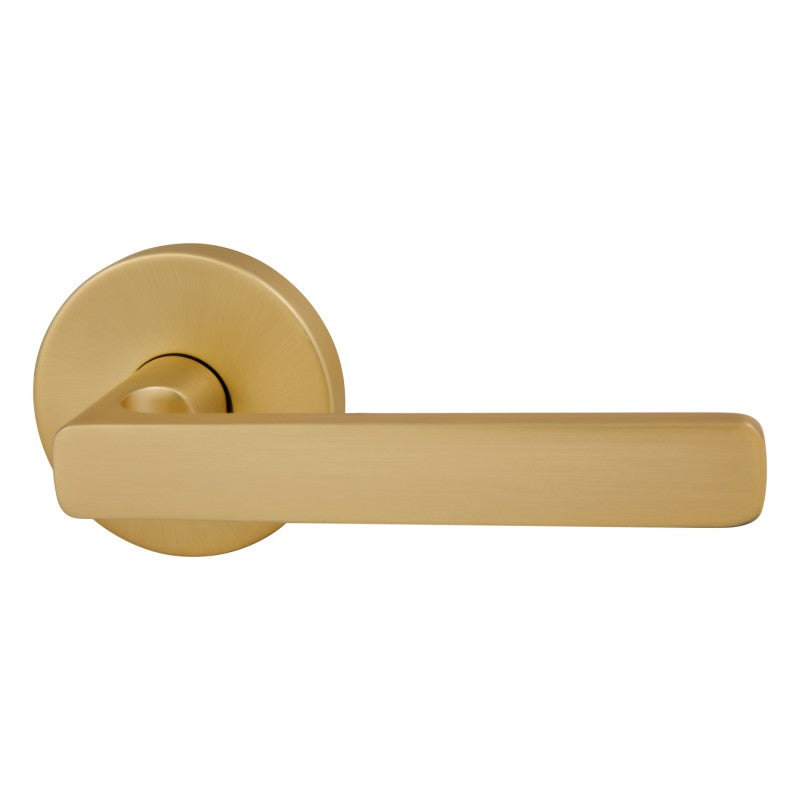

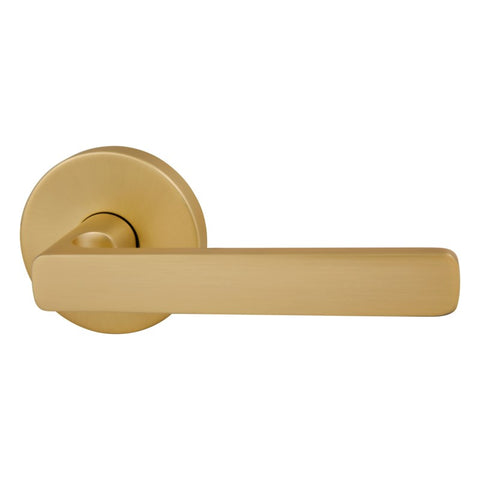

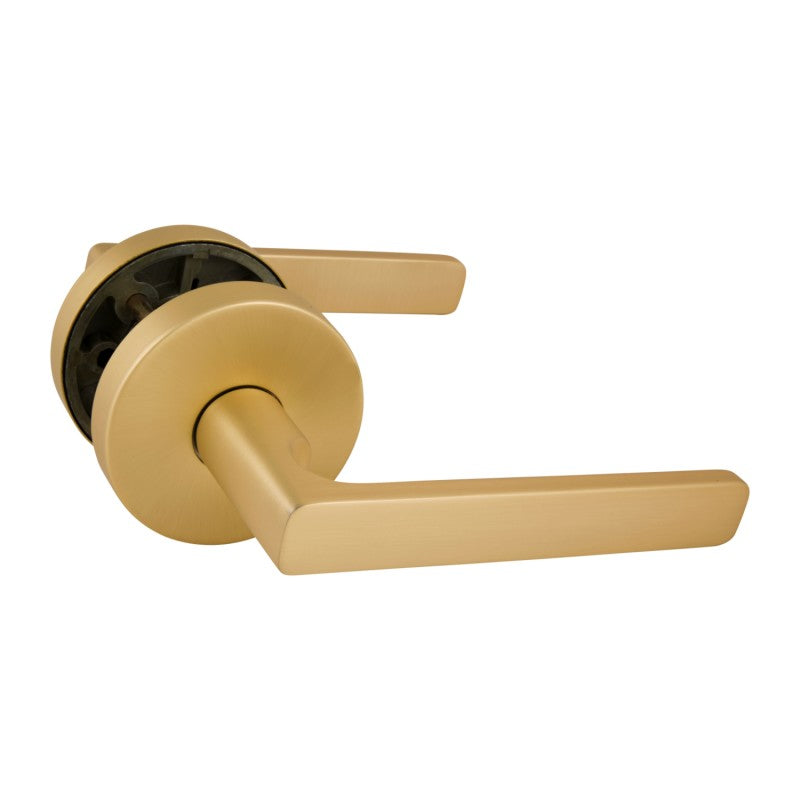

The Gainsborough Avant Quick Fix Rivera Passage Lever Set with Latch in Satin Brass combines ergonomic design with effortless installation. Built for internal doors, its Rivera lever has a comfortable finger cut-out, and the pre-fitted latch ensures a clean, fast setup — ideal for both renovation and new builds.
Key Features & Benefits
-
✅ Function: Passage (non-locking), paired with a pre-fitted tubular latch
-
✅ Finish: Satin Brass — warm, elegant metallic tone
-
✅ Material: Zinc alloy lever and rosette for durability and refined feel
-
✅ QuickFix Technology: Latch is factory-prepped, significantly reducing installation time
-

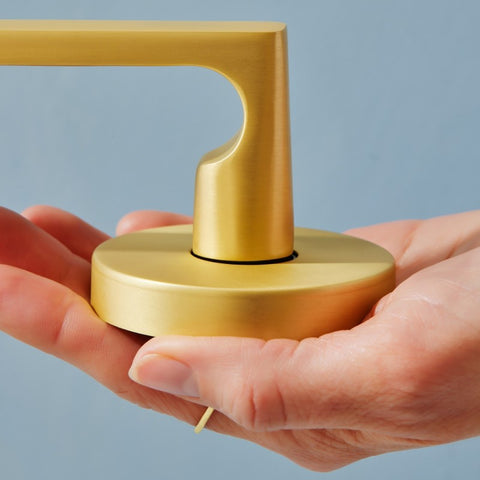

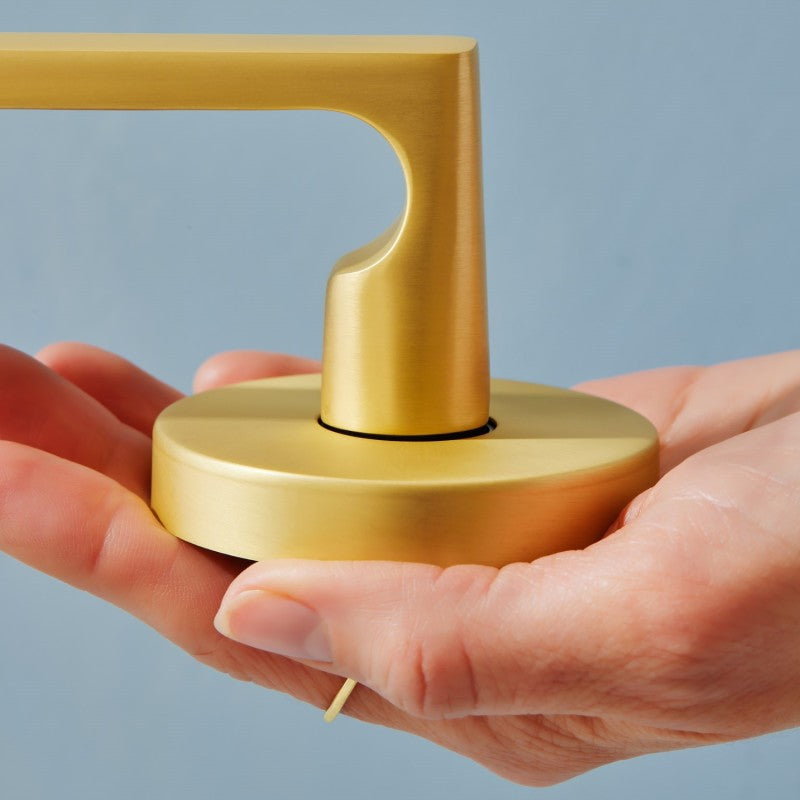

✅ Comfortable Lever: Rivera design with ergonomic finger cut-out for better grip
-
✅ Rosette: 64 mm round rosette with hidden fixings for a sleek finish
-
✅ Door Prep Compatibility: Suitable for standard preparations — 54 mm bore, ~25 mm edge bore
Specifications
-
Bore Hole: 54 mm
-
Edge Bore: ~25 mm
-
Door Thickness Compatibility: 32–45 mm
-

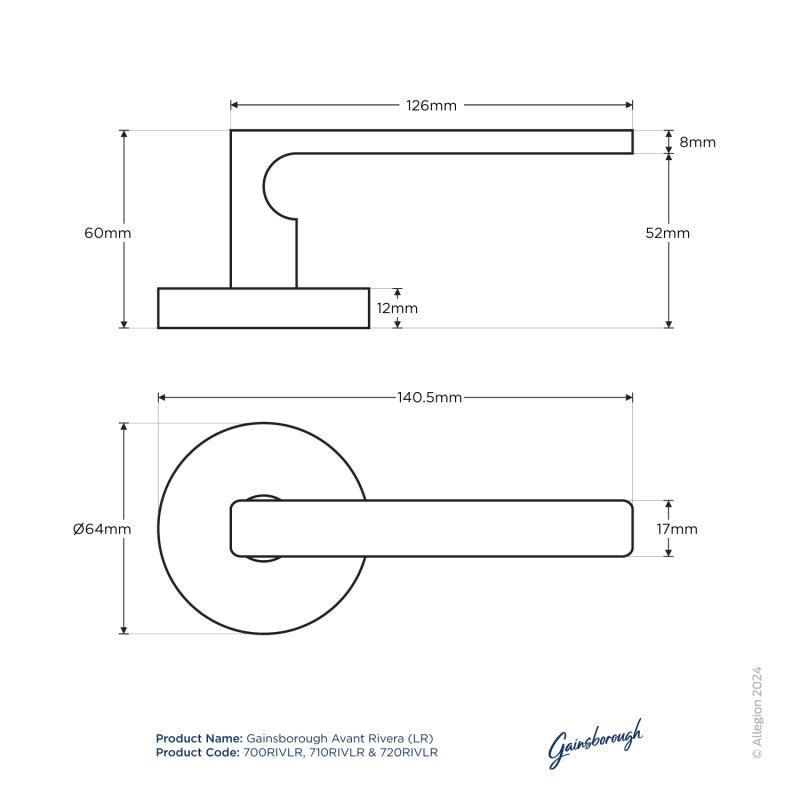

Lever Length: ~126 mm (Rivera profile)
-
Latch Backset: 60 mm
-
Included Items: Pair of Rivera lever handles, two rosettes, pre-fitted tubular latch, strike plate, screws
Applications
-
Perfect for interior doors in bedrooms, hallways, living areas where no locking is needed
-
Suitable for both new construction and refurbishment projects
-
Ideal for designers wanting a cohesive Satin Brass finish across their hardware
Installation & Inclusions
-
Pre-fitted latch simplifies installation — just fix levers to door and secure
-
Includes lever set, latch, strike plate, and fixing screws
-
Concealed screws maintain a polished, seamless appearance after install
Warranty
-
Mechanical Warranty: 15 years (Elite Avant / QuickFix range)
-
Finish Warranty: 2 years for Satin Brass tarnish
👉 Yes — it’s a non-locking passage set, ideal for rooms like bedrooms, halls, and living spaces.
Q2. Do I need to buy a separate latch?
👉 No — it comes with a pre-fitted latch, making installation quicker and easier.
Q3. What door prep is required?
👉 The set requires a 54 mm bore hole and about 25 mm edge bore, which are standard dimensions for internal doors.
Q4. What material is the lever made of?
👉 The lever and rosette are made from quarter-pure zinc alloy, giving strength and a premium feel.
Q5. What warranty is included?
👉 It includes a 15-year mechanical warranty and a 2-year tarnish (finish) warranty for the Satin Brass finish.
