Gainsborough Avant QuickFix Rivera Privacy Lever Set with Latch Satin Brass

Intro

The Gainsborough Avant QuickFix Rivera Privacy Lever Set in Satin Brass offers a sophisticated and practical solution for internal doors requiring privacy, such as bathrooms and ensuites. With its gracefully curved Rivera lever and the convenience of a pre-fitted QuickFix latch, this set balances style and efficient installation effortlessly.

Key Features & Benefits

• ✅ Function: Privacy lever set — locks from the inside, with an emergency release on the outside

• ✅ Latch: Pre-fitted tubular latch via QuickFix for faster and simpler installation

• ✅ Finish: Satin Brass — elegant, warm-toned metallic look

• ✅ Material: Zinc alloy lever and rosette for strength and quality feel

• ✅ Ergonomic Lever: Rivera’s curved profile offers a comfortable grip and smooth operation

• ✅ Rosette Design: 64 mm round rosette with concealed screw fixings for a sleek, uncluttered appearance

• ✅ Door Prep Compatibility: Fits standard door boring (54 mm bore, ~25 mm edge bore) to save on door modification

Specifications

• Bore Hole: 54 mm

• Edge Bore / Depth: ~25 mm

• Supported Door Thickness: 32–45 mm

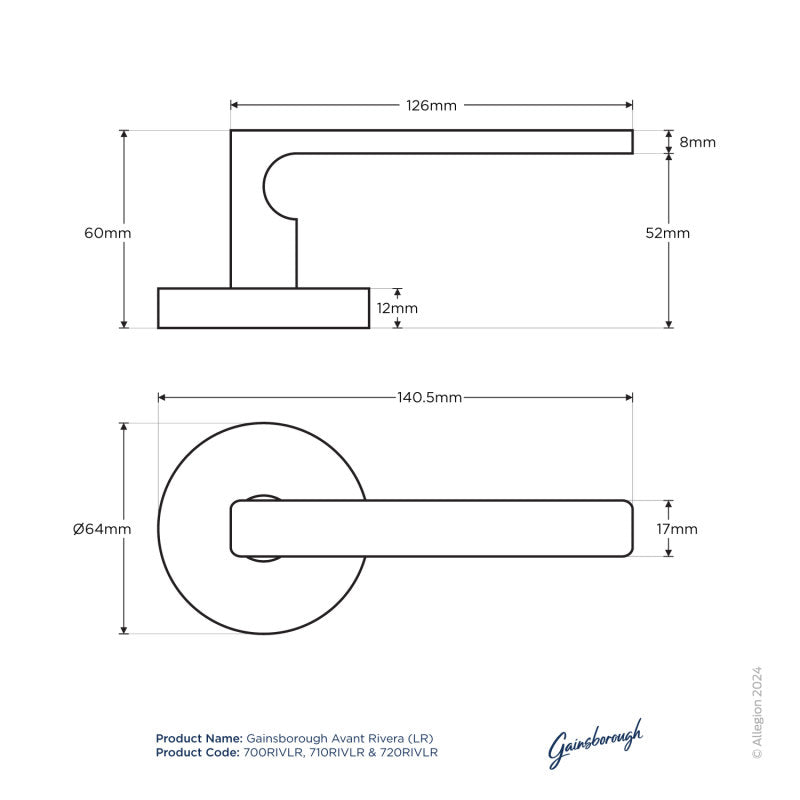

• Lever Length / Projection: ~126 mm (Rivera style)

• Latch Backset: 60 mm

• Included Components:

  • 2 × Rivera lever handles

  • 2 × 64-mm rosettes

  • Pre-fitted latch

  • Strike plate

  • Mounting screws

Applications

• Ideal for internal doors where privacy is essential: bathrooms, toilets, ensuites

• Suitable for both new builds and renovations, especially where quick and neat installation is a priority

• Complements interiors using Satin Brass finishes across door hardware for a coordinated design aesthetic

Installation & Inclusions

• The QuickFix system includes a pre-installed latch, minimizing installation time and effort

• All components are included: levers, rosettes, latch, strike plate, and fixings

• Concealed screws on the rosette maintain a refined, modern finish once installed

Warranty

• Mechanical Warranty: 15 years (Avant / QuickFix range)

• Finish (Tarnish) Warranty: 2 years for the Satin Brass finish
