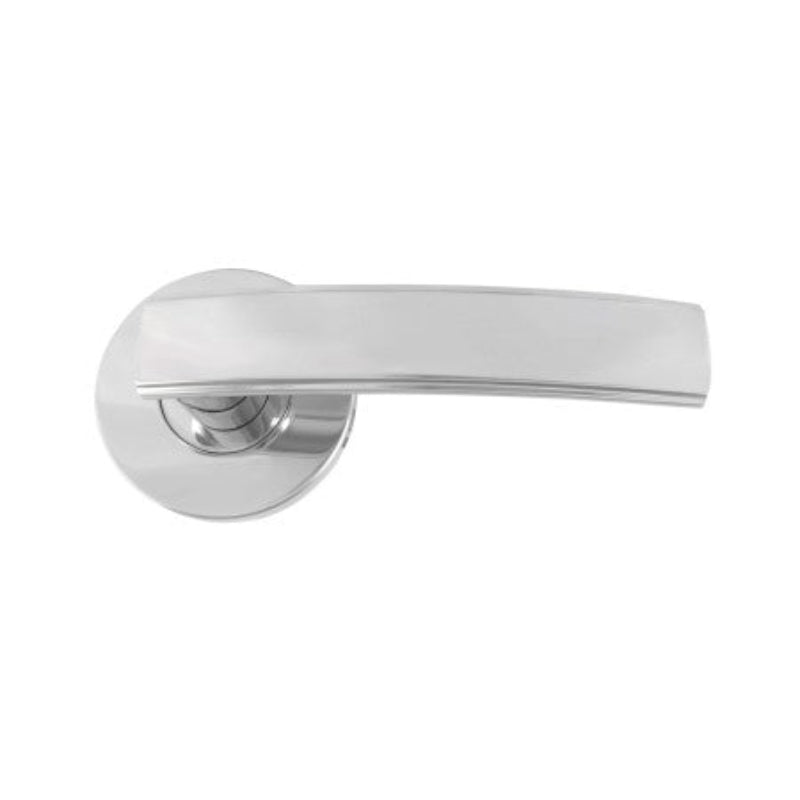

Gainsborough Lianna Lever Passage Set Satin Chrome 105AMESC
You May Also Need
This product is included in the bundle below
Gainsborough Tubular Latch D Strike Rectangular 60mm Dual Sprung Satin Chrome 480SCS
Gainsborough Lianna Lever Passage Set Satin Chrome 105AMESC
Gainsborough Bailey Lever Passage Set in Bright Chrome. Ideal for interior doors that don't require a lock, such as hallways or wardrobes. The Choice range represents Gainsborough's entry level offering. This affordable range has a unique style, ranging from classic lever designs with smooth contours or a more contemporary styled levers with crisp edges.
What's Included
Non-locking. The lever operates from both sides at all times. Hallways, wardrobes, and any internal door that does not lock.
ⓘThe strike plate is supplied with the latch.Hinges and door stops are sold separately.
Door Functions Explained
Gainsborough supplies the latch or lock with the handle set. The function you choose determines what comes in the box.
| Function | How it works | What comes with it | Use |
|---|---|---|---|
| Passage | Non-locking. The lever operates from both sides at all times. | The passage tubular latch is INCLUDED. | Hallways, wardrobes, and any internal door that does not lock. |
| Privacy | Locks from the inside with a button or turn, with an emergency release outside. | The privacy tubular latch is INCLUDED. | Bathrooms, ensuites and bedrooms. |
| Entrance | Key-lockable. Supplied with a cylindrical (key-in-lever) lock. | The cylindrical lock and keys are INCLUDED. | Front and back doors, where a cylindrical lock is acceptable. |
| Dummy / Fixed | A fixed lever with no latch and no moving parts. | SINGLE handle only (not a pair) — supplied with the spindle. No latch. | A fixed panel, or the inactive leaf of a double door. |
If you want a full mortice entrance rather than the cylindrical lock, the mortice lock is ordered separately. Gainsborough's mortice locks are double-cylinder, so the cylinder and keys are built in.
Separate Entrance Kit — Sold Separately
The handle set above comes with its latch or cylindrical lock. If you want a full mortice entrance instead, order one of the lock bodies below in addition to the handle.
| Code | Lock body | Backset | Notes |
|---|---|---|---|
| 755-60 | Double Cylinder Mortice Lock | 60mm backset | Keyed from both sides. Cylinder and keys are built in. |
| 775-60 | Roller Bolt Mortice Lock | 60mm backset | Roller bolt version, for doors that need a quieter, smoother close. |
| 760 | Sliding Door Mortice Lock | — | For sliding and cavity doors, not hinged doors. |
Gainsborough does not make a separate euro cylinder or escutcheon — the mortice locks above are double-cylinder, so the cylinder and keys come with the lock.
Finish
This product code is this finish only. Other finishes have their own code.
Dimensions
| Measurement | Size |
|---|---|
| Backset | 60 |
| Bore Hole | 54 |
| Edge Bore | 25 |
| Lever Length | 116 |
Centre to centre is the fixing-hole spacing. Projection is how far the handle stands off the door face.
Specifications
| Finish | Satin Chrome |
| Style Name | Bailey |
| Product Type | Choice |
| Application | Internal |
| Backset | 60 |
| Bore Hole | 54 |
| Edge Bore | 25 |
| Lever Length | 116 |
| Locking | Non-Locking |
| Latch Included | true |
Warranty
Applied to the Choice Lever range. Covers defects in materials and workmanship under normal use, when correctly installed.
ⓘFinish warranty2-Year finish. Warranty periods differ by series — this is the cover for this range.
What is the Gainsborough Lianna Lever Passage Set Satin Chrome 105AMESC?
It is a Gainsborough lever set from the Choice range, product code 105BAIBC.
What is included?
The passage tubular latch is INCLUDED. Non-locking. The lever operates from both sides at all times. The strike plate is supplied with the latch. Hinges and door stops are not included and are ordered separately.
What is the difference between Passage, Privacy, Entrance and Dummy?
Passage: non-locking, the lever works from both sides at all times — the passage tubular latch is included. Privacy: locks from the inside with a button or turn and has an emergency release outside — the privacy latch is included. Entrance: key-lockable, supplied with a cylindrical (key-in-lever) lock and keys. Dummy: a fixed lever with no latch, supplied with the spindle.
Do I need to buy a latch separately?
No. Gainsborough supplies the latch or cylindrical lock with the handle set, and the strike plate comes with the latch. What you do need to add is hinges and a door stop.
How do I get a full mortice entrance instead of the cylindrical lock?
Order a mortice lock separately: 755-60 Double Cylinder Mortice Lock (60mm backset), or 775-60 Roller Bolt Mortice Lock. Gainsborough mortice locks are double-cylinder, so the cylinder and keys are built in — there is no separate euro cylinder or escutcheon to buy.
What is the backset?
60mm. Backset is the distance from the edge of the door to the centre of the handle. Measure the door before ordering.
What size hole does the door need?
A 54mm bore hole, with a 25mm edge bore.
What warranty does it carry?
7-Year Mechanical, plus 2-year finish. Gainsborough sets its warranty by range rather than across the brand, and this item falls under the Choice Lever cover. It applies to defects in materials and workmanship under normal use, when correctly installed.
How do I care for the finish?
Wipe with a soft, damp cloth and dry. Avoid abrasive cleaners and solvents.
