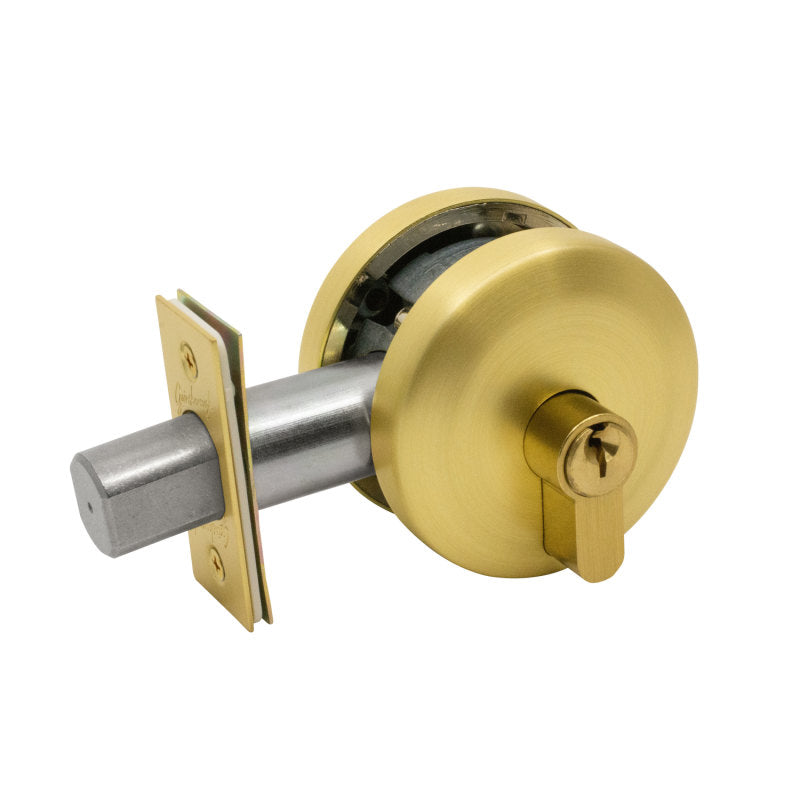

Gainsborough Neue Smooth Round Double Cylinder Deadbolt Satin Brass
You May Also Need
This product is included in the bundle below
Gainsborough Neue Smooth Round Double Cylinder Deadbolt Satin Brass
With keys required on both sides, it’s suited for entry doors where maximum control is needed.
Finish
This product code is this finish only. Other finishes have their own code.

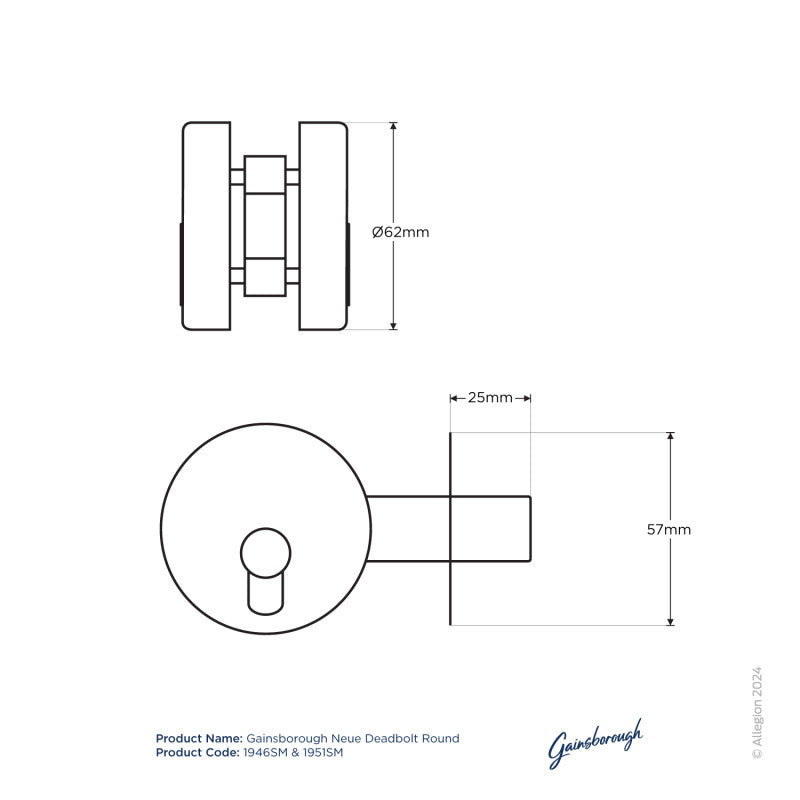

Dimensions
| Measurement | Size |
|---|---|
| Backset | 60 mm |
| Bore Hole | 54 mm |
| Edge Bore | 22 mm |
| Door Thickness | 35–45 mm |
Centre to centre is the fixing-hole spacing. Projection is how far the handle stands off the door face.
Specifications
| Finish | Satin Brass |
| Material | Zinc alloy for strength and durability |
| Backset | 60 mm |
| Bore Hole | 54 mm |
| Edge Bore | 22 mm |
| Door Thickness | 35–45 mm |
| Comes With | deadbolt body, two key cylinders, fixing kit, and screws |
Warranty
Applied to the Deadbolt (Neue) range. Covers defects in materials and workmanship under normal use, when correctly installed.
ⓘFinish warranty5-Year finish. Warranty periods differ by series — this is the cover for this range.
What is the Gainsborough Neue Smooth Round Double Cylinder Deadbolt Satin Brass?
It is a Gainsborough deadbolt from the Neue range, product code 1951SMSBV.
What is the backset?
60 mmmm. Backset is the distance from the edge of the door to the centre of the handle. Measure the door before ordering.
What size hole does the door need?
A 54 mmmm bore hole, with a 22 mmmm edge bore.
What door thickness does it suit?
35–45 mm.
What warranty does it carry?
10-Year Mechanical, plus 5-year finish. Gainsborough sets its warranty by range rather than across the brand, and this item falls under the Deadbolt (Neue) cover. It applies to defects in materials and workmanship under normal use, when correctly installed.
How do I care for the finish?
Wipe with a soft, damp cloth and dry. Avoid abrasive cleaners and solvents.
How can I get help?
Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
