Gainsborough TradePro Cass Single Cylinder Deadbolt Satin Chrome 1445PROCASSCK

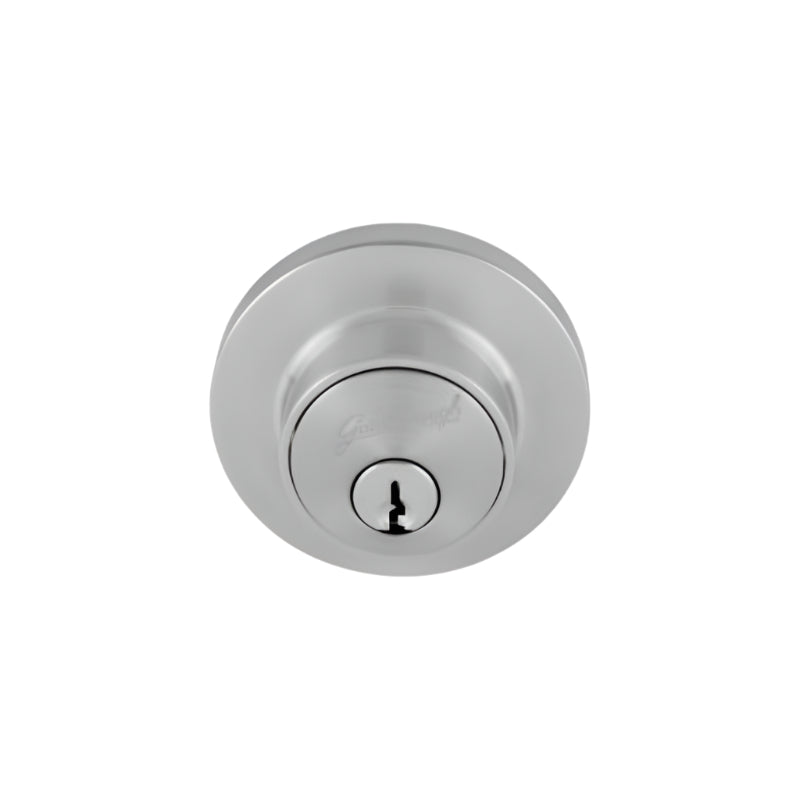

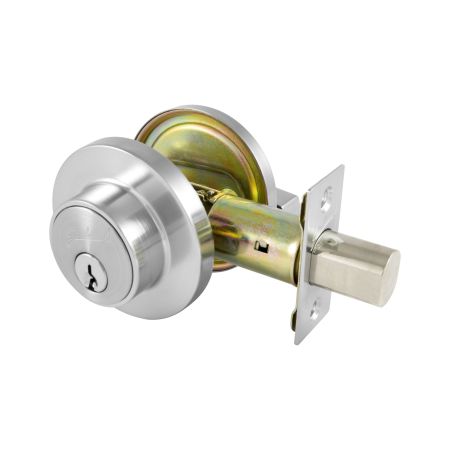

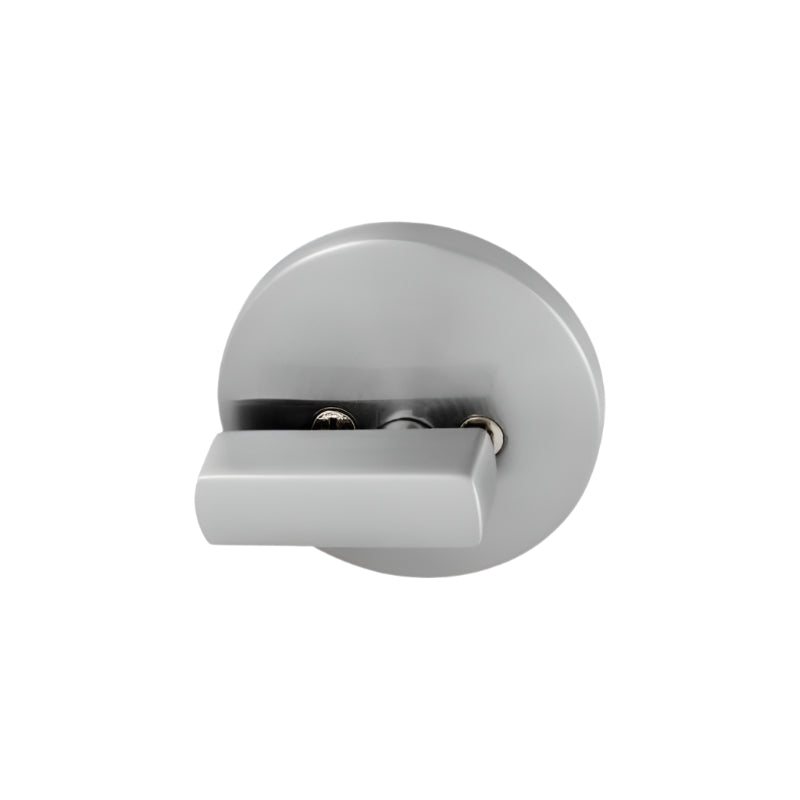

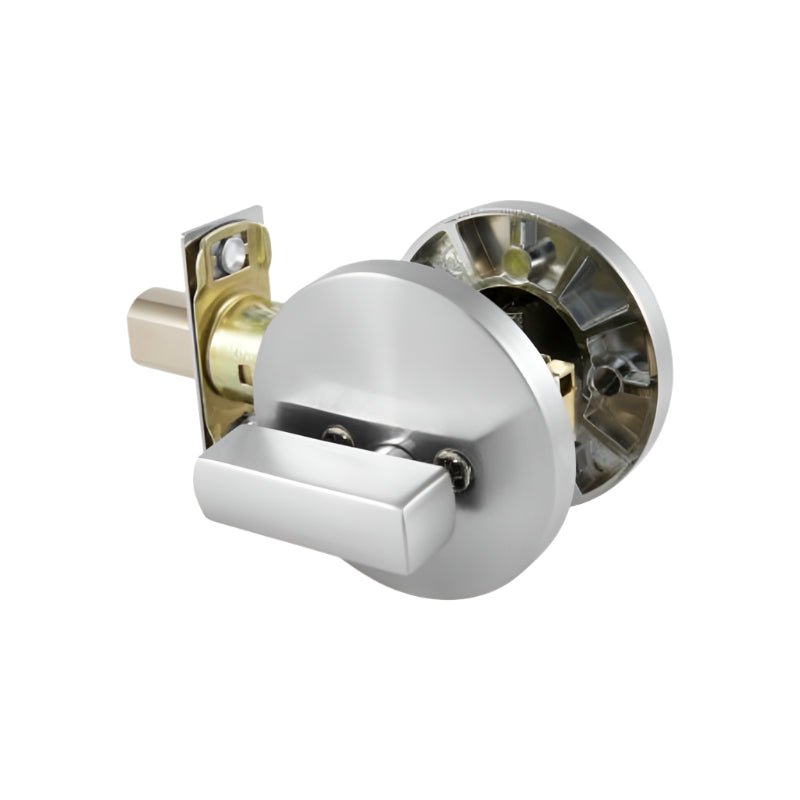

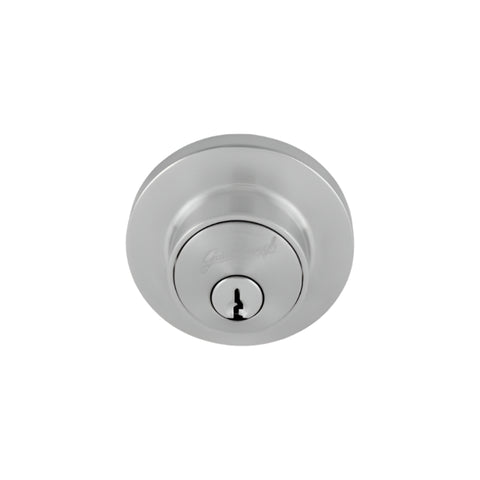

The Gainsborough TradePro Cass Single Cylinder Deadbolt in Satin Chrome (1445PROCASSCK) is a standalone deadbolt for external doors. The "K" in the product code indicates it is a keyed deadbolt, meaning it can be locked with a key from the outside and a thumb-turn from the inside, providing a high level of security. This deadbolt is part of the Gainsborough GR9 Keying System, which allows for convenient project keying TradePro is an affordable door hardware range developed for residential homes, delivering security, quality and performance. TradePro is available in contemporary styles and finishes for everyday needs of homes including entrance door locksets, internal lever & knob, and deadbolts for added security.
Available Finishes & Product Codes
This model is made in the finishes below. Each finish has its own product code.
Swatch colours are indicative only.
Dimensions
| Measurement | Size |
|---|---|
| Backset | 60-70 |
| Bore Hole | 54 |
| Edge Bore | 25 |
Centre to centre is the fixing-hole spacing. Projection is how far the handle stands off the door face.
Specifications
| Finish | Satin Chrome |
| Style Name | CASS |
| Application | External |
| Backset | 60-70 |
| Bore Hole | 54 |
| Edge Bore | 25 |
| Locking | Locking |
| Latch Included | false |
Warranty
Applied to the Deadbolt range. Covers defects in materials and workmanship under normal use, when correctly installed.
ⓘFinish warranty5 or 2-Year finish depending on finish. Warranty periods differ by series — this is the cover for this range.
What is the Gainsborough TradePro Cass Single Cylinder Deadbolt Satin Chrome 1445PROCASSCK?
It is a Gainsborough deadbolt, product code 1445PROCASSCK.
What is the backset?
60-70mm. Backset is the distance from the edge of the door to the centre of the handle. Measure the door before ordering.
What size hole does the door need?
A 54mm bore hole, with a 25mm edge bore.
What finishes is this available in?
It is made in Bright Chrome, Matt Black, Satin Chrome. Each finish has its own product code.
What warranty does it carry?
10-Year Mechanical, plus 5 or 2-year finish depending on finish. Gainsborough sets its warranty by range rather than across the brand, and this item falls under the Deadbolt cover. It applies to defects in materials and workmanship under normal use, when correctly installed.
How do I care for the finish?
Wipe with a soft, damp cloth and dry. Avoid abrasive cleaners and solvents.
