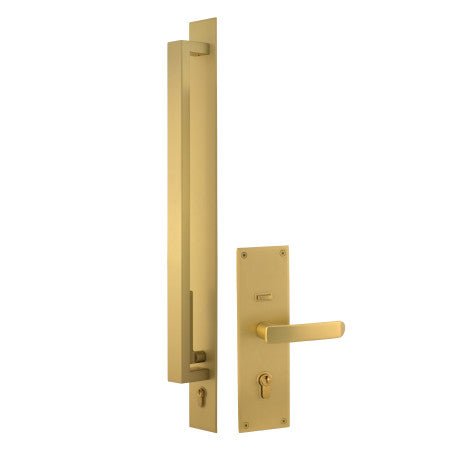

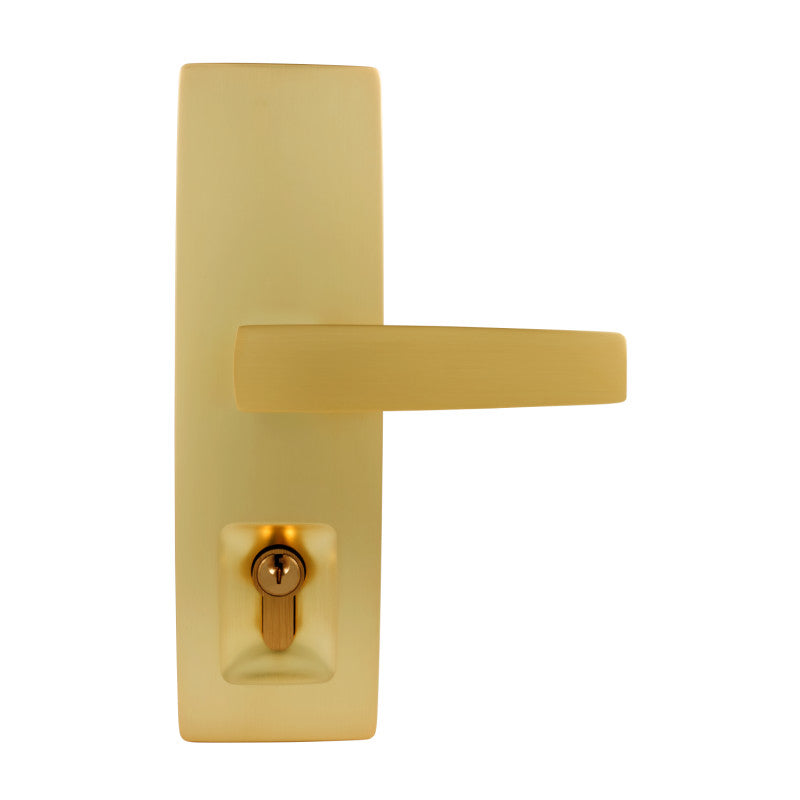

Gainsborough Trilock Omni Allure Double Cylinder Entrance Set Satin Brass
This is a Gainsborough hardware item. Backset 60 mm.
Available Finishes & Product Codes
This model is made in the finishes below. Each finish has its own product code.
Swatch colours are indicative only.
Dimensions
| Measurement | Size |
|---|---|
| Bore Hole | 60 mm |
| Backset | 60 mm |
| Edge Bore | ~22 mm |
| Door Thickness | 35–45 mm |
| Lever Length | 121 mm (Allure style) |
Centre to centre is the fixing-hole spacing. Projection is how far the handle stands off the door face.
Specifications
| Finish | Satin Brass |
| Bore Hole | 60 mm |
| Backset | 60 mm |
| Edge Bore | ~22 mm |
| Door Thickness | 35–45 mm |
| Lever Length | 121 mm (Allure style) |
| Pull Handle Length | 600 mm |
| Includes All Required Hardware | pull handle, lock mechanism, cylinders, strike plate, screws |
Warranty
Applied to the Gainsborough range. Covers defects in materials and workmanship under normal use, when correctly installed.
ⓘFinish warranty5-Year finish. Warranty periods differ by series — this is the cover for this range.
What is the Gainsborough Trilock Omni Allure Double Cylinder Entrance Set Satin Brass?
It is a Gainsborough other from the Trilock range, product code 8901AURSBK.
What is the backset?
60 mmmm. Backset is the distance from the edge of the door to the centre of the handle. Measure the door before ordering.
What size hole does the door need?
A 60 mmmm bore hole, with a ~22 mmmm edge bore.
What door thickness does it suit?
35–45 mm.
What finishes is this available in?
It is made in Brushed Satin Chrome, Matt Black, Satin Brass. Each finish has its own product code.
What warranty does it carry?
10-Year Mechanical, plus 5-year finish. Gainsborough sets its warranty by range rather than across the brand, and this item falls under the Gainsborough cover. It applies to defects in materials and workmanship under normal use, when correctly installed.
How do I care for the finish?
Wipe with a soft, damp cloth and dry. Avoid abrasive cleaners and solvents.
