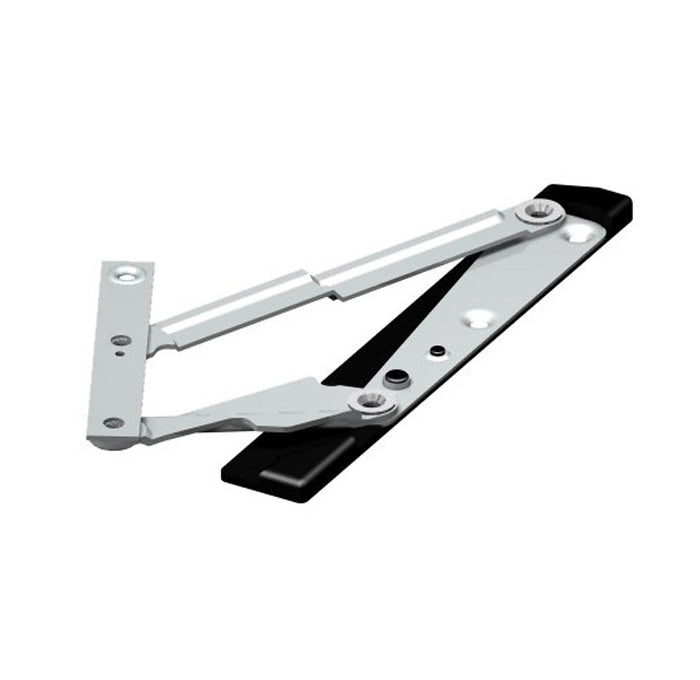

Interlock Window Stay P1090NF 236mm Non-Friction Hinge

Prime HardwareSKU: ASSP1090NF



The Interlock Window Stay P1090NF 236mm non-friction hinge is designed for a wide range of Cater applications. This hinge offers ease of use and reliable performance with its unique "pull in" feature. It is hands-free and does not require sliding channels which makes installation considerably easier. It incorporates patented interlock friction bearings to ensure smooth and safe operation. This Interlock Window Stay P1090NF is suitable for both wood and metal fixing surfaces. Primehardware delivers this Interlock Window Stay P1090NF 236mm non-friction hinge in Australia.


Interlock Window Non-Friction Stay
4-BC Series 230 NF

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 4 business days after payment is made.

  • A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung (PSH) aluminium, timber or uPVC sashes.
  • Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.


  • A comprehensive range to cater for most applications
  • Manufactured with the unique "pull in" feature
  • Non-handed
  • No sliding channels
  • Factory set friction levels thus no on-site adjustment necessary
  • Incorporates the patented Interlock friction bearing
  • Supplied in pairs


  • Brand: Interlock
  • Opening Angle: 90 Degrees
  • Max Sash Weight: 25kg
  • Fixing Surfaces: Timber, Metal
  • Finish: Stainless Steel

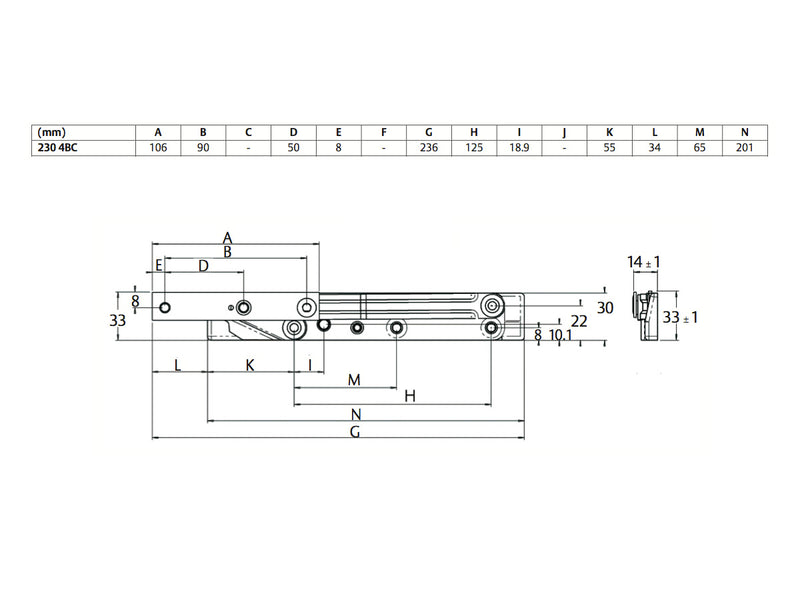

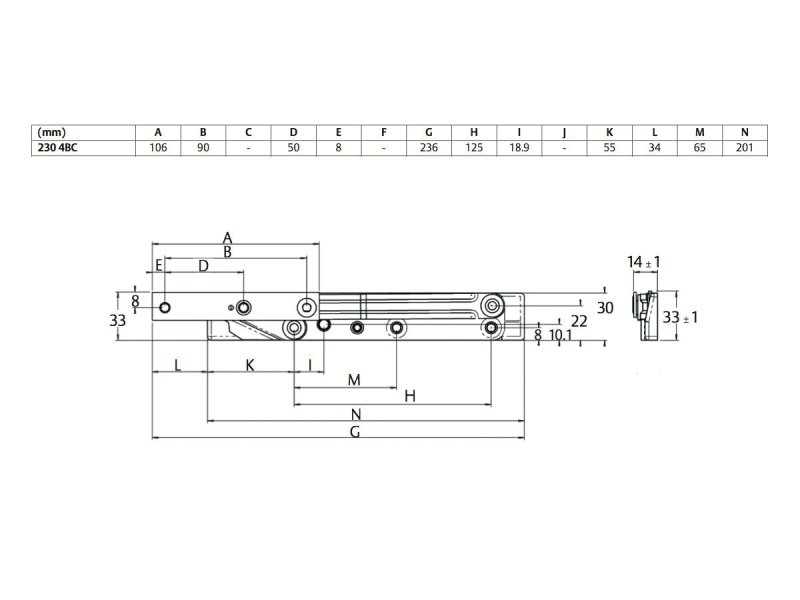

  • Dimensions: shown in images
