INTERLOCK WINDOW STAY 503MM NON-FRICTION HINGE STAINLESS STEEL P1004NF

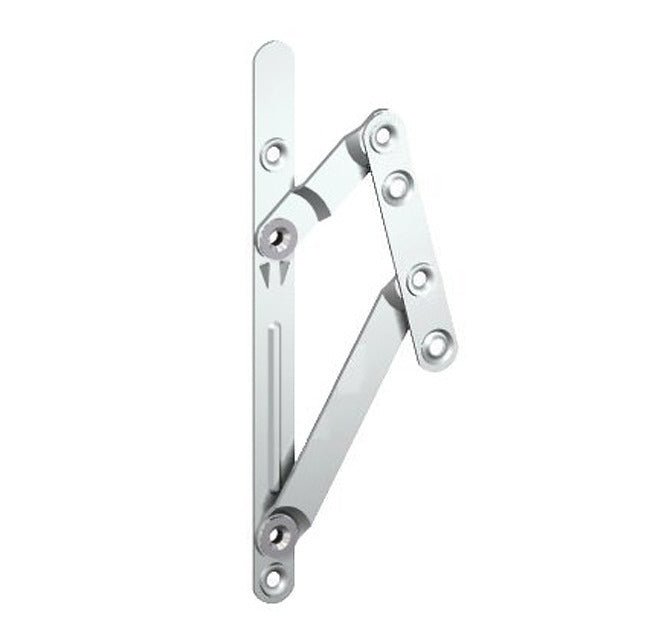

Interlock Window Non-Friction Stay
4-B Series 500 NF
P1004NF

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 4 business days after payment is made.

• A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes.
• Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.

Features:

• Non-handed
• Manufactured with the unique “pull-in” feature
• No sliding channels
• Factory set friction levels mean no on-site adjustment is required
• Fixed directly through the bearing eyelet as well as through the formed screw or rivet holes
• Incorporates the Interlock patented frictional bearing
• Supplied in pairs

Specifications:

• Brand: Interlock

• Opening Angle: 25 Degrees
• Max Sash Weight: 30kg
• Fixing Surfaces: Timber, Metal
• Finish: Stainless Steel

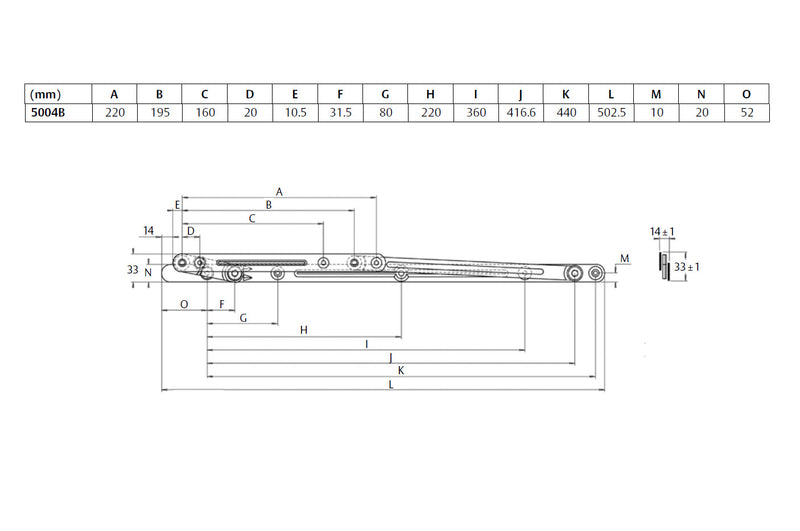

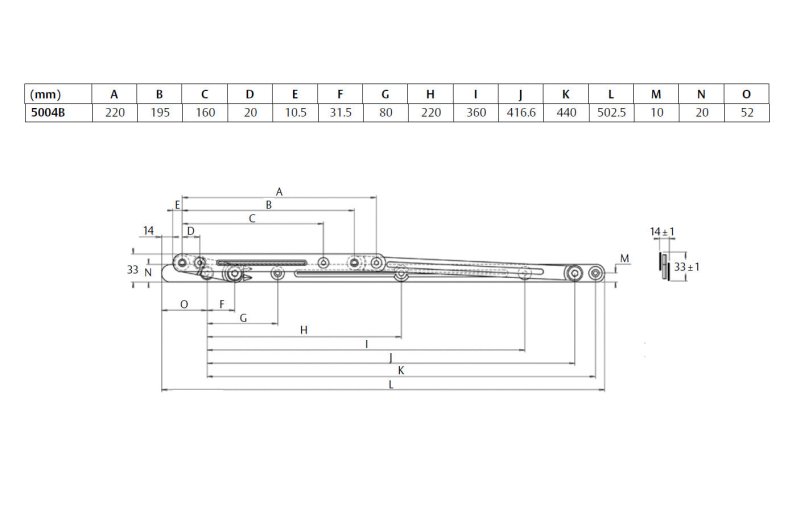

• Dimensions: shown in images
