Lockwood
SKU: ASSP1002
INTERLOCK WINDOW STAY P1002 198MM FRICTION HINGE STAINLESS STEEL
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection

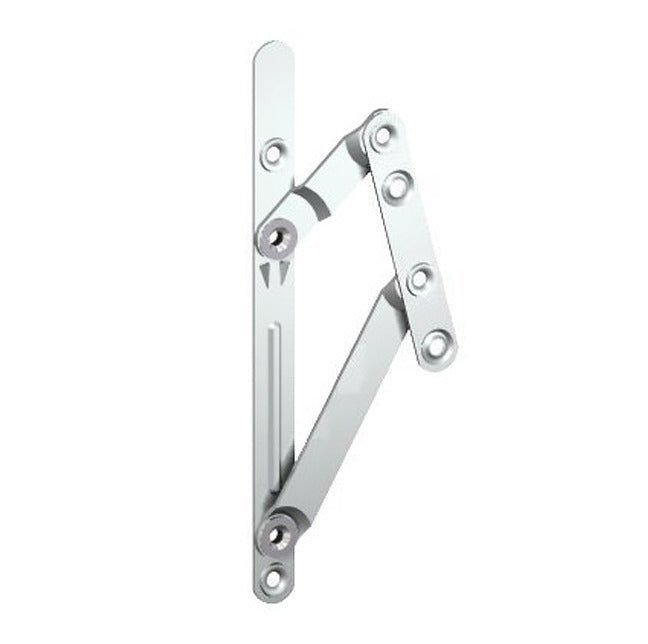

Interlock Window Friction Stay
4-B Series 200
P1002
Sold in Pairs
4-B Series 200
P1002
Sold in Pairs
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which has a handling time of Five (5) Business days after payment is made.
A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes. Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.
Features:
This is a non-stocked item which has a handling time of Five (5) Business days after payment is made.
A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes. Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.
Features:
- Non-handed
- Manufactured with the unique “pull-in” feature
- No sliding channels
- Factory set friction levels mean no on-site adjustment is required
- Fixed directly through the bearing eyelet as well as through the formed screw or rivet holes
- Incorporates the Interlock patented frictional bearing
- Supplied in pairs
Specifications:
- Max Sash Height: 600mm
- Opening Angle: 40°
- Max Sash Weight: 10kg
- Fixing Surfaces: Timber, Metal
- Finish: Stainless Steel

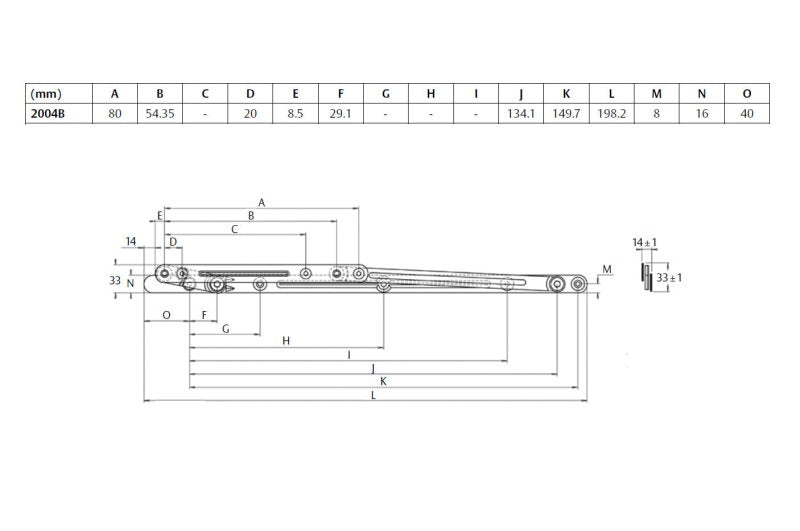

- Dimensions: shown in images
Brand:
- Interlock
