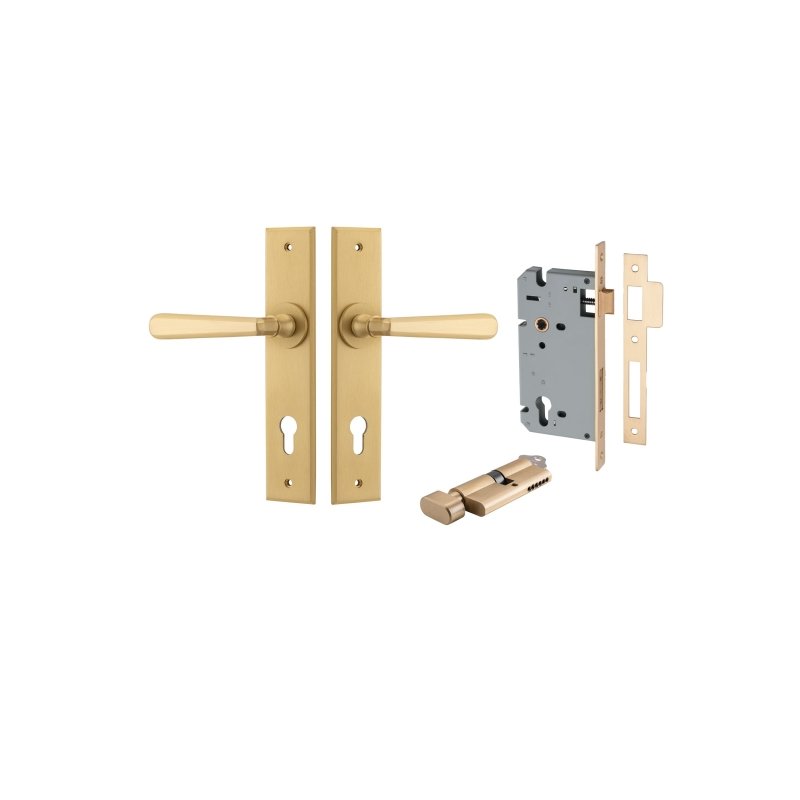

Iver Copenhagen Door Lever on Chamfered Backplate — Entrance Kit — Key/Thumb
Solid brass. Backplate: H240mm × W50mm. Projection: 59mm. Backset: 60mm. Door type: Timber and aluminium, 35mm–55mm. Fire rated 2 hours AS1530.4:2014. 10-Year Mechanical Warranty. Complete Entrance Kit Key/Thumb. Key outside, thumb turn inside. All fixings included.
Complete Entrance Kit — Key/Thumb. Lock from outside with key, lock from inside with thumb turn. Hinges sold separately.
|
Material
Solid brass
|
Door type
Timber & aluminium
|
Fire rating
2 hours — AS1530.4:2014
|
Warranty
10-Year Mechanical
|
| Warranty | |
| 10-Year Mechanical Warranty | Covers defects in materials and workmanship across all finishes |
| Lifetime Finish Warranty | Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD |
| ⓘ Living finish | Brushed Brass naturally ages and patinas over time — generally excluded from finish defect warranties |
| What’s in the box — Entrance Kit — Key/Thumb | |
| 2 x Copenhagen Levers on Chamfered Backplate | 1 x Euro Mortice Lock CTC 85mm — Backset 60mm |
| 1 x Euro Cylinder Key/Thumb — 5 Pin + 2 Keys | 1 x Face Plate |
| 1 x Striker Plate | 1 x Standard Spindle |
| 2 x Sprung Spindles | 1 x Dust Box |
| 2 x Tie Bolts | All required fixings |
| 1 x Drill Template | 1 x Instruction Manual |
| ⓘ Hinges and flush bolts are not included — see the bundle guide below to select what you need. | |
| Bundle guide — what else do you need? | |
| Follow these three steps to build the right kit for your door. | |
| Step 1 — What is your door made of? | |
|
Timber door Most common for internal doors. Installs directly using the included screws. Typical thickness: 35mm – 45mm |
Aluminium door Common for modern or commercial-style homes. May require aluminium-specific fixings — contact us if unsure. Typical thickness: 44mm – 55mm |
| Step 2 — What type of door is it? | |
|
Passage — no locking required Bedrooms, living rooms, studies — doors that simply open and close. You need: Copenhagen Lever on Chamfered Backplate — Passage Kit (Latch — 60mm backset) | |
|
Privacy — lockable from inside only Bathrooms, ensuites, or bedrooms where you want a snib on the inside. You need: Copenhagen Lever on Chamfered Backplate — Privacy Kit (Privacy — 60mm backset) | |
|
Entrance — keyed lock Front or back doors, or any door you want to lock with a key. You need: Copenhagen Lever on Chamfered Backplate — Entrance Kit (Euro — 85mm CTC, 60mm backset) | |
| Door thickness guide — mortice lock selection | |
| 35mm – 40mm | Standard mortice lock |
| 40mm – 55mm | Heavy-duty or long-case mortice lock |
| Key/Thumb | Lock from inside with thumb turn, key from outside (most popular) |
| Key/Key | Lock and unlock from both sides with a key |
| ⓘ Rebated double door? Choose the rebated mortice lock — includes rebate kit | |
| Step 3 — Is it a double door? | |
| Double doors need flush bolts to keep the inactive door secure and prevent rattling. | |
| Standard doors (under 2100mm) | 150mm bolt top + 150mm bolt bottom |
| Taller doors (2100mm and above) | 300mm bolt top + 150mm bolt bottom |
| Flush bolts are available in non-lockable and key-lockable versions. A magnetic catch can be used in place of the bottom bolt if preferred. | |
| Hinges | ||
| Not sure which hinge to choose? Use this as your guide. | ||
|
Ball bearing Entrance and heavier doors Reduces friction, prevents squeaking and wear. |
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications. |
Loose pin Internal use only — ideal for bathrooms Door can be lifted off its hinges in an emergency, even when locked. |
| ⓘ As a general rule: 3 hinges for internal doors, 3 hinges for entrance or heavier doors. | ||
| Specifications | |
| Material | Solid brass |
| Door type | Timber & aluminium |
| Door thickness | 35mm – 55mm |
| Backplate | Chamfered |
| Backplate height | 240mm |
| Backplate width | 50mm |
| Length | 120mm |
| Projection | 59mm |
| Centre to centre | 205mm |
| Backset | 60mm (all functions) |
| Function | Entrance — Euro mortice lock, Key/Thumb cylinder, 85mm CTC, 60mm backset |
| Fire rating | 2 hours — AS1530.4:2014 |
| Finish | Brushed Brass |
| Warranty | 10-Year Mechanical Warranty (living finish — excluded from finish warranty) |
| Sold as | Pair |
Available Finishes
Brushed Brass, Brushed Chrome, Distressed Nickel, Matt Black, Polished Chrome, Satin Nickel, Signature Brass
Privacy (Privacy — 60mm backset) — lockable from inside with a snib, no key required. Suited to bathrooms, ensuites and powder rooms.
Entrance (Euro — 85mm CTC, 60mm backset) — locks with a key via euro cylinder. Suited to front and back doors.
Key/Key — key required to lock and unlock from both sides. Suited to rental properties or commercial doors where full key control on both sides is required.
