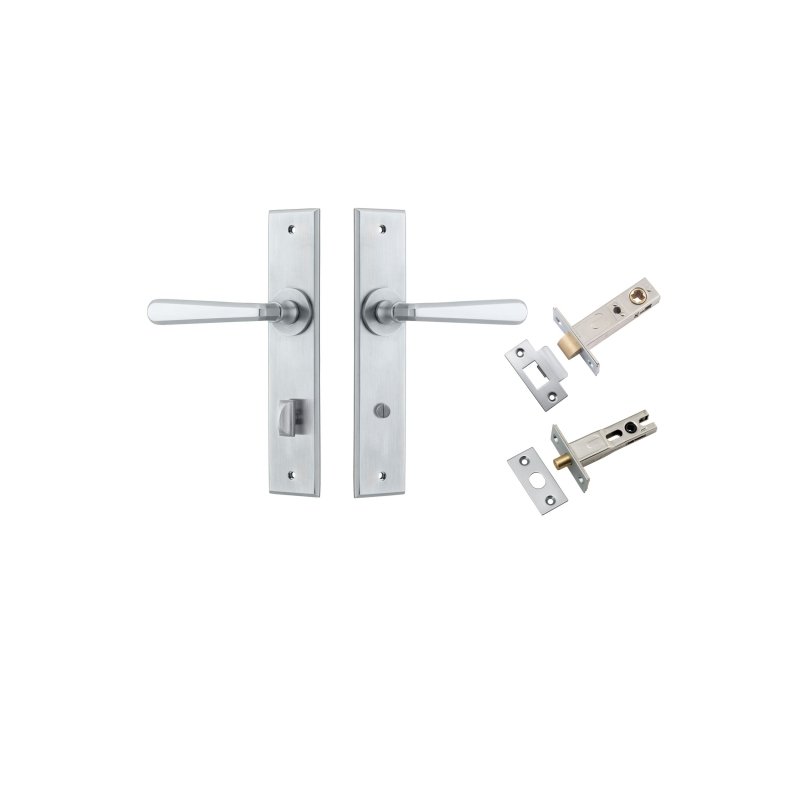

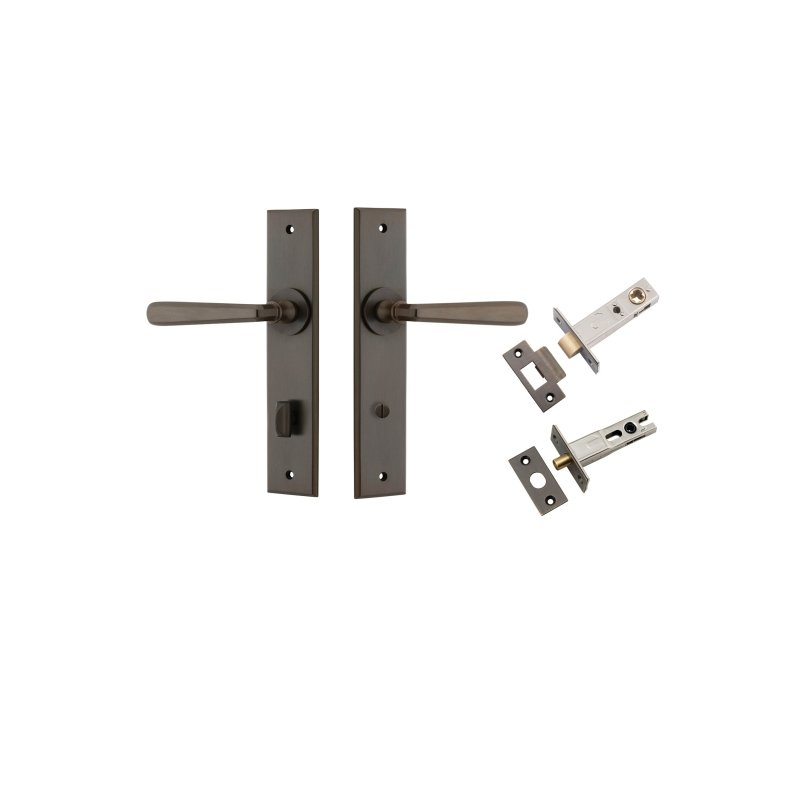

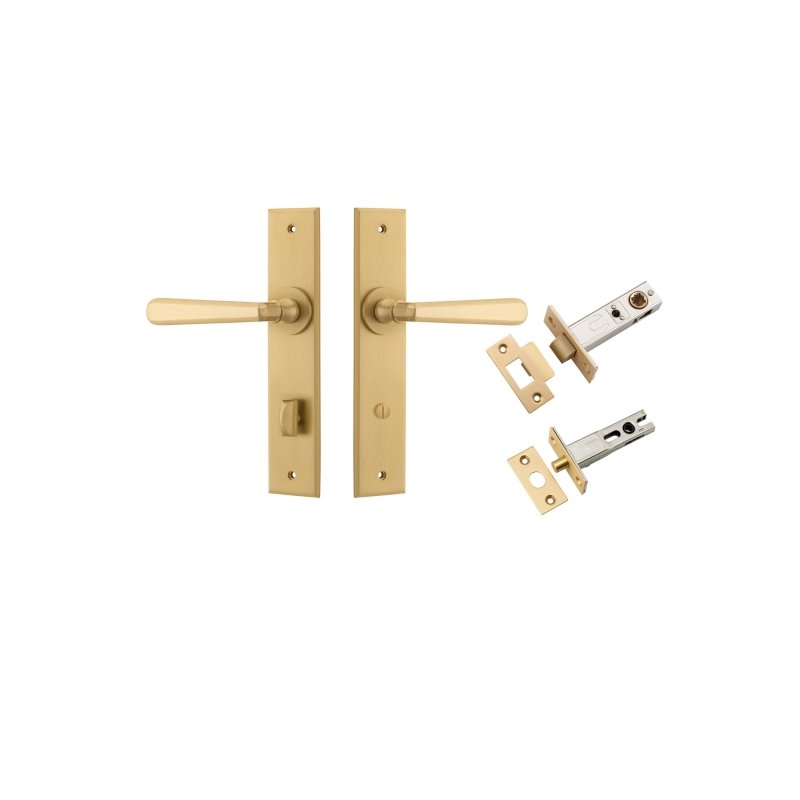

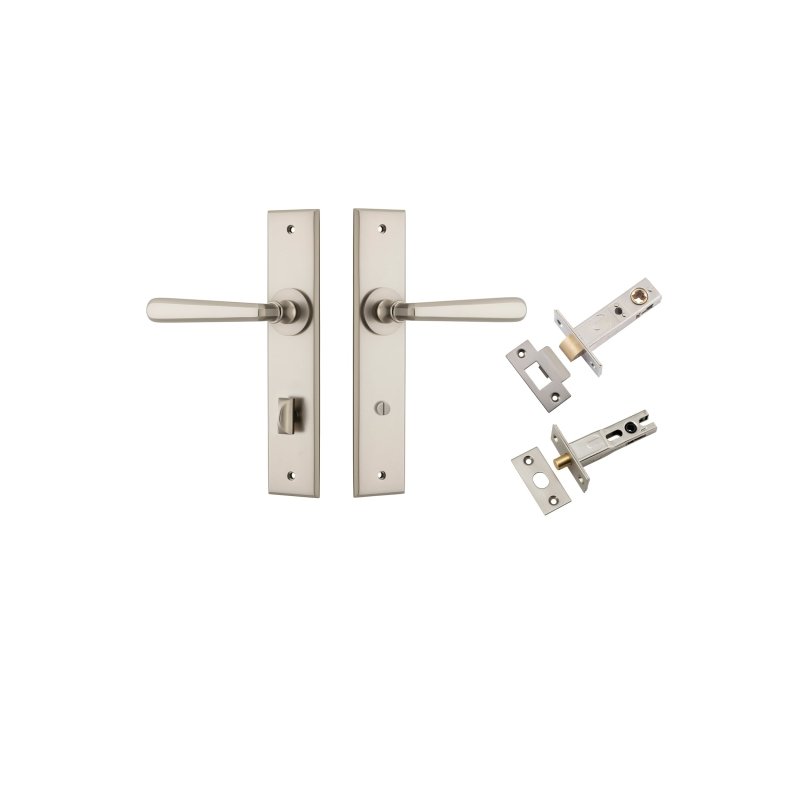

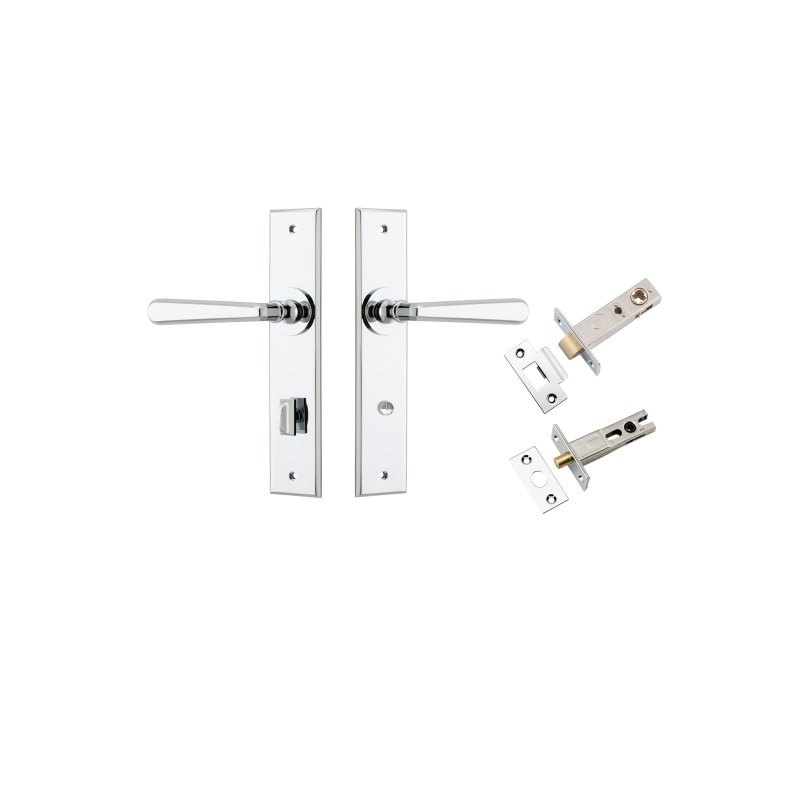

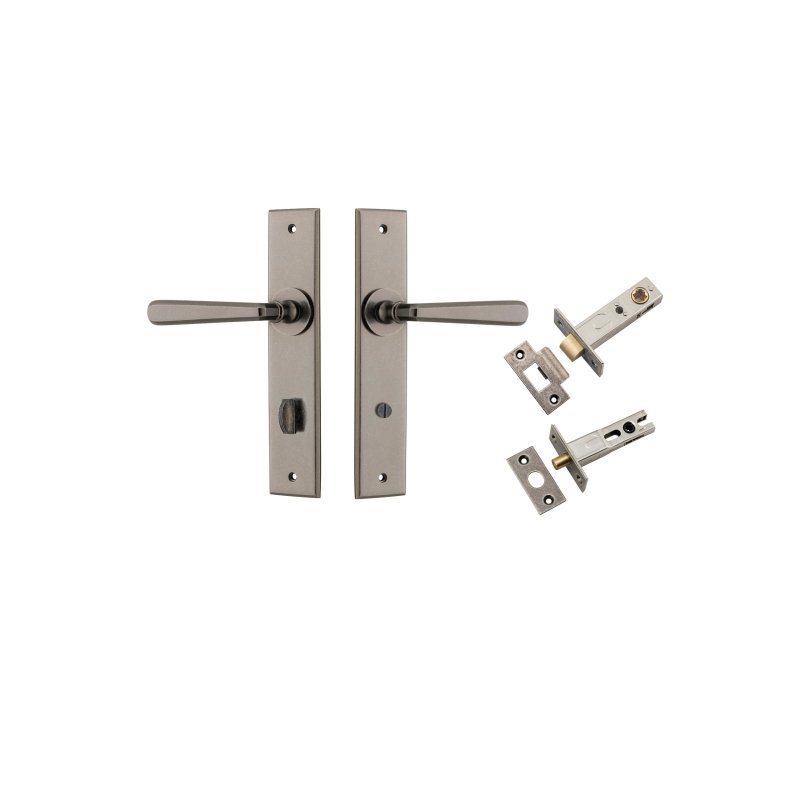

Iver Copenhagen Door Lever on Chamfered Backplate — Separate Privacy Kit
Solid brass. Backplate: H240mm × W50mm. Projection: 59mm. Backset: 60mm. Door type: Timber and aluminium, 35mm–55mm. Fire rated 2 hours AS1530.4:2014. 10-Year Mechanical Warranty. Complete Separate Privacy Kit. Lockable from inside. All fixings included. Hinges sold separately.
Complete Separate Privacy Kit. All components for an internal door lockable from inside. Hinges sold separately.
|
Material
Solid brass
|
Door type
Timber & aluminium
|
Fire rating
2 hours — AS1530.4:2014
|
Warranty
10-Year Mechanical
|
| Warranty | |
| 10-Year Mechanical Warranty | Covers defects in materials and workmanship across all finishes |
| Lifetime Finish Warranty | Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD |
| ⓘ Living finish | Brushed Brass naturally ages and patinas over time — generally excluded from finish defect warranties |
| What’s in the box — Separate Privacy Kit | |
| 2 x Copenhagen Levers on Chamfered Backplate | 1 x Tube Latch Split Cam — Backset 60mm |
| 1 x Privacy Bolt Round — Backset 60mm | 1 x Privacy Adaptor |
| 1 x Face Plate | 1 x Striker Plate |
| 1 x Standard Spindle | 2 x Sprung Spindles |
| 2 x Dust Boxes | 2 x Tie Bolts |
| 20 x Screws | 1 x Drill Template |
| 1 x Instruction Manual | |
| ⓘ Hinges and flush bolts are not included — see the bundle guide below to select what you need. | |
| Bundle guide — what else do you need? | |
| Follow these three steps to build the right kit for your door. | |
| Step 1 — What is your door made of? | |
|
Timber door Most common for internal doors. Installs directly using the included screws. Typical thickness: 35mm – 45mm |
Aluminium door Common for modern or commercial-style homes. May require aluminium-specific fixings — contact us if unsure. Typical thickness: 44mm – 55mm |
| Step 2 — What type of door is it? | |
|
Passage — no locking required Bedrooms, living rooms, studies — doors that simply open and close. You need: Copenhagen Lever on Chamfered Backplate — Passage Kit (Latch — 60mm backset) | |
|
Privacy — lockable from inside only Bathrooms, ensuites, or bedrooms where you want a snib on the inside. You need: Copenhagen Lever on Chamfered Backplate — Privacy Kit (Privacy — 60mm backset) | |
|
Entrance — keyed lock Front or back doors, or any door you want to lock with a key. You need: Copenhagen Lever on Chamfered Backplate — Entrance Kit (Euro — 85mm CTC, 60mm backset) | |
| Door thickness guide — mortice lock selection | |
| 35mm – 40mm | Standard mortice lock |
| 40mm – 55mm | Heavy-duty or long-case mortice lock |
| Key/Thumb | Lock from inside with thumb turn, key from outside (most popular) |
| Key/Key | Lock and unlock from both sides with a key |
| ⓘ Rebated double door? Choose the rebated mortice lock — includes rebate kit | |
| Step 3 — Is it a double door? | |
| Double doors need flush bolts to keep the inactive door secure and prevent rattling. | |
| Standard doors (under 2100mm) | 150mm bolt top + 150mm bolt bottom |
| Taller doors (2100mm and above) | 300mm bolt top + 150mm bolt bottom |
| Flush bolts are available in non-lockable and key-lockable versions. A magnetic catch can be used in place of the bottom bolt if preferred. | |
| Hinges | ||
| Not sure which hinge to choose? Use this as your guide. | ||
|
Ball bearing Entrance and heavier doors Reduces friction, prevents squeaking and wear. |
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications. |
Loose pin Internal use only — ideal for bathrooms Door can be lifted off its hinges in an emergency, even when locked. |
| ⓘ As a general rule: 3 hinges for internal doors, 3 hinges for entrance or heavier doors. | ||
| Specifications | |
| Material | Solid brass |
| Door type | Timber & aluminium |
| Door thickness | 35mm – 55mm |
| Backplate | Chamfered |
| Backplate height | 240mm |
| Backplate width | 50mm |
| Length | 120mm |
| Projection | 59mm |
| Centre to centre | 205mm |
| Backset | 60mm (all functions) |
| Function | Privacy — lockable from inside, 60mm backset |
| Fire rating | 2 hours — AS1530.4:2014 |
| Finish | Brushed Brass |
| Warranty | 10-Year Mechanical Warranty (living finish — excluded from finish warranty) |
| Sold as | Pair |
Available Finishes
Brushed Brass, Brushed Chrome, Distressed Nickel, Matt Black, Polished Chrome, Satin Nickel, Signature Brass
Privacy (Privacy — 60mm backset) — lockable from inside with a snib, no key required. Suited to bathrooms, ensuites and powder rooms.
Entrance (Euro — 85mm CTC, 60mm backset) — locks with a key via euro cylinder. Suited to front and back doors.
Key/Key — key required to lock and unlock from both sides. Suited to rental properties or commercial doors where full key control on both sides is required.
