Iver Euro Mortice Deadbolt Kit | 70mm Backset with Square Euro Escutcheon Key/Thumb
Product code (SKU): 22550K70KTES – 22560K70KTES (by finish)
The Iver Euro Mortice Deadbolt Kit is a complete keyed security solution for residential and commercial entrance doors. This kit pairs the Iver Euro Mortice Deadbolt — 70mm backset — with a 65mm 5-pin Euro cylinder in Key/Thumb function and a pair of square concealed-fix Euro escutcheons, all in a matching Iver finish. A single heavy-duty stainless steel locking bolt extends from the door into the frame, ensuring durability and strength — and with no full body morticing required, installation is quick and simple.
Available Finishes (10) & Product Codes
| Finish | Complete Kit |
|---|---|

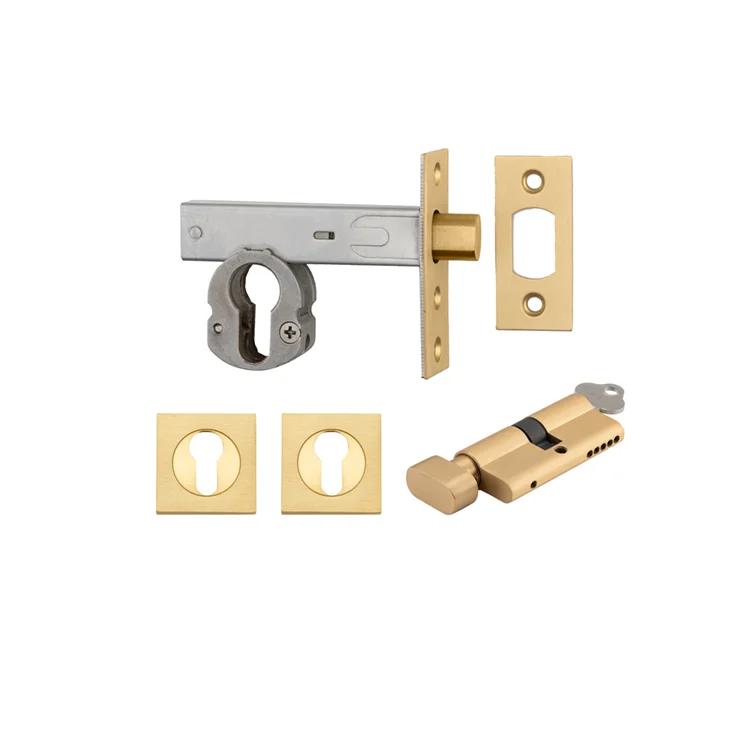

| Signature Brass | 22550K70KTES |

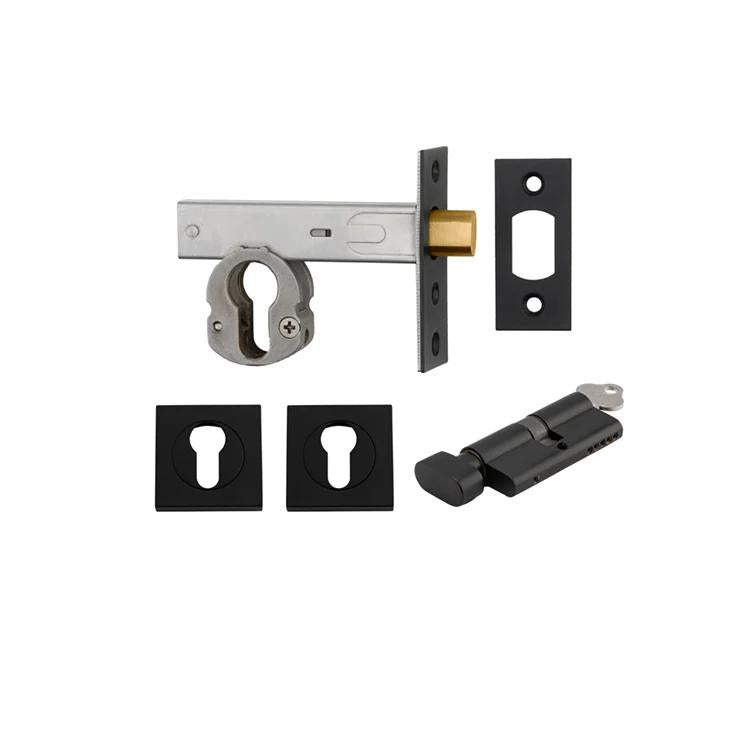

| Matt Black | 22552K70KTES |

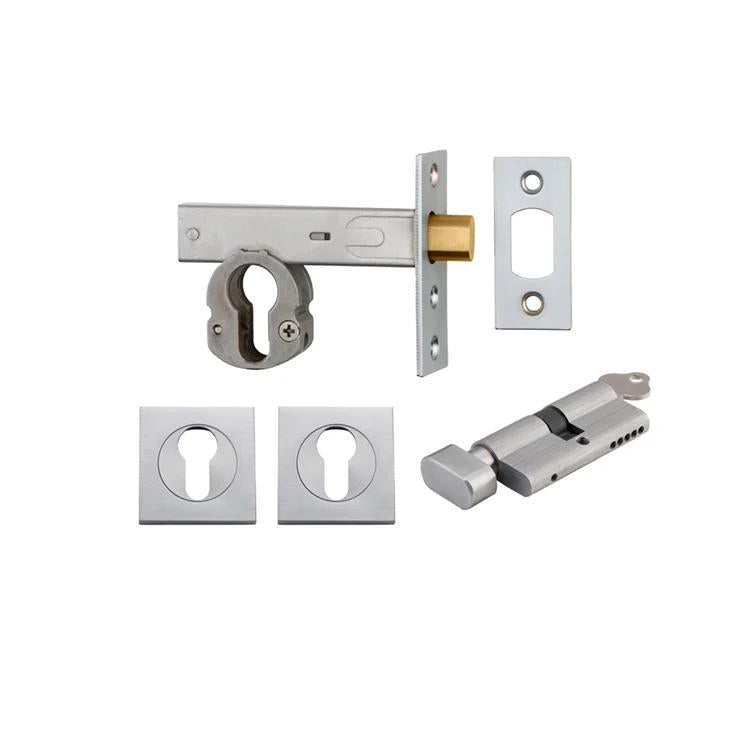

| Brushed Chrome | 22553K70KTES |
| Polished Chrome | 22554K70KTES |
| Brushed Brass | 22555K70KTES |

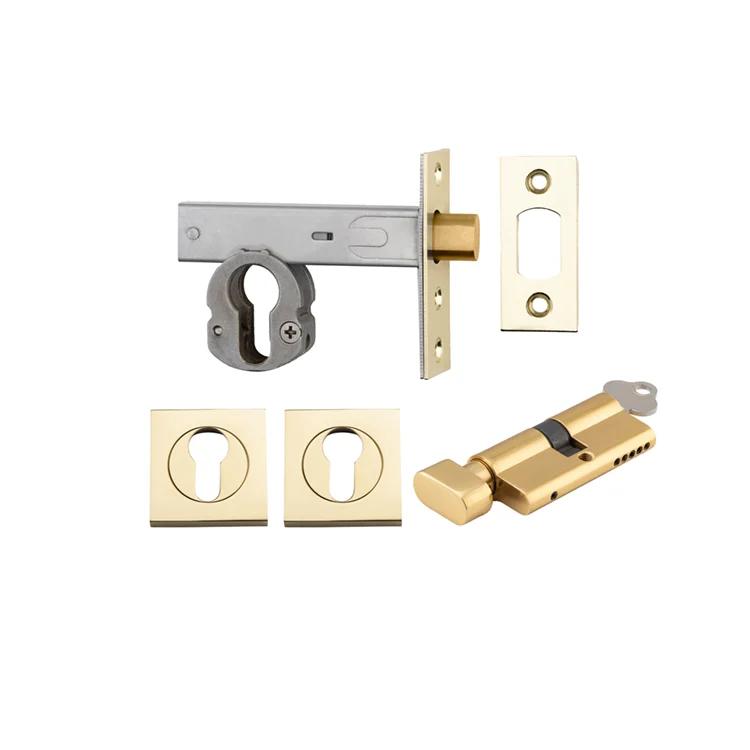

| Polished Brass | 22556K70KTES |

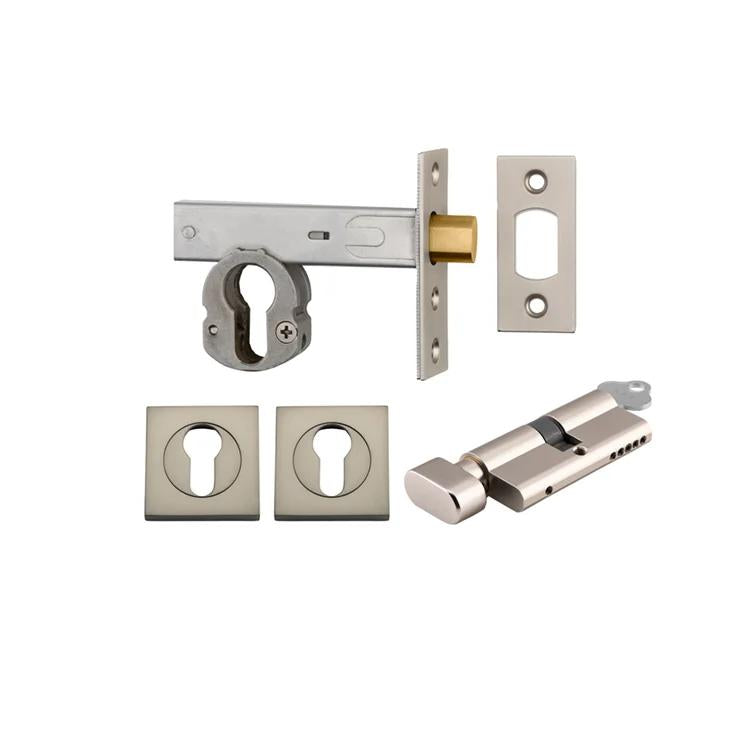

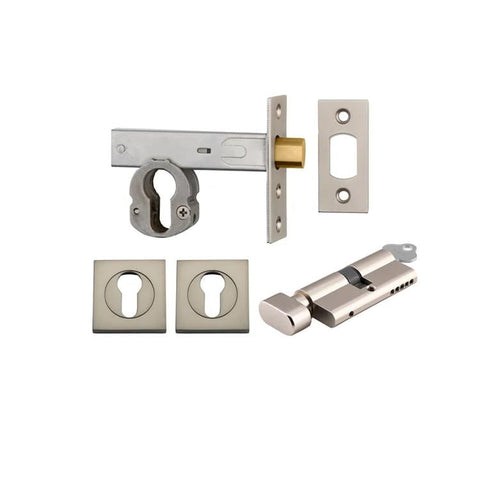

| Satin Nickel | 22557K70KTES |

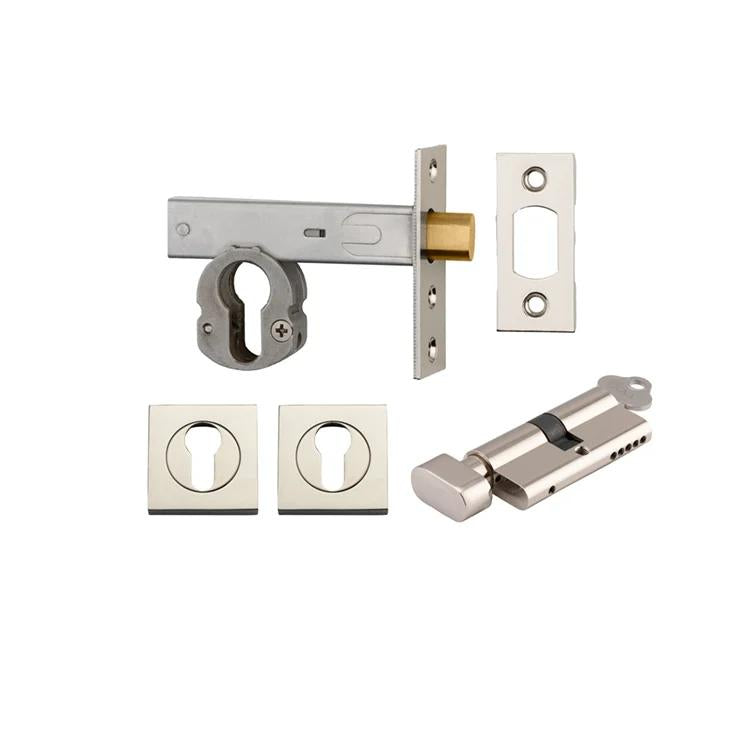

| Polished Nickel | 22558K70KTES |

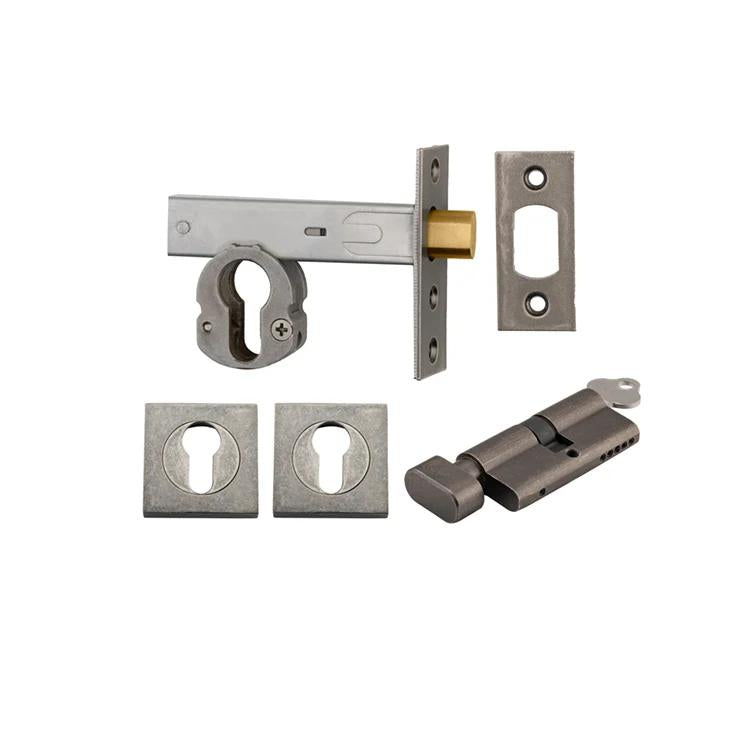

| Distressed Nickel | 22559K70KTES |

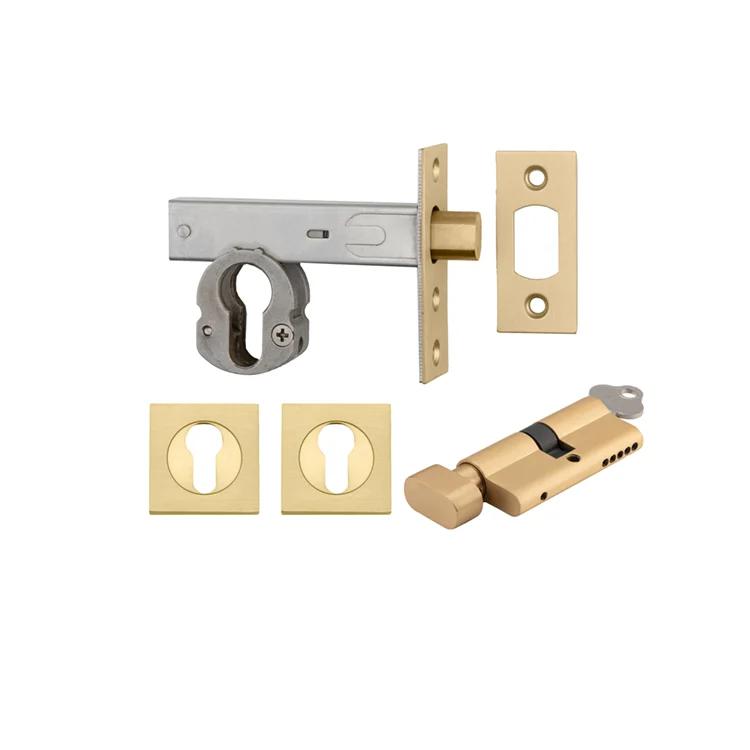

| Brushed Gold PVD | 22560K70KTES |
Where & How to Use
This complete kit is designed for external doors — front entrances, back doors, side gates, garage entry doors and rental properties. Use it as a secondary security lock alongside a lever or pull handle, or as the primary keyed lock on gates and service doors. The Key/Thumb function is keyed outside with a thumb turn inside — ideal for family homes and main entrances where quick exit without a key matters. The 70mm backset suits wider door stiles and framed doors, and with no full body morticing required, installation on timber doors is quick and simple. Everything needed is in the box — pair it with Iver door furniture in the same finish for a coordinated look.

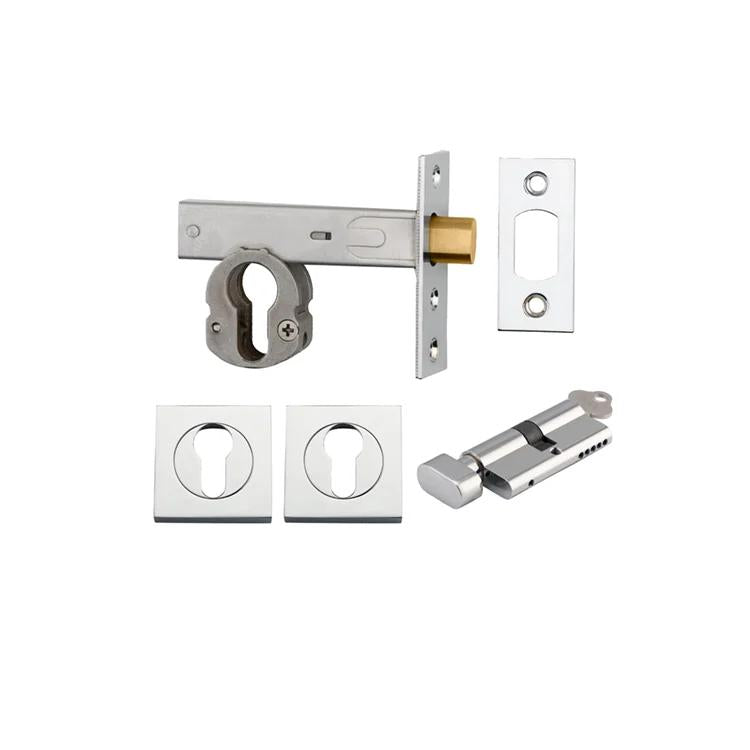

What's in the Box
- Euro mortice deadbolt body with matching face plate
- Striker plate and dust box
- 65mm Euro cylinder (Key/Thumb) with 2 keys
- 2 × square Euro escutcheons with concealed fixings
- Wood screws, connector bolts, fixing bolts & Allen key
Specifications
| Backset | 70mm |
|---|---|
| Deadbolt Size | 75mm H × 26mm W, 88mm projection |
| Bolt | 12mm wide stainless steel, 15mm throw |
| Escutcheon | Square, 52mm, concealed fix, 10mm projection |
| Cylinder | 65mm 5-pin Euro, Key/Thumb |
| Door Thickness | Up to 55mm (extended bolts sold separately) |
| Sold As | Complete kit |
| Warranty | 10-Year Mechanical Warranty |
Warranty
✓ 10-Year Mechanical Warranty
Covers defects in materials and workmanship across all finishes.
✓ Lifetime Finish Warranty
Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD.
ⓘ Living finishes
Finishes such as Polished Brass and Brushed Brass age and patina naturally over time, and are generally excluded from finish-defect cover.
What is the Iver Euro Mortice Deadbolt Kit | 70mm Backset with Square Euro Escutcheon Key/Thumb?
It is the Iver Euro Mortice Deadbolt supplied as a complete kit — 70mm backset with a 65mm Euro cylinder in Key/Thumb function and square Euro escutcheons in a matching finish.
What finishes are available?
It is available in ten finishes: Signature Brass, Matt Black, Brushed Chrome, Polished Chrome, Brushed Brass, Polished Brass, Satin Nickel, Polished Nickel, Distressed Nickel and Brushed Gold PVD — each with its own Iver product code shown in the specifications.
What warranty applies?
Iver provides a 10-Year Mechanical Warranty covering defects in materials and workmanship across all finishes, plus a Lifetime Finish Warranty on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD. Living finishes such as Polished and Brushed Brass develop a natural patina and are excluded from finish-defect coverage.
How can I get help choosing the right kit?
Contact Prime Hardware on 1800 329 028, email us, or visit our Annangrove, NSW showroom and our team will help you choose the right lock, function and finish for your door.
