IVER Guildford Door Knob On Round Rose Concealed Fix | Passage Kit | 9 Finishes

Save 17%
IverSKU: 0254KPASS60
filler

Price:
$183.43 $221

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options
Iver

IVER Guildford Door Knob On Round Rose Concealed Fix | Passage Kit | 9 Finishes

Product code (SKU): 0220KPASS60 – 0254KPASS60 (by finish)

Intro The Iver Guildford Door Knob On Round Rose Concealed Fix combines classic Georgian-inspired reeded detailing with modern functionality. Key Features & Benefits Function: Door knob on round rose with concealed fix mounting Design: Guildford collection with a reeded knob profile inspired by early Georgian architecture

Solid BrassMaterial
9 FinishesAvailable Finishes
61 mmRose Diameter
78 mmProjection

Functions, Kits & What's Included

Each kit is built on the same lever set; only the latch or lock changes.

Kit / Function What’s included SKU suffix
Lever Set Only Includes the lever pair, roses, face-fix wood screws and tie bolts. finish code only
Passage Kit — THIS LISTING ✓ Includes the lever set and a 60 mm backset tube latch. KPASS60
Separate Privacy Kit Includes the lever set, a 60 mm backset tube latch and a separate privacy turn and release. KPRIV60
Entrance Kit — Dual Function (Key/Key) Includes the lever set, a 60 mm backset mortice lock and cylinders keyed on both sides and a matching escutcheon to cover the keyhole on the rose. KENTR60KK

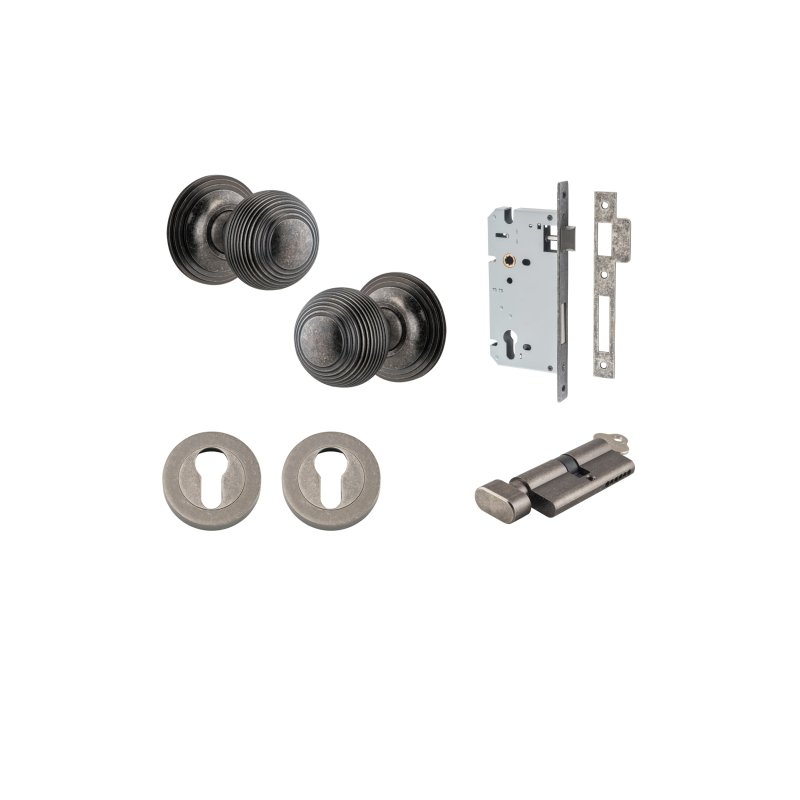

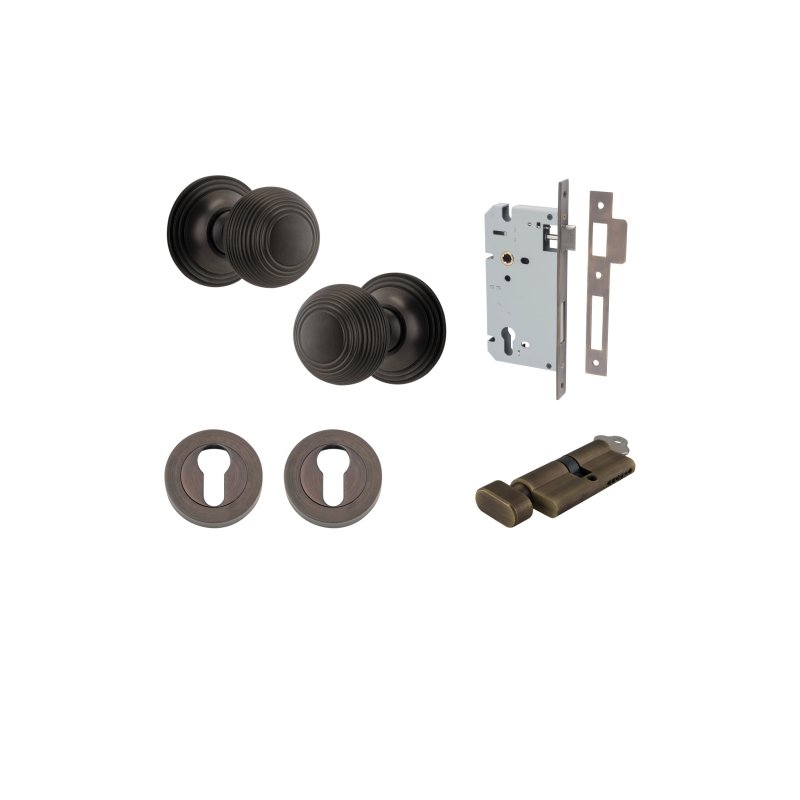

Entrance Kit (Key/Thumb) Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose. KENTR60KT

The full product code for this listing: 0220KPASS60 – 0254KPASS60 depending on finish.

Door Functions Explained

Passage The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes.
Privacy Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms.
Entrance Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit.
Lever set only The handles and roses on their own, with no latch or lock. Choose this if you already have a latch or lock, or are replacing handles only.

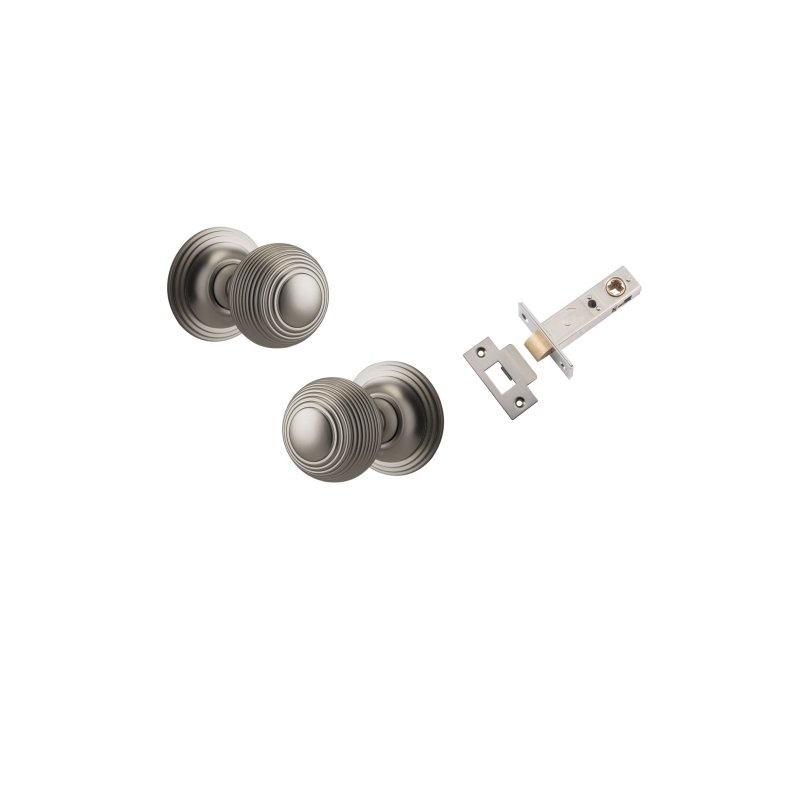

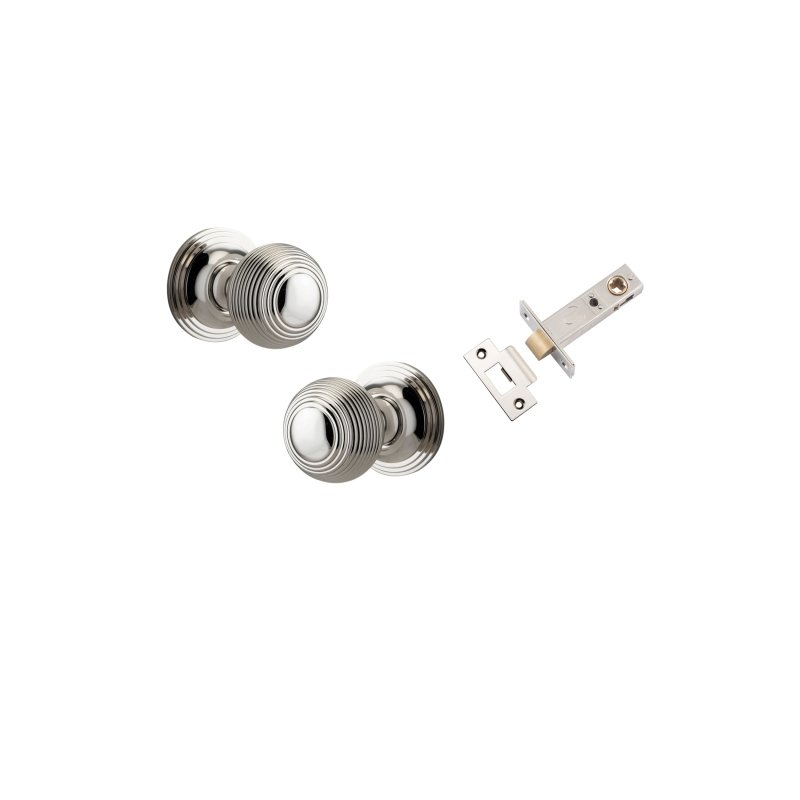

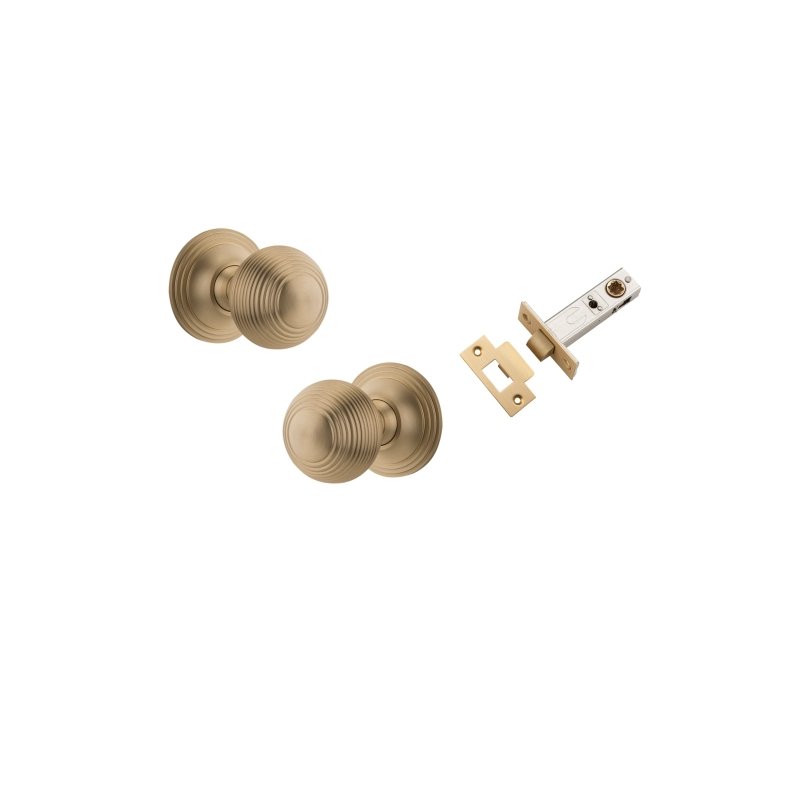

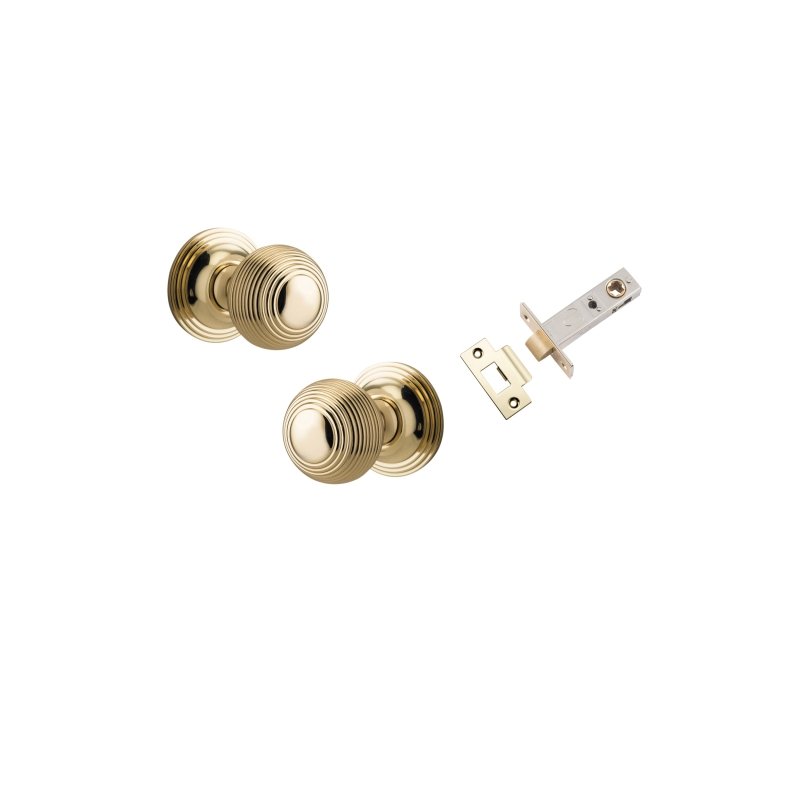

What's in the Box

  • Lever set
  • 60 mm backset tube latch
  • Not included: hinges and flush bolts

Available Finishes (9) & Product Codes

Brushed BrassBrushed ChromeDistressed NickelMatt BlackPolished BrassPolished ChromePolished NickelSatin NickelSignature Brass
Finish Lever Set Only Passage Kit Separate Privacy Kit Entrance Kit — Dual Function (Key/Key) Entrance Kit (Key/Thumb)
Brushed Brass 0254 0254KPASS60 0254KPRIV60 0254KENTR60KK 0254KENTR60KT
Brushed Chrome 0225 0225KPASS60 0225KPRIV60 0225KENTR60KK 0225KENTR60KT
Distressed Nickel 0227 0227KPASS60 0227KPRIV60 0227KENTR60KK 0227KENTR60KT
Matt Black 0223 0223KPASS60 0223KPRIV60 0223KENTR60KK 0223KENTR60KT
Polished Brass 0220 0220KPASS60 0220KPRIV60 0220KENTR60KK 0220KENTR60KT
Polished Chrome 0224 0224KPASS60 0224KPRIV60 0224KENTR60KK 0224KENTR60KT
Polished Nickel 0228 0228KPASS60 0228KPRIV60 0228KENTR60KK 0228KENTR60KT
Satin Nickel 0229 0229KPASS60 0229KPRIV60 0229KENTR60KK 0229KENTR60KT
Signature Brass 0221 0221KPASS60 0221KPRIV60 0221KENTR60KK 0221KENTR60KT

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

Step 1 — What is your door made of?

Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.
Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm latch/lock compatibility with your frame profile.

Step 2 — What type of door is it?

Passage — no lockingBedrooms, living rooms, studies. You need: lever set + tube latch.
Privacy — locks insideBathrooms and ensuites, snib inside. You need: lever set + tube latch + privacy turn (or the Inbuilt Privacy Kit).
Entrance — keyedFront and back doors. You need: lever set + mortice lock. Key/Thumb = key outside, turn inside; Key/Key = key both sides.

Mortice lock by door thickness: 35–40 mm → standard mortice lock; 40–55 mm → heavy-duty or long-case mortice lock. Rebated double door → rebated mortice lock (includes the rebate kit).

Step 3 — Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: 150 mm bolt top and bottom. Doors 2100 mm and above: 300 mm top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable; a magnetic catch can be used in place of the bottom bolt.

Hinges — Which One Do You Need?

Hinge type Best for Why
Ball bearing Entrance and heavier doors Reduces friction and prevents squeaking and wear. Best for high-use doors.
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications.
Loose pin Internal use only — ideal for bathrooms The door can be lifted off its hinges in an emergency, even when locked.

Three hinges per door is standard for internal and entrance doors.

Specifications

Material Solid Brass
Suitable For timber and aluminium doors
Rose Diameter 61 mm
Height 52 mm
Width 52 mm
Projection 78 mm
Warranty 10-Year Mechanical Warranty

Warranty

10-Year Mechanical Warranty

Covers defects in materials and workmanship across all finishes.

Lifetime Finish Warranty

Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD.

Living finishes

Finishes such as Polished Brass and Brushed Brass age and patina naturally over time, and are generally excluded from finish-defect cover.

Frequently Asked Questions
What is the IVER Guildford Door Knob On Round Rose Concealed Fix | Passage Kit | 9 Finishes?

It is the IVER Guildford Door Knob On Round Rose Concealed Fix, supplied as a passage set with tube latch — for doors that open and close without locking.

What's the difference between Passage, Privacy and Entrance?

Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms. Entrance: Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit. This listing is the Passage Kit.

What's the difference between the Inbuilt and Separate Privacy Kits?

The Inbuilt Privacy Kit has the privacy turn built into the rose itself, so the snib sits on the handle rose. The Separate Privacy Kit uses a separate privacy turn and release mounted apart from the handle. Both include a 60 mm backset tube latch.

What is included in the box?

Includes the lever set and a 60 mm backset tube latch. Hinges and flush bolts are not included.

Which hinges do I need?

Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.

Do I need flush bolts?

Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

What finishes are available?

This model is available in Brushed Brass, Brushed Chrome, Distressed Nickel, Matt Black, Polished Brass, Polished Chrome, Polished Nickel, Satin Nickel, Signature Brass. Each finish has its own product code — see the finishes table in the description.

Is it fire rated?

Yes — it is fire rated to 2 hours.

What warranty applies?

Iver hardware carries a 10-Year Mechanical Warranty covering defects in materials and workmanship across all finishes, plus a Lifetime Finish Warranty on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD. Living finishes such as Polished and Brushed Brass patina naturally and are generally excluded from finish-defect cover.

How can I get help choosing the right kit?

Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
