Iver Puerto Door Lever on Round Rose | Entrance Kit (Key/Thumb) | 5 Finishes
Iver Puerto Door Lever on Round Rose | Entrance Kit (Key/Thumb) | 5 Finishes
The Puerto lever is a solid brass door lever on a 52 mm concealed-fix round rose, supplied as a pair. The lever measures 145 mm long with a 61 mm projection and a pill-shaped section. Rose fixing centres are 41.5 mm; euro and privacy punch-outs are 85 mm centre to centre. It suits timber and aluminium doors and takes a 60 mm backset latch or lock. Available in five finishes and six function options. Not fire rated.

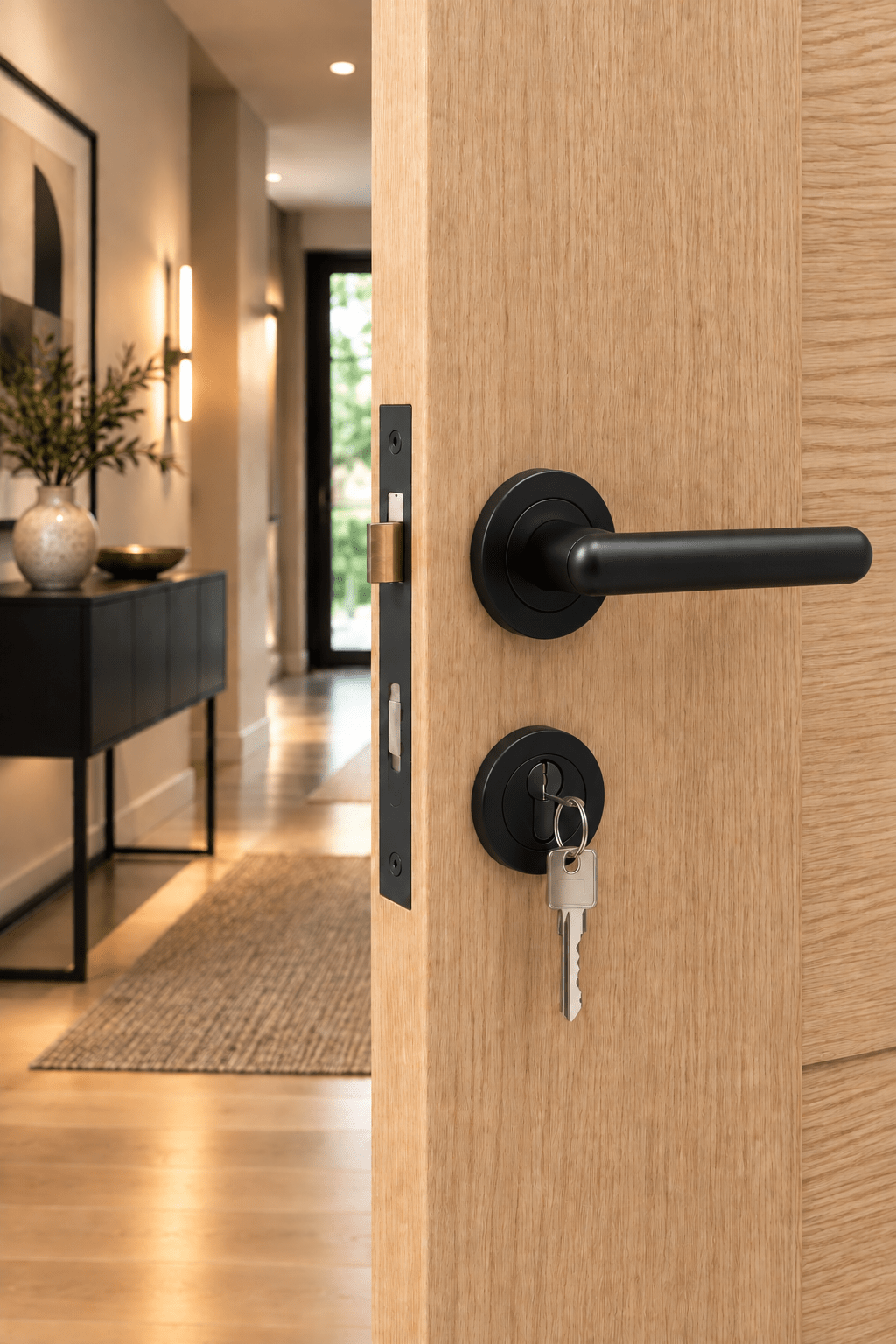

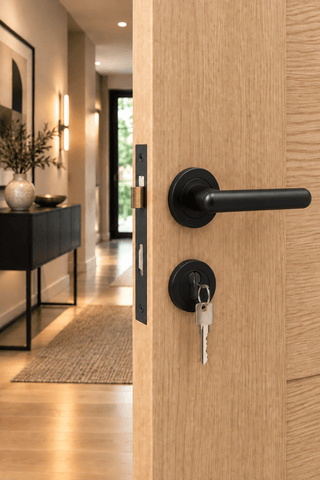

Entrance Kit (Key/Thumb) — Key outside, thumbturn inside. Includes an 85 mm CTC / 60 mm backset euro mortice lock, euro cylinder and two escutcheons. For front and back doors, garage access and storerooms.
Functions, Kits & What’s Included
Every option is built on the same Puerto lever set; only the latch or lock changes.
| Kit / Function | What’s included | SKU suffix |
|---|---|---|
| Lever Set Only | Lever pair and roses only. No latch or lock. For replacing handles on a door that already has a working latch or mortice lock. | finish code only |
| Passage Kit | Non-locking. Includes a 60 mm backset split-cam tube latch. For bedrooms, living rooms, hall doors and laundries. | KPASS60 |
| Inbuilt Privacy Kit | Locks from inside using a privacy pin built into the rose. Includes a 60 mm backset privacy tube latch. For bathrooms, powder rooms, offices and bedrooms. | KIBPRIV60 |
| Separate Privacy Kit | Locks from inside using a separate privacy turn mounted away from the handle. Includes a 60 mm backset tube latch and privacy bolt. For bathrooms, powder rooms and bedrooms. | KPRIV60 |
| Entrance Kit — Dual Function (Key/Key) | Key-locking from both sides. Includes an 85 mm CTC / 60 mm backset euro mortice lock, euro cylinder and two escutcheons. For front and back doors, garage access and storerooms. | KENTR60KK |
| Entrance Kit (Key/Thumb) — THIS LISTING ✓ | Key outside, thumbturn inside. Includes an 85 mm CTC / 60 mm backset euro mortice lock, euro cylinder and two escutcheons. For front and back doors, garage access and storerooms. | KENTR60KT |
The full product code for this listing: 24000KENTR60KT – 24005KENTR60KT depending on finish.
Door Functions Explained
| Passage | The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, hall doors and laundries. |
| Privacy | Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, powder rooms, offices and bedrooms. |
| Entrance | Key-lockable — for front and back doors, garage access, patios and storerooms. Key/Thumb has a key outside and thumbturn inside; Key/Key takes a key on both sides. A matching euro escutcheon covers the keyhole on the rose. |
| Lever set only | The lever pair and roses on their own, with no latch or lock. Choose this if you already have a latch or mortice lock, or are replacing handles only. |
What's in the Box

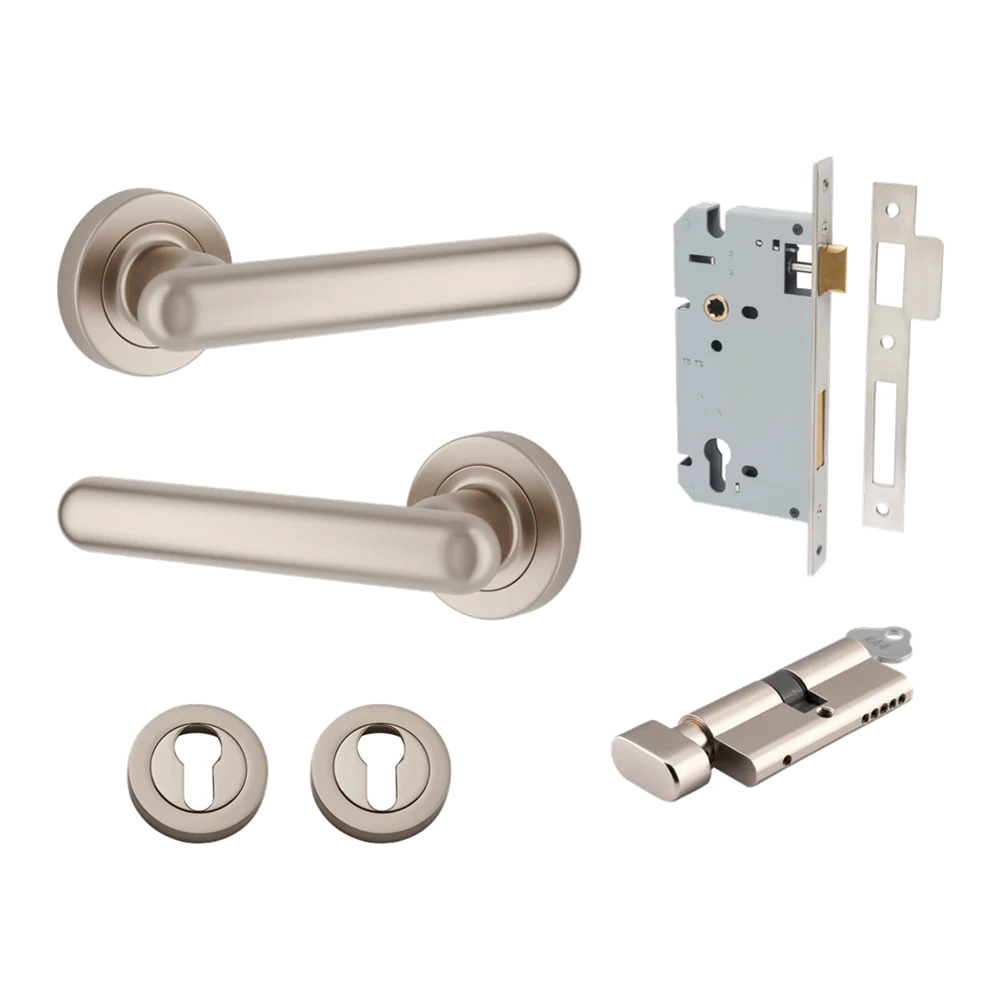

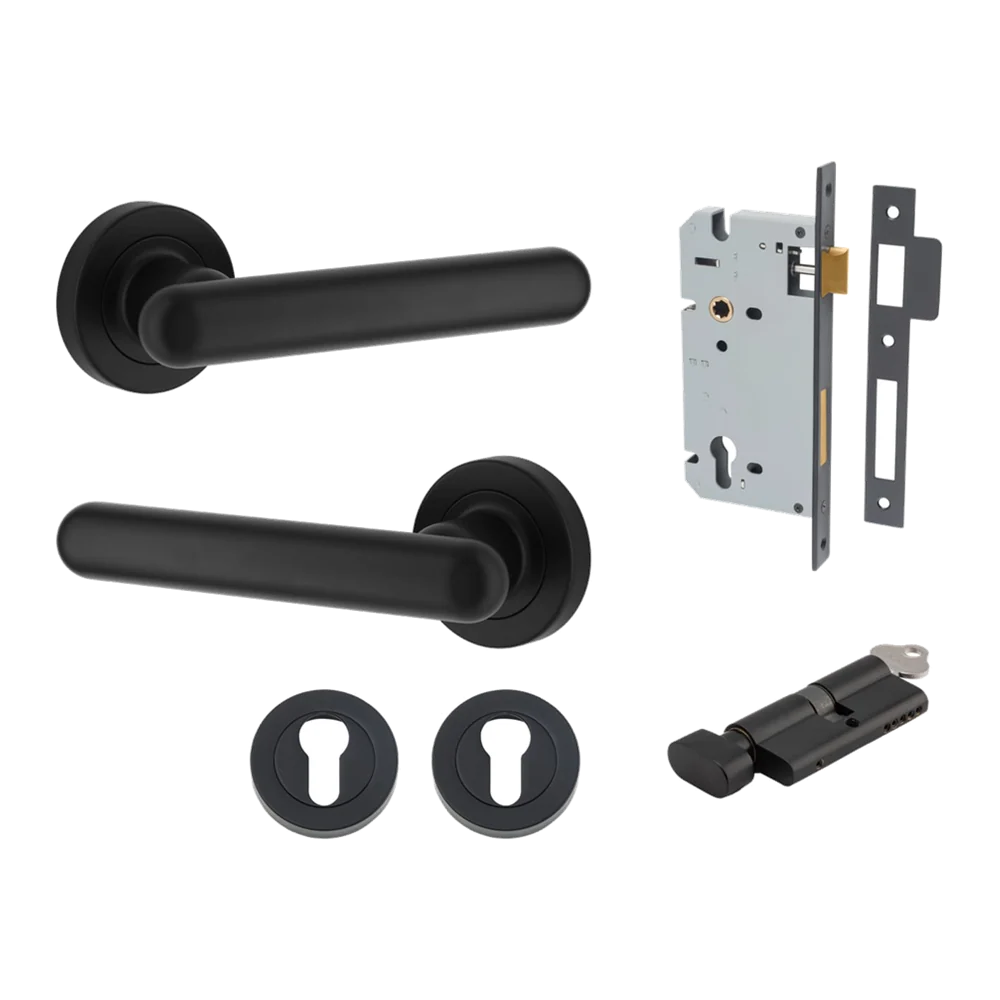

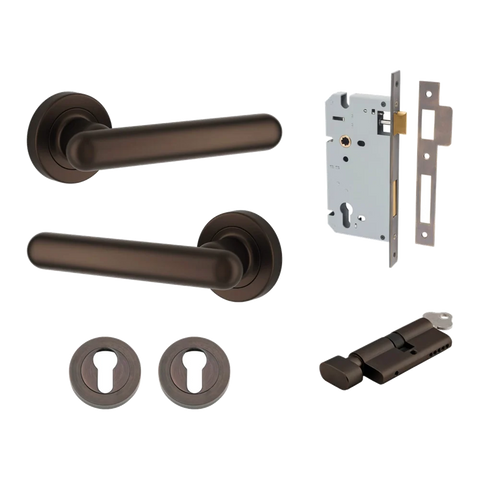

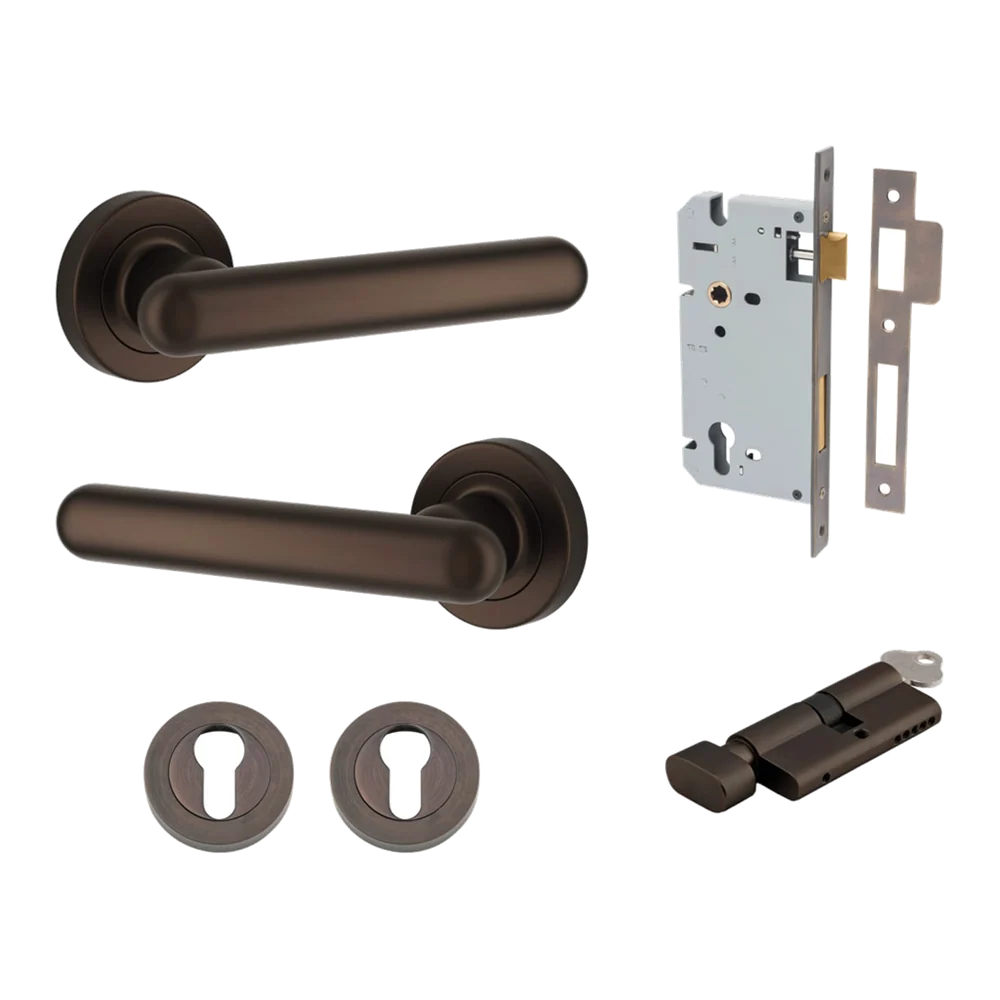

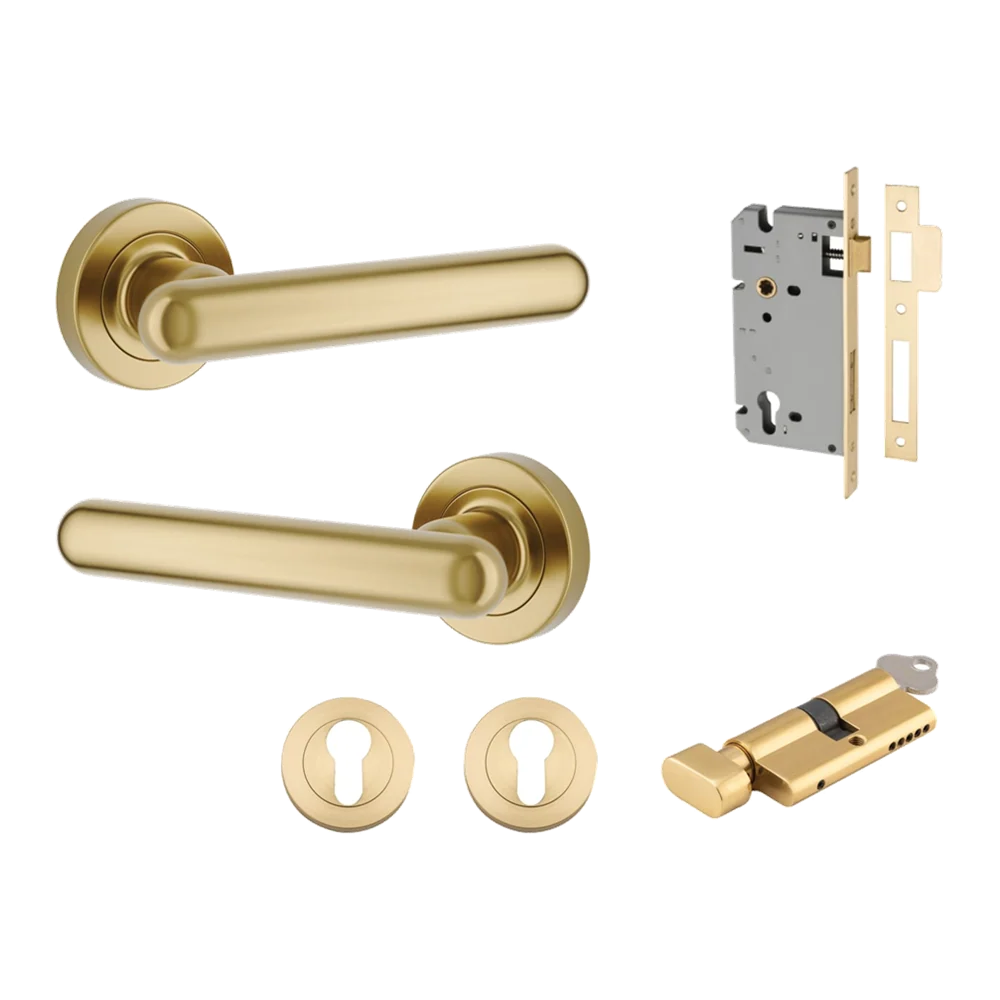

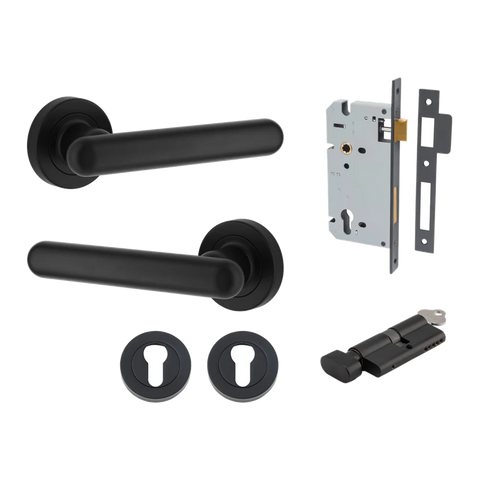

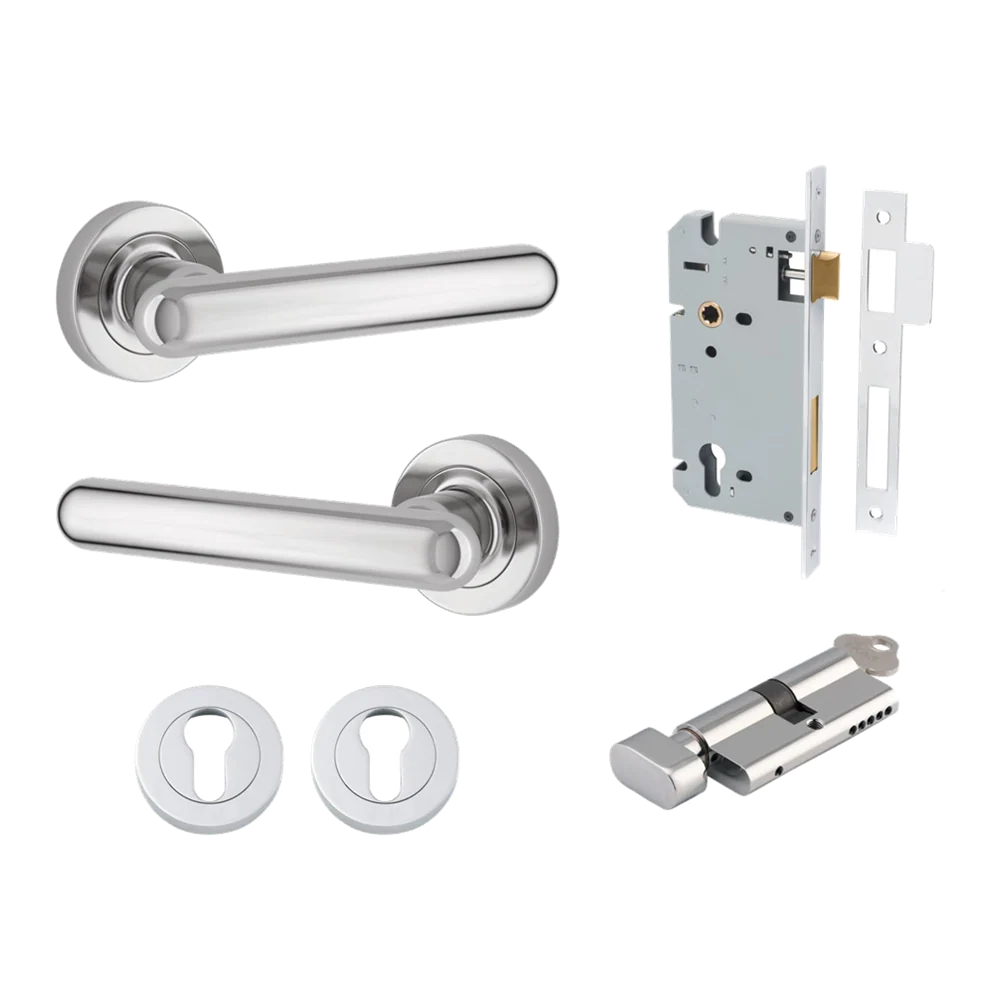

- 2 x Puerto levers on round roses
- 1 x Euro mortice lock, 85 mm CTC, 60 mm backset
- 1 x Face plate
- 1 x Striker plate
- 2 x Euro escutcheon concealed fix round
- 1 x Euro cylinder, key outside / thumbturn inside
- 2 x Keys
- 1 x Standard spindle
- 2 x Sprung spindles
- 37 x Screws
- 1 x Dust box
- 1 x Drill template
- 2 x Instruction manuals
- Not included: Hinges and flush bolts
Please note: the Puerto range is not fire rated. For fire doors, ask our team about Iver ranges tested to AS 1530.4:2014.
Available Finishes (5) & Product Codes
| Finish | Lever Set Only | Passage Kit | Inbuilt Privacy Kit | Separate Privacy Kit | Entrance Kit — Dual Function (Key/Key) | Entrance Kit (Key/Thumb) |
|---|---|---|---|---|---|---|
| Brushed Gold PVD | 24000 | 24000KPASS60 | 24000KIBPRIV60 | 24000KPRIV60 | 24000KENTR60KK | 24000KENTR60KT |
| Matt Black | 24003 | 24003KPASS60 | 24003KIBPRIV60 | 24003KPRIV60 | 24003KENTR60KK | 24003KENTR60KT |
| Polished Chrome | 24004 | 24004KPASS60 | 24004KIBPRIV60 | 24004KPRIV60 | 24004KENTR60KK | 24004KENTR60KT |
| Satin Nickel | 24005 | 24005KPASS60 | 24005KIBPRIV60 | 24005KPRIV60 | 24005KENTR60KK | 24005KENTR60KT |
| Signature Brass | 24002 | 24002KPASS60 | 24002KIBPRIV60 | 24002KPRIV60 | 24002KENTR60KK | 24002KENTR60KT |
Signature Brass is a hand-aged living finish and develops a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the function required and whether it is a double door.
Step 1 — What type of door is it?
Lock sizing: the Puerto round rose takes a 60 mm backset. Euro and privacy punch-outs are 85 mm centre to centre. For a rebated double door, choose a rebated mortice lock (supplied with the rebate kit).
Step 2 — Is it a double door?
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: 150 mm bolt top and bottom. Doors 2100 mm and above: 300 mm top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable; a magnetic catch can be used in place of the bottom bolt.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Reduces friction and prevents squeaking and wear. Best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use only — ideal for bathrooms | The door can be lifted off its hinges in an emergency, even when locked. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Material | Solid brass |
| Backplate Diameter | 52mm |
| Height | 52mm |
| Width | 52mm |
| Length | 145mm |
| Projection | 61mm |
| Backset | 60mm |
| Centre to Centre | 85mm |
| Fire Rating | Not fire rated |
| Sold As | Pair |
| Warranty | 10-Year Mechanical Warranty |
Warranty
Covers defects in materials and workmanship across all finishes.
✓Lifetime Finish WarrantyAvailable on Polished Chrome and Brushed Gold PVD.
ⓘLiving finishSignature Brass is hand-aged and designed to wear and age naturally over time, and is generally excluded from finish-defect cover.
What is the Iver Puerto Door Lever on Round Rose | Entrance Kit (Key/Thumb)?
It is the Puerto lever pair on concealed-fix round roses, supplied as the Entrance Kit (Key/Thumb). Key outside, thumbturn inside. Includes an 85 mm CTC / 60 mm backset euro mortice lock, euro cylinder and two escutcheons. For front and back doors, garage access and storerooms.
What's the difference between Passage, Privacy and Entrance?
Passage: the latch works from both sides at all times and does not lock — for bedrooms, living rooms, hall doors and laundries. Privacy: locks from the inside with a snib or turn and has an emergency release outside — for bathrooms, powder rooms, offices and bedrooms. Entrance: key-lockable for front and back doors, garage access, patios and storerooms. This listing is the Entrance Kit (Key/Thumb).
What's the difference between the Inbuilt and Separate Privacy Kits?
The Inbuilt Privacy Kit has the privacy pin built into the rose itself, so the snib sits on the handle rose and uses a privacy tube latch. The Separate Privacy Kit uses a separate privacy turn and release mounted apart from the handle, with a split-cam tube latch and a privacy bolt. Both use a 60 mm backset.
What is included in the box?
Includes 2 x Puerto levers on round roses; 1 x Euro mortice lock, 85 mm CTC, 60 mm backset; 1 x Face plate; 1 x Striker plate; 2 x Euro escutcheon concealed fix round; 1 x Euro cylinder, key outside / thumbturn inside; 2 x Keys; 1 x Standard spindle; 2 x Sprung spindles; 37 x Screws; 1 x Dust box; 1 x Drill template; 2 x Instruction manuals. Not included: Hinges and flush bolts.
What are the dimensions?
The round rose is 52 mm in diameter. The lever is 145 mm long with a 61 mm projection. Rose fixing centres are 41.5 mm, and the euro and privacy punch-outs are 85 mm centre to centre. The latch or lock backset is 60 mm.
Which hinges do I need?
Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.
Do I need flush bolts?
Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
What finishes are available?
This model is available in Brushed Gold PVD, Matt Black, Polished Chrome, Satin Nickel, Signature Brass. Each finish has its own product code — see the finishes table in the description.
Is it fire rated?
No. The Puerto range is not fire rated. If you need fire-rated door hardware for a fire door, ask our team about the Iver ranges tested to AS 1530.4:2014.
What warranty applies?
Iver hardware carries a 10-Year Mechanical Warranty covering defects in materials and workmanship across all finishes, plus a Lifetime Finish Warranty on Polished Chrome and Brushed Gold PVD. Signature Brass is a hand-aged living finish designed to age naturally over time and is generally excluded from finish-defect cover.
How can I get help choosing the right kit?
Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
