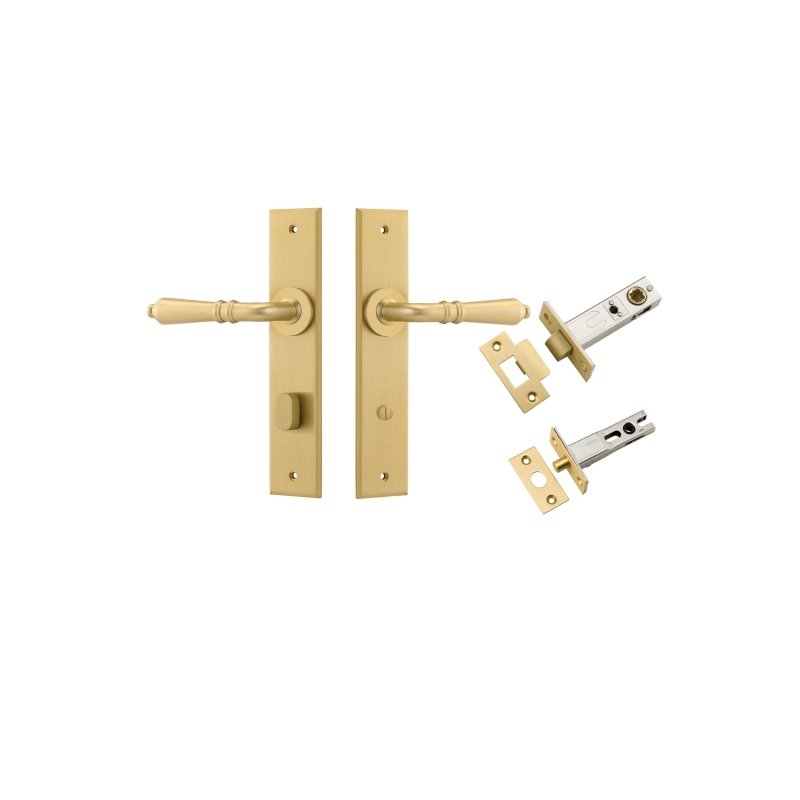

IVER Sarlat Door Lever Handle On Chamfered Backplate | Separate Privacy Kit | 10 Finishes

Save 17%
IverSKU: 16214KPRIV60
filler

Price:
$346.94 $418

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options
Iver

IVER Sarlat Door Lever Handle On Chamfered Backplate | Separate Privacy Kit | 10 Finishes

Product code (SKU): 10780KPRIV60 – TRA10280KPRIV60 (by finish)

Key Features & Benefits Function: Door Lever Handle on Chamfered Backplate Finish: Matt Black

10 FinishesAvailable Finishes
55 mmProjection
111 mmLength

Functions, Kits & What's Included

Each kit is built on the same lever set; only the latch or lock changes.

Kit / Function What’s included SKU suffix
Lever Set Only Includes the lever pair, roses, face-fix wood screws and tie bolts. finish code only
Passage Kit Includes the lever set and a 60 mm backset tube latch. KPASS60
Inbuilt Privacy Kit Includes the lever set with an inbuilt privacy turn on the rose and a 60 mm backset tube latch. P85
Separate Privacy Kit — THIS LISTING ✓ Includes the lever set, a 60 mm backset tube latch and a separate privacy turn and release. KPRIV60
Entrance Kit (Key/Thumb) Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose. E85
Entrance Kit (Key/Thumb) Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose. KENTR60KT
Entrance Kit — Dual Function (Key/Key) Includes the lever set, a 60 mm backset mortice lock and cylinders keyed on both sides and a matching escutcheon to cover the keyhole on the rose. KENTR60KK

The full product code for this listing: 10780KPRIV60 – TRA10280KPRIV60 depending on finish.

Door Functions Explained

Passage The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes.
Privacy Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms.
Entrance Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit.
Lever set only The handles and roses on their own, with no latch or lock. Choose this if you already have a latch or lock, or are replacing handles only.

What's in the Box

  • Lever set
  • A 60 mm backset tube latch
  • Separate privacy turn and release
  • Not included: hinges and flush bolts

Available Finishes (10) & Product Codes

Brushed Gold PVDBrushed BrassBrushed ChromeDistressed NickelMatt BlackPolished BrassPolished ChromePolished NickelSatin NickelSignature Brass
Finish Lever Set Only Passage Kit Inbuilt Privacy Kit Separate Privacy Kit Entrance Kit (Key/Thumb) Entrance Kit (Key/Thumb) Entrance Kit — Dual Function (Key/Key)
Brushed Gold PVD 16214 16214KPASS60 16214P85 16214KPRIV60 16214E85 16214KENTR60KT 16214KENTR60KK
Brushed Brass 15780 15780KPASS60 15780P85 15780KPRIV60 15780E85 15780KENTR60KT 15780KENTR60KK
Brushed Chrome 12280 12280KPASS60 12280P85 12280KPRIV60 12280E85 12280KENTR60KT 12280KENTR60KK
Distressed Nickel 13780 13780KPASS60 13780P85 13780KPRIV60 13780E85 13780KENTR60KT 13780KENTR60KK
Matt Black 12780 12780KPASS60 12780P85 12780KPRIV60 12780E85 12780KENTR60KT 12780KENTR60KK
Polished Brass TRA10280 TRA10280KPASS60 TRA10280P85 TRA10280KPRIV60 TRA10280E85 TRA10280KENTR60KT TRA10280KENTR60KK
Polished Chrome 11780 11780KPASS60 11780P85 11780KPRIV60 11780E85 11780KENTR60KT 11780KENTR60KK
Polished Nickel 14280 14280KPASS60 14280P85 14280KPRIV60 14280E85 14280KENTR60KT 14280KENTR60KK
Satin Nickel 14780 14780KPASS60 14780P85 14780KPRIV60 14780E85 14780KENTR60KT 14780KENTR60KK
Signature Brass 10780 10780KPASS60 10780P85 10780KPRIV60 10780E85 10780KENTR60KT 10780KENTR60KK

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

Step 1 — What is your door made of?

Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.
Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm latch/lock compatibility with your frame profile.

Step 2 — What type of door is it?

Passage — no lockingBedrooms, living rooms, studies. You need: lever set + tube latch.
Privacy — locks insideBathrooms and ensuites, snib inside. You need: lever set + tube latch + privacy turn (or the Inbuilt Privacy Kit).
Entrance — keyedFront and back doors. You need: lever set + mortice lock. Key/Thumb = key outside, turn inside; Key/Key = key both sides.

Mortice lock by door thickness: 35–40 mm → standard mortice lock; 40–55 mm → heavy-duty or long-case mortice lock. Rebated double door → rebated mortice lock (includes the rebate kit).

Step 3 — Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: 150 mm bolt top and bottom. Doors 2100 mm and above: 300 mm top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable; a magnetic catch can be used in place of the bottom bolt.

Hinges — Which One Do You Need?

Hinge type Best for Why
Ball bearing Entrance and heavier doors Reduces friction and prevents squeaking and wear. Best for high-use doors.
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications.
Loose pin Internal use only — ideal for bathrooms The door can be lifted off its hinges in an emergency, even when locked.

Three hinges per door is standard for internal and entrance doors.

Specifications

Height 240 mm
Width 50 mm
Length 111 mm
Projection 55 mm
Spindle and
Warranty 10-Year Mechanical Warranty

Warranty

10-Year Mechanical Warranty

Covers defects in materials and workmanship across all finishes.

Lifetime Finish Warranty

Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD.

Living finishes

Finishes such as Polished Brass and Brushed Brass age and patina naturally over time, and are generally excluded from finish-defect cover.

Frequently Asked Questions
What is the IVER Sarlat Door Lever Handle On Chamfered Backplate | Separate Privacy Kit | 10 Finishes?

It is the IVER Sarlat Door Lever Handle On Chamfered Backplate, supplied as a privacy set with a separate privacy turn and emergency release, with tube latch — for bathrooms, ensuites and bedrooms.

What's the difference between Passage, Privacy and Entrance?

Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms. Entrance: Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit. This listing is the Separate Privacy Kit.

What's the difference between the Inbuilt and Separate Privacy Kits?

The Inbuilt Privacy Kit has the privacy turn built into the rose itself, so the snib sits on the handle rose. The Separate Privacy Kit uses a separate privacy turn and release mounted apart from the handle. Both include a 60 mm backset tube latch. This listing is the Separate Privacy Kit.

What is included in the box?

Includes the lever set, a 60 mm backset tube latch and a separate privacy turn and release. Hinges and flush bolts are not included.

Which hinges do I need?

Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.

Do I need flush bolts?

Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

What finishes are available?

This model is available in Brushed Gold PVD, Brushed Brass, Brushed Chrome, Distressed Nickel, Matt Black, Polished Brass, Polished Chrome, Polished Nickel, Satin Nickel, Signature Brass. Each finish has its own product code — see the finishes table in the description.

What warranty applies?

Iver hardware carries a 10-Year Mechanical Warranty covering defects in materials and workmanship across all finishes, plus a Lifetime Finish Warranty on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD. Living finishes such as Polished and Brushed Brass patina naturally and are generally excluded from finish-defect cover.

How can I get help choosing the right kit?

Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
