IVER Sarlat Lever Door Handle On Rectangular Backplate | Entrance Lever Set Only | 10 Finishes

Save 17%
IverSKU: 16200E85
filler

Price:
$248.17 $299

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options
Iver

IVER Sarlat Lever Door Handle On Rectangular Backplate | Entrance Lever Set Only | 10 Finishes

Product code (SKU): 10200E85 – 16200E85 (by finish)

Mounted on a clean rectangular backplate — a long-plate format that brings architectural refinement and a polished finish to any door. Crafted from solid brass and fire rated to 2 hours to meet Australian Standard AS1530.4:2014.

Solid BrassMaterial
10 FinishesAvailable Finishes
205mmCentre To Centre
35mm – 55mmDoor Thickness

Functions, Kits & What's Included

Each kit is built on the same lever set; only the latch or lock changes.

Kit / Function What’s included SKU suffix
Lever Set Only Includes the lever pair, roses, face-fix wood screws and tie bolts. finish code only
Passage Kit Includes the lever set and a 60 mm backset tube latch. KPASS60
Inbuilt Privacy Kit Includes the lever set with an inbuilt privacy turn on the rose and a 60 mm backset tube latch. P85
Separate Privacy Kit Includes the lever set, a 60 mm backset tube latch and a separate privacy turn and release. KPRIV60

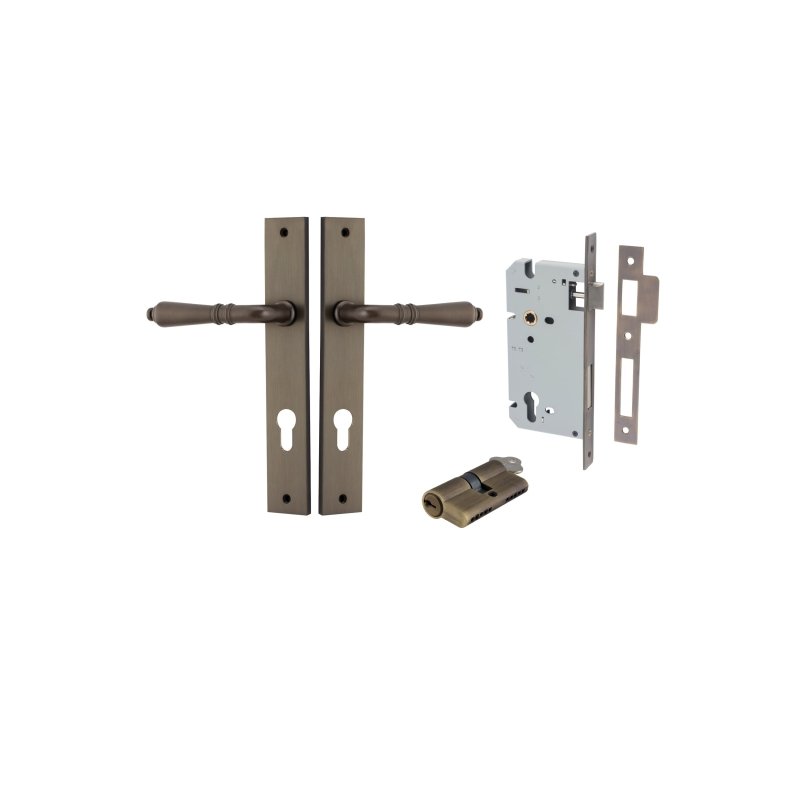

Entrance Kit (Key/Thumb) Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose. E85
Entrance Kit (Key/Thumb) Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose. KENTR60KT
Entrance Kit — Dual Function (Key/Key) Includes the lever set, a 60 mm backset mortice lock and cylinders keyed on both sides and a matching escutcheon to cover the keyhole on the rose. KENTR60KK

The full product code is the finish code plus the kit suffix — e.g. a Brushed Gold PVD Passage Kit is 16200. Full codes for every finish and kit are listed below.

Door Functions Explained

Passage The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes.
Privacy Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms.
Entrance Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit.
Lever set only The handles and roses on their own, with no latch or lock. Choose this if you already have a latch or lock, or are replacing handles only.

What's in the Box

  • 1 pair of levers (or knobs) with roses / backplates
  • Face-fix wood screws and tie bolts
  • The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
  • Entrance kits on rose handles also include a matching escutcheon to cover the keyhole
  • Not included: hinges and flush bolts

Available Finishes (10) & Product Codes

Brushed Gold PVDBrushed BrassBrushed ChromeDistressed NickelMatt BlackPolished BrassPolished ChromePolished NickelSatin NickelSignature Brass
Finish Lever Set Only Passage Kit Inbuilt Privacy Kit Separate Privacy Kit Entrance Kit (Key/Thumb) Entrance Kit (Key/Thumb) Entrance Kit — Dual Function (Key/Key)

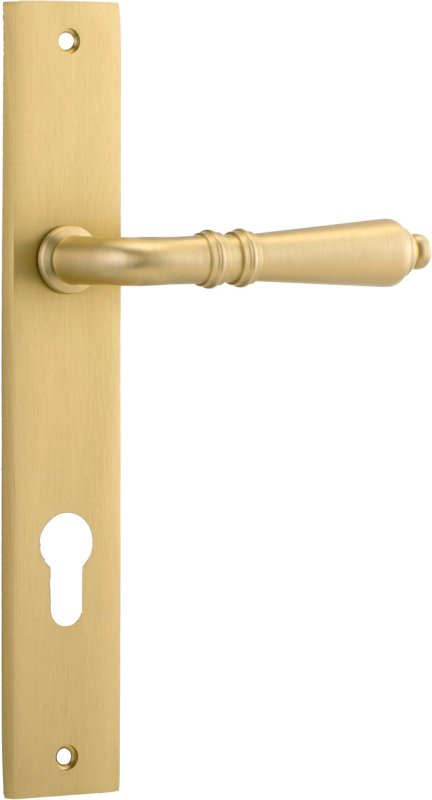

Brushed Gold PVD 16200 16200KPASS60 16200P85 16200KPRIV60 16200E85 16200KENTR60KT 16200KENTR60KK
Brushed Brass 15200 15200KPASS60 15200P85 15200KPRIV60 15200E85 15200KENTR60KT 15200KENTR60KK
Brushed Chrome 12200 12200KPASS60 12200P85 12200KPRIV60 12200E85 12200KENTR60KT 12200KENTR60KK

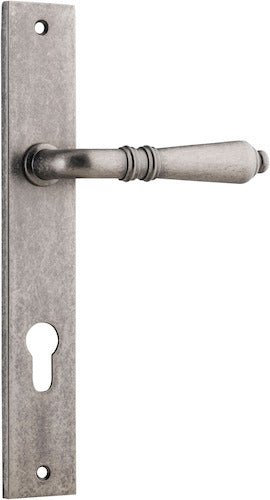

Distressed Nickel 13700 13700KPASS60 13700P85 13700KPRIV60 13700E85 13700KENTR60KT 13700KENTR60KK
Matt Black 12700 12700KPASS60 12700P85 12700KPRIV60 12700E85 12700KENTR60KT 12700KENTR60KK

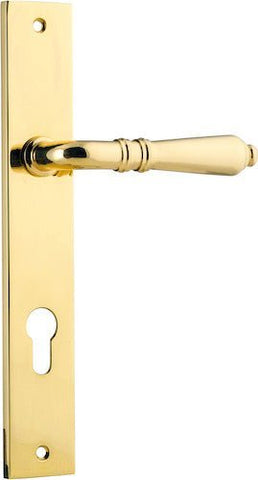

Polished Brass 10200 10200KPASS60 10200P85 10200KPRIV60 10200E85 10200KENTR60KT 10200KENTR60KK
Polished Chrome 11700 11700KPASS60 11700P85 11700KPRIV60 11700E85 11700KENTR60KT 11700KENTR60KK
Polished Nickel 14200 14200KPASS60 14200P85 14200KPRIV60 14200E85 14200KENTR60KT 14200KENTR60KK
Satin Nickel 14700 14700KPASS60 14700P85 14700KPRIV60 14700E85 14700KENTR60KT 14700KENTR60KK
Signature Brass 10700 10700KPASS60 10700P85 10700KPRIV60 10700E85 10700KENTR60KT 10700KENTR60KK

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

Step 1 — What is your door made of?

Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.
Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm latch/lock compatibility with your frame profile.

Step 2 — What type of door is it?

Passage — no lockingBedrooms, living rooms, studies. You need: lever set + tube latch.
Privacy — locks insideBathrooms and ensuites, snib inside. You need: lever set + tube latch + privacy turn (or the Inbuilt Privacy Kit).
Entrance — keyedFront and back doors. You need: lever set + mortice lock. Key/Thumb = key outside, turn inside; Key/Key = key both sides.

Mortice lock by door thickness: 35–40 mm → standard mortice lock; 40–55 mm → heavy-duty or long-case mortice lock. Rebated double door → rebated mortice lock (includes the rebate kit).

Step 3 — Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: 150 mm bolt top and bottom. Doors 2100 mm and above: 300 mm top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable; a magnetic catch can be used in place of the bottom bolt.

Hinges — Which One Do You Need?

Hinge type Best for Why
Ball bearing Entrance and heavier doors Reduces friction and prevents squeaking and wear. Best for high-use doors.
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications.
Loose pin Internal use only — ideal for bathrooms The door can be lifted off its hinges in an emergency, even when locked.

Three hinges per door is standard for internal and entrance doors.

Specifications

Material Solid brass
Door Type Timber & aluminium
Door Thickness 35mm – 55mm
Height 240mm
Width 38mm
Length 117mm
Projection 55mm
Centre To Centre 205mm
Sold As Pair
Warranty 10-Year Mechanical Warranty

Warranty

10-Year Mechanical Warranty

Covers defects in materials and workmanship across all finishes.

Lifetime Finish Warranty

Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD.

Living finishes

Finishes such as Polished Brass and Brushed Brass age and patina naturally over time, and are generally excluded from finish-defect cover.

Frequently Asked Questions
What is the IVER Sarlat Lever Door Handle On Rectangular Backplate | Entrance Lever Set Only | 10 Finishes?

It is the IVER Sarlat Lever Door Handle On Rectangular Backplate, supplied as the entrance (keyhole) configuration lever set only — handles and plates with no lock or cylinder included, for use with your existing lock.

What's the difference between Passage, Privacy and Entrance?

Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms. Entrance: Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit. This listing is the Entrance Lever Set Only.

What's the difference between the Inbuilt and Separate Privacy Kits?

The Inbuilt Privacy Kit has the privacy turn built into the rose itself, so the snib sits on the handle rose. The Separate Privacy Kit uses a separate privacy turn and release mounted apart from the handle. Both include a 60 mm backset tube latch.

What is included in the box?

A pair of levers (or knobs) with roses/backplates, face-fix wood screws and tie bolts, plus the latch or lock that comes with the kit you select. Hinges and flush bolts are not included.

Which hinges do I need?

Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.

Do I need flush bolts?

Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

What finishes are available?

This model is available in Brushed Gold PVD, Brushed Brass, Brushed Chrome, Distressed Nickel, Matt Black, Polished Brass, Polished Chrome, Polished Nickel, Satin Nickel, Signature Brass. Each finish has its own product code — see the finishes table in the description.

What door thickness does it suit?

It suits doors 35mm – 55mm. Check your door thickness before choosing a mortice lock — 35–40 mm takes a standard lock and 40–55 mm a heavy-duty or long-case lock.

Is it fire rated?

Yes — it is fire rated to 2 hours — AS 1530.4:2014.

What warranty applies?

Iver hardware carries a 10-Year Mechanical Warranty covering defects in materials and workmanship across all finishes, plus a Lifetime Finish Warranty on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD. Living finishes such as Polished and Brushed Brass patina naturally and are generally excluded from finish-defect cover.

How can I get help choosing the right kit?

Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
