Description

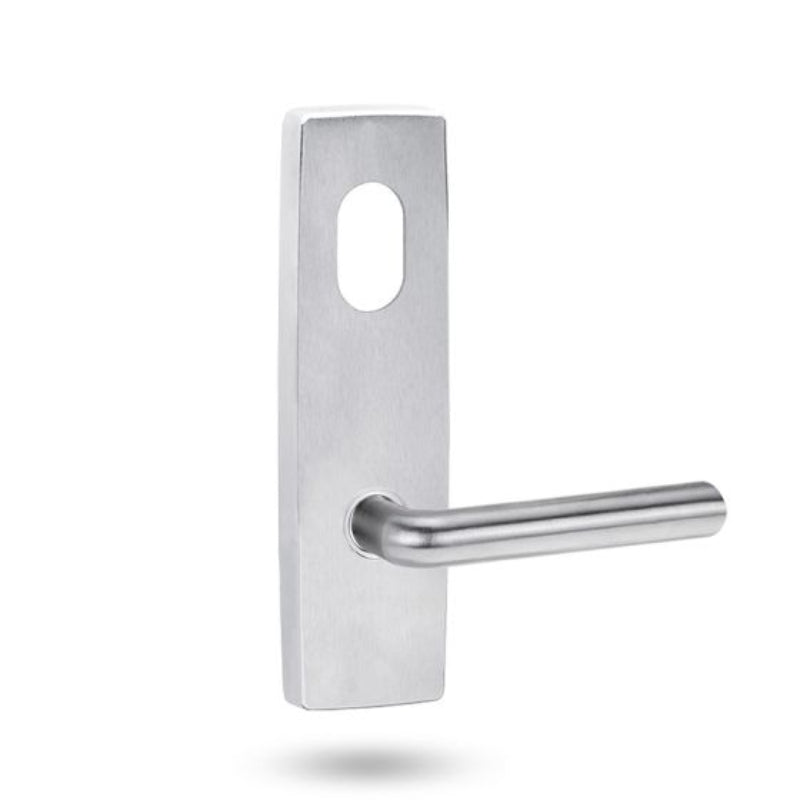

The Lockwood 1801 Exterior Square End Plate with Cylinder Hole and Lever 104 in Architectural Bronze finish combines durability with a sophisticated aesthetic tailored for external door applications. The plate dimensions are 166mm x 48mm x 12mm, designed to fit timber doors with thicknesses from 32mm to 50mm. Made from solid brass, it features an architectural bronze coating that offers superior resistance to corrosion and environmental wear, making it ideal for outdoor use. The end plate includes an oval cylinder hole to accommodate Lockwood 3570 series mortice locks and an ergonomically designed 104 lever for comfortable and efficient operation. Concealed fixing ensures a clean and secure installation. This hardware meets fire safety standards and accessibility requirements, providing a reliable, stylish, and robust solution for exterior door hardware needs. SKU 1801/104AZ.
The Lockwood 1800 Series Square End Plate with 104 Lever is a premium door furniture solution designed for high-traffic environments such as offices, institutions, and public buildings. This configuration includes a cylinder hole and the 104 lever, known for its elongated, cylindrical design that combines style with ergonomic functionality. The Architectural Bronze finish adds a rich, timeless aesthetic suitable for both modern and traditional interiors.
Key Features:
- Material: Solid brass construction for strength and durability
- Finish: Architectural Bronze – elegant, corrosion-resistant, and ideal for high-end applications
- Lever Style: 104 Lever – elongated cylindrical design for a sleek, modern look
- Plate Design: Square end with a precision-machined cylinder hole
- Compatibility: Designed for use with Lockwood Selector 3770 and Synergy 3570 Series mortice locks
- Fixing: Concealed fixing for external plates; internal plates must be visible fixed if external is concealed
- Application: Suitable for commercial, institutional, and architectural settings
- Fire Rating: Complies with Australian fire safety standards
Dimensions:
- Plate: 166mm (H) x 48mm (W) x 12mm (D)
- Lever: 133.8mm length, 57.5mm projection, 40mm finger clearance
- Included: Supplied with fixing screws and installation instructions
| Model No | 1801/104AZ |
|---|---|
| EAN | 9340116108964 |
| Handle Type | Lever 104 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
