Description

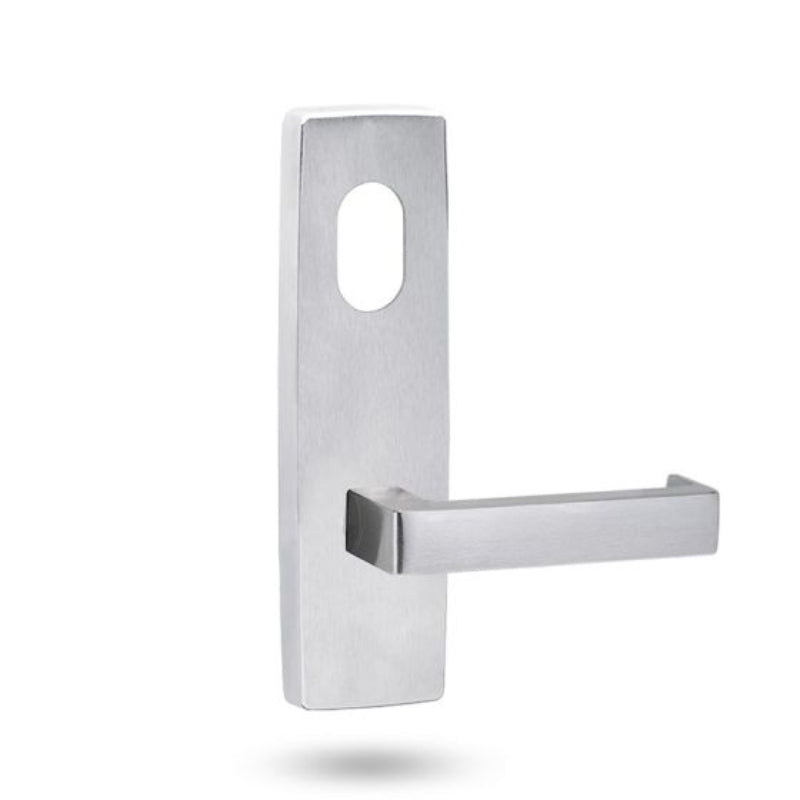

The Lockwood 1801 Square End Plate with Cylinder Hole and 116 Lever in Satin Chrome finish is a high-quality door hardware solution designed for commercial and residential doors. Made from solid brass, the satin chrome coating provides excellent corrosion resistance and a sleek, contemporary look. The plate measures approximately 166mm x 48mm x 12mm and fits timber doors with thicknesses ranging from 32mm to 50mm. It features an oval cylinder hole compatible with Lockwood 3570 series mortice locks. The 116 lever is ergonomically designed for comfortable and smooth operation. Concealed fixing ensures a clean and secure installation. This hardware meets fire safety and accessibility standards, delivering a reliable and stylish option for a variety of door applications. SKU 1801/116SC.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
The Lockwood Lever 116 shows how style and imagination combine to make a lever with a difference.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever 116
- External plate with concealed fixing (screws included)
- Cylinder hole (cylinder not included)
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 140.5mm
Projection: 58mm
Finger clearance: 40mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1801/116SC |
|---|---|
| EAN | 9340116073361 |
| Handle Type | Lever 116 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
