Description

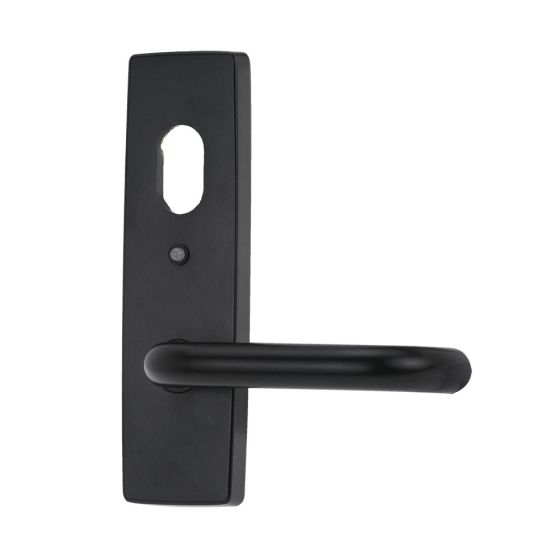

The Lockwood 1820 Square End Plate with Cylinder Hole, LED Indicator, and 70 Lever in polyester powdercoat finish is a durable and corrosion-resistant door hardware solution designed for timber doors with thicknesses from 32mm to 50mm. The solid brass rectangular plate measures approximately 166mm by 48mm by 12mm. The polyester powdercoat finish provides a tough, matte surface that helps protect the polished brass underneath from wear and environmental factors, making it ideal for high-traffic and demanding environments. Features include a cylinder hole for lock compatibility, an LED indicator for clear visual occupancy and status, and an ergonomically designed 70 lever for reliable and comfortable operation. Concealed fixing screws allow for a clean and professional installation. This Lockwood product meets Australian standards for quality, security, and fire resistance, making it well suited for commercial and residential applications.
This square end plate combines a cylinder hole, integrated LED indicator, and the ergonomic 70 lever, making it ideal for commercial and institutional applications requiring both security and visual status indication. Designed for use with Lockwood Synergy and Selector Series mortice locks, it offers a robust and accessible solution for modern door systems.
Key Features
- Cylinder Hole: Accommodates oval cylinders for secure locking.
- LED Indicator: Provides clear visual feedback for occupancy or lock status.
- Ergonomic Lever 70: Designed for comfort and accessibility, compliant with AS1428.1.
- Durable Construction: Suitable for high-traffic environments.
- Modular Compatibility: Works with Lockwood 3570 Series Mortice Locks.
- Back-to-Back Mounting: If the external plate is concealed fixed, the internal must be visible fixed.
- Visible Fixing: Simplifies installation and maintenance.
- Fire Rated: Complies with AS1905.1:2005 for up to 4 hours.
- Cycle Tested: Rated for 500,000 cycles under AS4145.2-2008.
- Door Thickness Range: 32mm to 50mm
- Non-Handed Desigan: Suitable for left- or right-hand doors.
| Model No | 1820/70PC |
|---|---|
| EAN | 9311847169296 |
| Handle Type | Lever 70 |
| Handing | Reversible |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Tested to Standards | Tested to Australian Standard |
| Door Thickness Range | MIN 32mm |
