Description

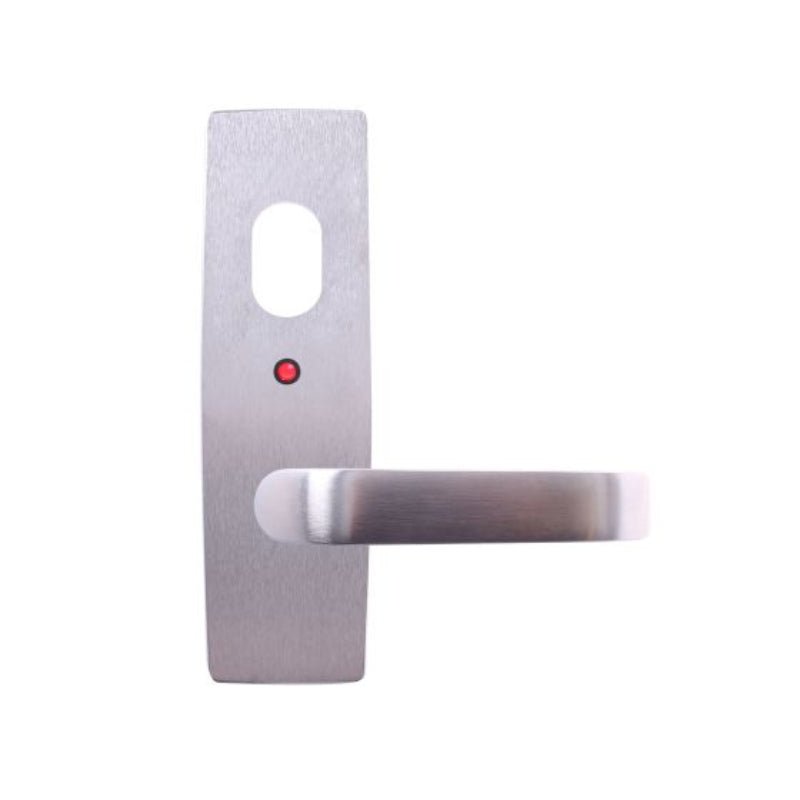

The Lockwood 1820 Square End Plate with Cylinder Hole, LED Indicator, and 74 Lever in satin chrome finish is a stylish and robust door hardware solution designed for commercial and residential timber doors with thicknesses from 32mm to 50mm. The rectangular solid brass plate measures approximately 166mm by 48mm by 12mm and features a satin chrome finish known for its smooth matte appearance and excellent corrosion resistance. Key features include a cylinder hole for lock compatibility, an LED indicator for clear visual status, and a 74 lever designed for ergonomic use and durability. The plate supports an adjustable tail bar mechanism that automatically adjusts to suit door thickness, ensuring a secure fit. Concealed fixing screws provide a clean professional installation. This Lockwood product meets Australian standards for security and fire resistance, making it suitable for high-use environments.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
Chunky, funky and functional, the Lockwood Lever Ving means business. A strong design statement, ideal for numerous heavy duty applications.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever Ving 74
- External plate with concealed fixing (screws included)
- Oval turn with LED
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 120mm
Projection: 65mm
Finger clearance: 48mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1820/74SC |
|---|---|
| EAN | 9340116024585 |
| Handle Type | Lever 74 |
