Description

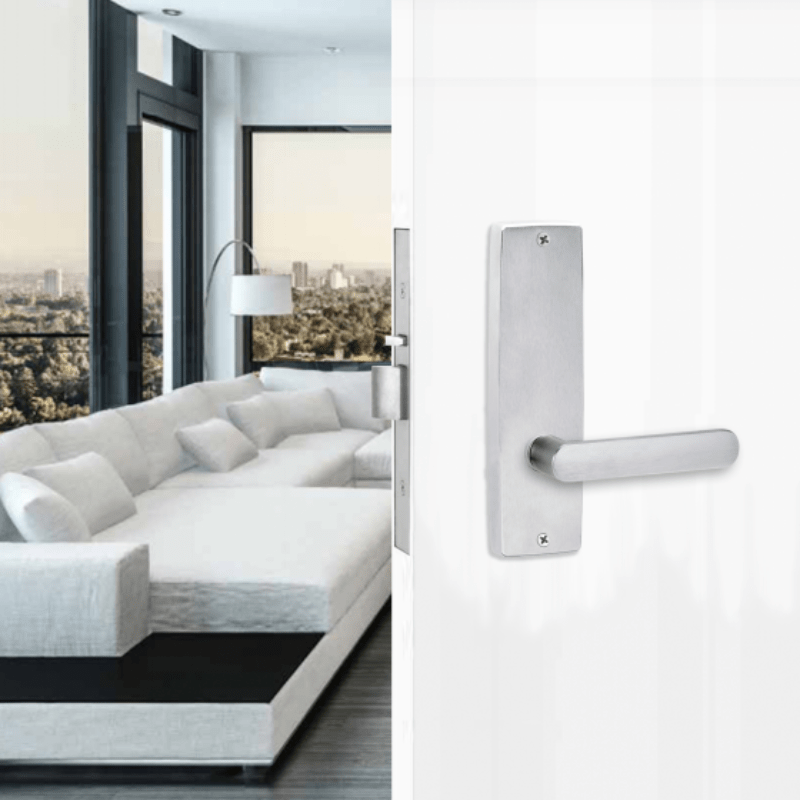

The Lockwood 1905 Square End Plate with 106 Lever in Satin Chrome combines refined aesthetics with exceptional durability for both residential and commercial applications. The square end plate measures 166mm by 48mm, delivering a crisp, modern appearance that suits a variety of interiors. The 106 lever, measuring 130mm long with a 48mm projection, is expertly shaped for smooth, ergonomic operation, ensuring comfort in frequent use. The satin chrome finish offers a subtle, low-sheen look that effectively resists fingerprints, tarnishing, and everyday wear, maintaining its clean appearance over time. Designed for timber doors 32mm to 50mm thick, this hardware supports non-handed installation and provides options for visible or concealed fixing for a neat result. The 1905 series upholds Lockwood’s tradition of quality engineering, offering a reliable, stylish solution where both function and lasting visual appeal are essential.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
Restrained rounding on an inherently robust premise keeps the lines of the Lockwood Lever 106 both soft and clean.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever 106
- Internal plate with visible fixings (screws not included)
- Lever only
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 130mm
Projection: 48mm
Finger clearance: 40mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1905/106SC |
|---|---|
| EAN | 9340116074122 |
| Handle Type | Lever 106 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
