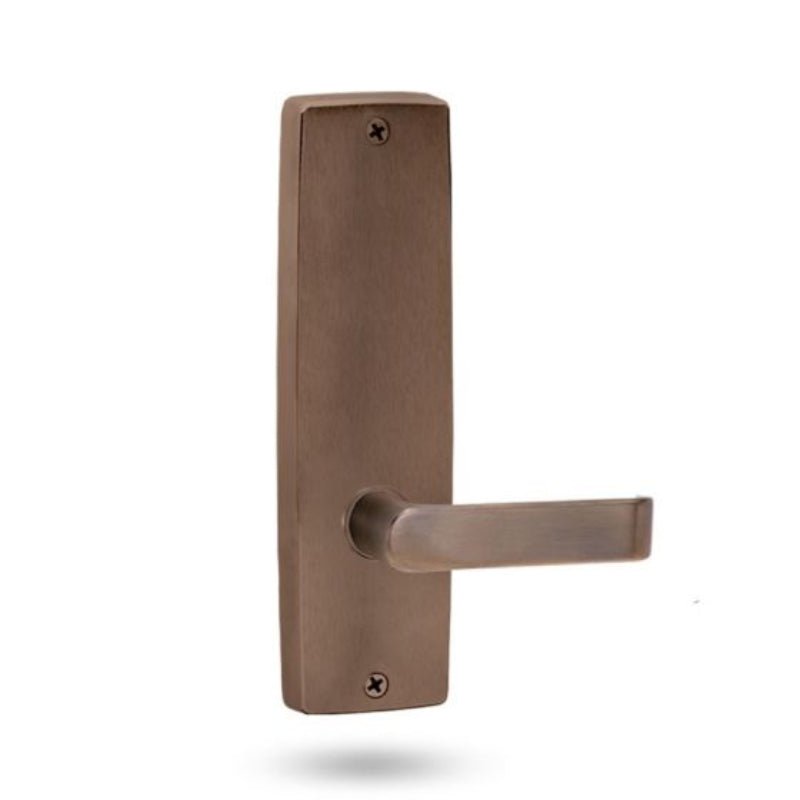

Lockwood 1905 Square End Plate With 59 Lever Oil Rubbed Bronze 1905/59ORB

Description
The Lockwood 1905 Square End Plate with 59 Lever in Oil Rubbed Bronze finish offers a striking and durable hardware option for internal timber doors between 32mm and 45mm thick. The square end plate has dimensions of 166mm height by 48mm width, presenting a clean, architectural look. The 59 lever is approximately 130mm in length with a 61mm projection, providing ergonomic comfort for smooth operation. The oil rubbed bronze finish features a rich, dark patina with subtle variations, enhancing character and providing excellent resistance to wear and tarnish. The hardware includes visible internal fixings with concealed external fixings to ensure a secure and neat installation. This lever is compatible with Lockwood 3570 Series mortice locks and reflects Lockwood's commitment to quality, durability, and aesthetic excellence.Here is the requested information for the Lockwood 1905 series square end plate products with various levers.

Lockwood 1800 Series Square End Plate Brass Furniture

Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.

Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.

Just as it provides the perfect prelude, so the Lockwood Overture Lever with its subtle shaping achieves a memorable introduction.

The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.

Features

• Lockwood lever Overture 59
• Internal plate with visible fixings (screws not included)
• Lever only
• Cylinder pitch 64mm
• Fixing centres 148mm
• Non-handed
• Supplied in trade pack

Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm

Lever Dimensions
Length: 121mm
Projection: 57.5mm
Finger clearance: 51mm

When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.

Handing
Symmetrical levers may be reversed by removing the stop screw.

Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.

Finish
Oil Rubbed Bronze ORB
