Description

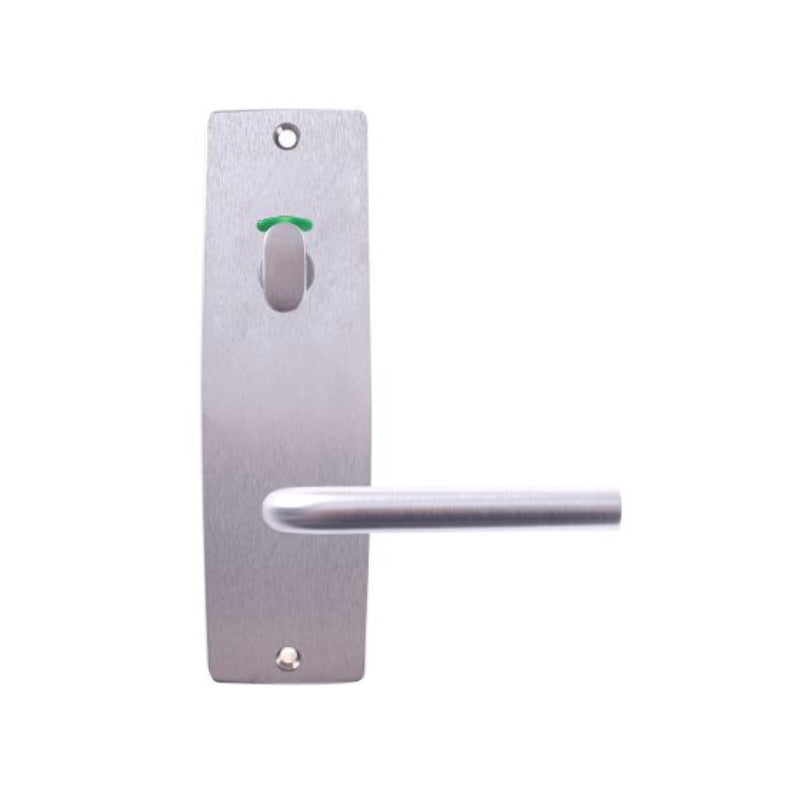

The Lockwood 1916 Square End Plate with Privacy Indicator, Turn Knob, and 97 Lever in Satin Chrome finish is a premium door hardware solution designed for internal timber doors between 32mm and 50mm thick. The plate measures approximately 166mm high by 48mm wide with beveled edges, delivering a sleek, contemporary architectural profile. The ergonomic 97 lever is designed for comfort and functionality, making it suitable for commercial and residential privacy applications. The square end plate includes a privacy indicator and emergency turn knob for secure privacy control, ideal for bathrooms and private spaces. The satin chrome finish provides a fingerprint-resistant matte surface, durable against tarnishing and everyday wear. The hardware is fire rated and meets Australian accessibility standards (AS1428.1), installed with visible fixings for secure back-to-back mounting on double-sided doors.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
This elongated cylindrical lever has style yet sacrifices none of the superb engineering quality that is synonymous with Lockwood.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever Chorus Line 97
- Internal plate with visible fixings (screws not included)
- Privacy indicating oval turn
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 120mm
Projection: 50.5mm
Finger clearance: 34.6mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1916/97SC |
|---|---|
| EAN | 9340116058276 |
| Handle Type | Lever 97 |
