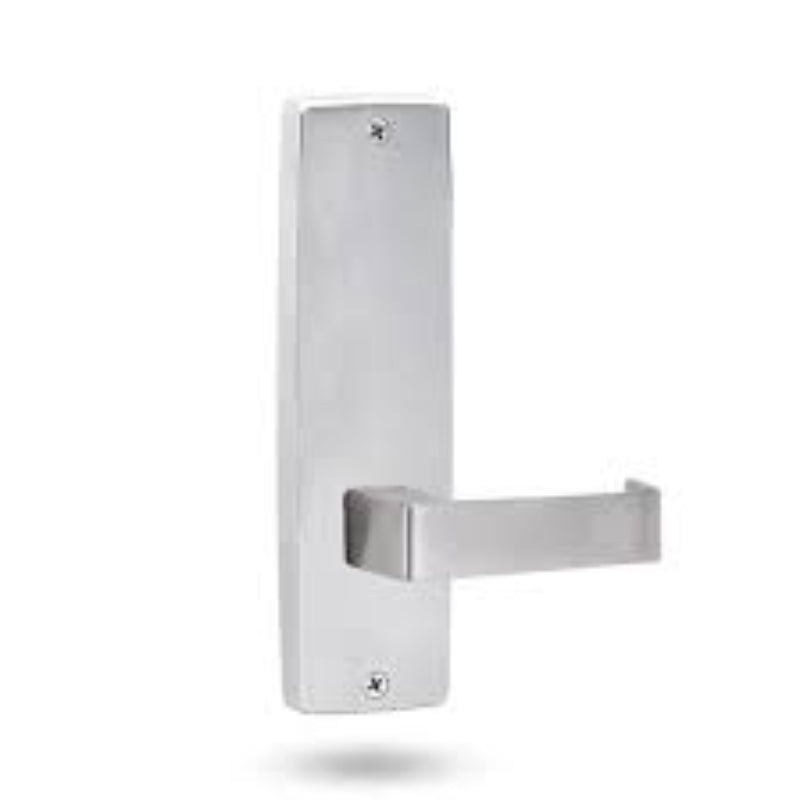

The Lockwood 1920 Square End Plate With Cylinder Hole, LED & 90 Lever Satin Chrome is a satin chrome interior square-end brass plate from the Lockwood 1800 Series. The plate measures 166 x 48 x 12 mm and suits door thicknesses of 32–45 mm. It is fitted with Lever 90 (118.5 mm long, 52 mm projection), which meets AS1428.1 for access and mobility.
Plate Function: Cylinder, Lever & LED (1920)
This is the Cylinder, Lever & LED function (code 1920) — the plate has a cylinder, a lever and an LED status indicator (for electric mortice locks).
Lockwood plate functions explained (with codes):
Standards & Compliance
- Fire tested up to 4 hours (AS1905.1:2005) on fire-rated door assemblies.
- Tested to Level D8 (500,000 cycles) under AS4145.2-2008 for locksets and hardware.
- Brushed satin chrome tested to Level C10 (1,000 hours) salt-spray under AS4145.2-2008.
- Lever 90 meets AS1428.1-2009 for design for access and mobility.
- Designed, assembled and customised in Australia.
Complete Your Door Set
Lockwood plates are supplied as a single face. To make a working set you may also need (sold separately):
- The matching exterior plate — Lockwood 1820/90SC in the same lever and finish, to complete both faces of the door.
- A Lockwood mortice lock — a Selector 3770 or Synergy 3570 Series mortice lock to suit the 1800 Series and your door.
- A Lockwood cylinder — a 570 Series oval cylinder to key the door.
Warranty
Mechanical parts are warranted against defects in materials and workmanship under normal use, when correctly installed.
Lacquered and plated finishes are covered against finish defects; unlacquered and living brass finishes patina naturally and are excluded from finish cover. Manufactured by ASSA ABLOY Australia. Lockwood warranty →
Available Finishes
Swatch range for the 1800 Series. Unlacquered and living finishes develop a natural patina over time.
What is the Lockwood 1920 Square End Plate With Cylinder Hole, LED & 90 Lever Satin Chrome?
It is a Lockwood 1800 Series interior square-end brass plate with the Cylinder, Lever & LED function, finished in satin chrome.
What does the Cylinder, Lever & LED function do?
The plate has a cylinder, a lever and an LED status indicator (for electric mortice locks).
What size is the plate and what door thickness does it suit?
The plate measures 166 x 48 x 12 mm and suits doors 32–45 mm thick. Longer fixing screws are available for thicker doors.
What lever does it use?
Lever 90, which is 118.5 mm long with 52 mm projection and meets AS1428.1 for access and mobility.
What finishes are available?
The 1800 Series is available in Satin Chrome, Chrome Plate, Polished Brass, Satin Brass, Polyester Powdercoat and special finishes including Architectural Bronze, Antique Copper, Oil Rubbed Bronze and Aged Brass. Unlacquered and living finishes patina naturally over time.
What else do I need to complete the door set?
Lockwood plates are supplied as a single face. To make a working set you may also need the matching exterior plate (Lockwood 1820/90SC), a Lockwood Selector 3770 or Synergy 3570 Series mortice lock, a Lockwood 570 Series cylinder — all sold separately.
What warranty applies?
Lockwood plate door furniture carries a 25-Year Mechanical Warranty against defects in materials and workmanship. Unlacquered and living brass finishes patina naturally and are excluded from finish cover. Manufactured by ASSA ABLOY Australia.
How long does delivery take?
This item is made to order — please allow 2–3 weeks for delivery, depending on the supplier.
