Description

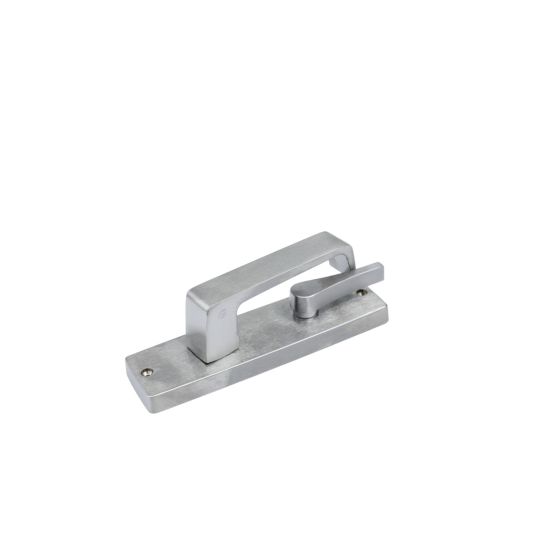

The Lockwood 1939/115SC features a square end plate with a disabled turn function paired with an ergonomic 115 lever, finished in satin chrome. Suitable for timber doors 32mm to 45mm thick, the plate measures approximately 166mm high by 48mm wide with beveled edges, offering a sleek, modern design. The disabled turn complies with AS1428.1 accessibility standards, facilitating easier operation for people with disabilities. The satin chrome finish provides a fingerprint-resistant, matte surface that resists tarnishing and wear, ideal for commercial and institutional settings. The 115 lever is ergonomically designed to provide comfort and durable performance. This hardware is fire rated up to 4 hours as per Australian standards and includes visible fixings for secure back-to-back installation on double-sided doors.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
The sleek design of the Lockwood Lever 115 exudes an aura of elegance.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever 115
- Internal plate with visible fixings (screws not included)
- Accessibility turn
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 140.5mm
Projection: 60mm
Finger clearance: 40mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1939/115SC |
|---|---|
| EAN | 9340116081199 |
| Handle Type | Lever 115 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
