DESCRIPTION

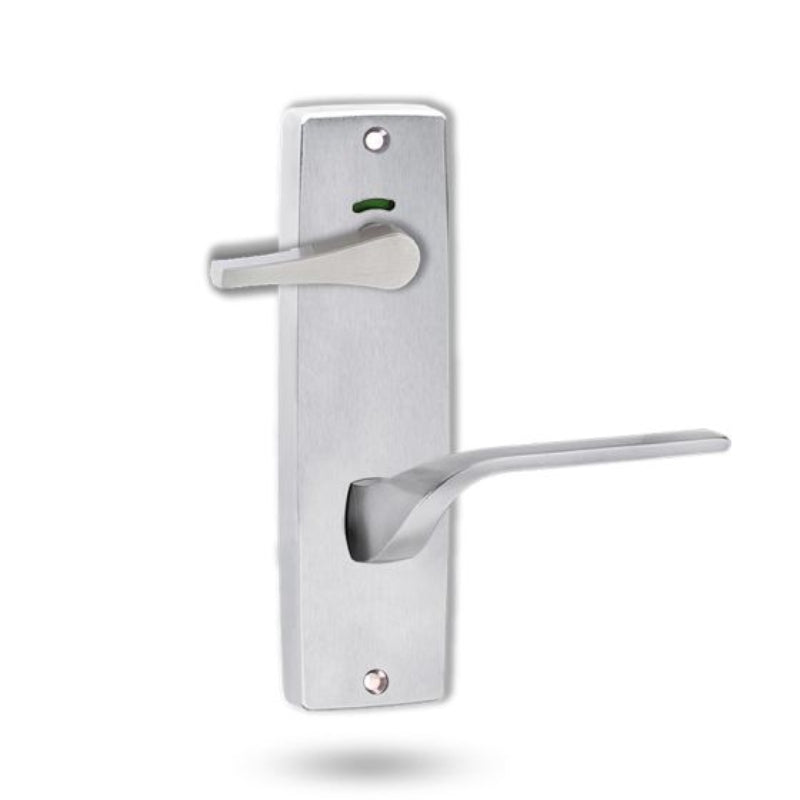

The Lockwood 1941 series square plate combines privacy, accessibility, and durability in a stylish architectural hardware solution. Featuring solid brass construction with a satin chrome finish, this plate offers corrosion, wear, and tarnish resistance for long-term use in commercial and public applications. Designed to accommodate doors from 32mm to 45mm thick, this model includes a clear privacy indicator to signal occupancy in restrooms or other controlled environments. The disabled turn mechanism ensures compliant, smooth operation for accessibility standards (AS1428.1). The ergonomic 132 lever can be reversed to fit left or right hand doors, and the plate’s rectangular shape with bevelled edges adds structural strength with a modern aesthetic. Visible fixings allow secure installation, and the product carries a 25-year mechanical warranty and a 10-year finish warranty. This hardware provides effective, reliable functionality with sophisticated style for demanding architectural projects.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
This traditional Australasian shape has clear lines and distinctive form to enhance its quality.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever 132
- Internal plate with visible fixings (screws not included)
- Privacy indicating accessibility turn
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 130mm
Projection: 57.5mm
Finger clearance: 40mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1941/132SC |
|---|---|
| EAN | 9340116084350 |
| Handle Type | Lever 132 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
