Description:

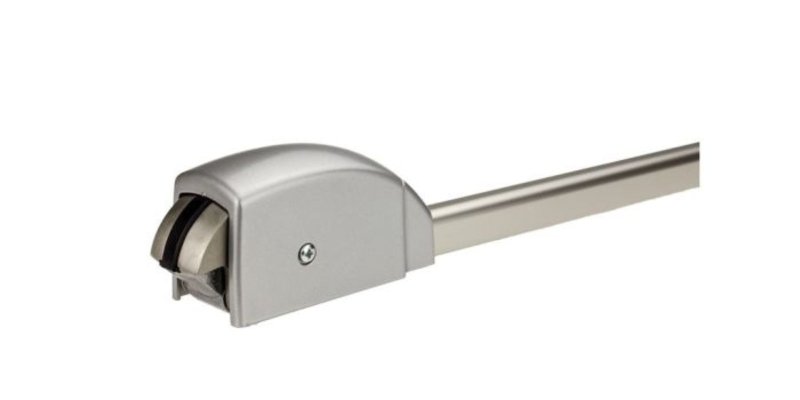

This 2 Point Exit Device VL with Cylinder Dogging in Silver finish is designed for 900mm wide doors. It features vertical locking for added security and a cylinder dogging mechanism that allows the device to be held in an unlatched position when required. Suitable for commercial and industrial safety applications.
The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.
Features
- Brushed Stainless Steel Bolt
- High level of resistance. Up to 500kg to each latching point.
- Tested to 1,000,000 cycles
- Auxiliary bolt activation from 1mm
- Effortless opening < 20N required
- Available in both vertical and horizontal latching positions in 2/3 point configurations
- Bar can be cut down to 350mm
- New fixing bracket and template design reduces installation time by up to 50%
- Protect. Evacuating people safely
- Secure. High vandal resistance
- Optimise. A simple and efficient installation process
Standards and Compliance
- Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
- Conforms to the standards as setout in CE EN1125 -2008.
| Model No | FE209/1VSIL |
|---|---|
| EAN | 3129500436540 |
