Lockwood 2024 Series Closer Std Backcheck with Offset Parallel Arm Bracket – Silver 2024BCOPSIL
Lockwood 2024 Series Closer Std Backcheck with Offset Parallel Arm Bracket – Silver 2024BCOPSIL

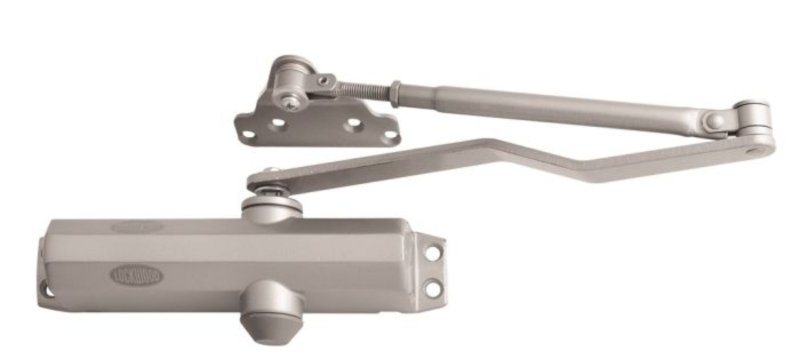

The Lockwood 2024 Series is a surface-mounted overhead door closer for commercial and residential doors. It uses an internal spring, tensioned as the door opens, to return the door to the closed position at a controlled speed, with adjustable closing and latching valves. This unit is fitted with a offset parallel arm.
Key Features
Specifications
| Series | 2024 Series |
| Type | Door Closer |
| Arm | Offset Parallel Arm |
| Mounting | Surface-mounted; suits push or pull side |
| Adjustments | Adjustable closing and latching speed |
| Finish | Silver |
Door Closer Functions Explained
Power Size Guide
| Power size | Max door width (mm) | Max door leaf weight (kg) |
|---|---|---|
| EN 1 | up to 750 | 20 |
| EN 2 | up to 850 | 40 |
| EN 3 | up to 950 | 60 |
| EN 4 | up to 1100 | 80 |
| EN 5 | up to 1250 | 100 |
| EN 6 | up to 1400 | 120 |
Guide to the EN power sizes (EN 1154), which are defined by the door leaf width and weight. This closer covers the size range shown highlighted; heavier or wider doors need a higher power size.
Standards & Compliance
- Power-adjustable overhead door closer for commercial and residential doors.
Available Finishes
Swatch colours are indicative only. Living finishes develop a natural patina over time.
Warranty
Mechanical parts are warranted against defects in materials and workmanship under normal use, when correctly installed. Manufactured by ASSA ABLOY Australia. Lockwood warranty →
What size door does it suit?
Overhead closers are power-adjustable; the size range in the product title (e.g. EN 1–4) indicates the door widths/weights it covers. Contact Prime Hardware if you need help matching a size.
What do delayed action, hold-open and back-check do?
Delayed action pauses the door open before it closes; hold-open keeps it open at a set point; back-check cushions the door if it is thrown open. Only the functions named in this product's title are fitted.
Can it be mounted on either side?
Yes — these closers suit push or pull side; slide-rail and parallel-arm options give a lower-profile or flush installation.
What is backcheck?
Backcheck slows the door as it nears the fully open position so it can't be flung into an adjacent wall — protecting the hinges, frame, closer and wall. It is a cushioning feature, not a hold-open, and is useful in windy or exposed locations. Only closers whose title lists backcheck have this fitted.
What is delayed action?
Delayed action holds the door open, or closes it very slowly, through the first part of the swing before returning to normal speed — giving extra time for wheelchairs, prams, trolleys or moving furniture. It is common in hospitals and aged care. Only closers whose title lists delayed action (DA) have this fitted.
Standard arm, parallel arm or slide rail — what's the difference?
A regular (standard) arm mounts on the push side. A parallel arm mounts on the pull side and sits flush to the door — popular in commercial buildings because it resists damage. A slide-rail arm runs in a low-profile track for a neater look. Top-jamb mounting is used on outward-opening doors.
Is this finish in stock?
Silver and Black finishes are normally held in stock with the supplier. All other finishes (and no-finish/raw components) are made to order — call Prime Hardware on 1800 329 028 to confirm availability and lead time before you order.
What warranty applies?
Lockwood products carry a 25-Year Mechanical Warranty against defects in materials and workmanship. Electrical/electronic components, where fitted, carry a separate electronic warranty. Manufactured by ASSA ABLOY Australia.
How can I get help?
Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156. We can confirm sizing, finishes and matching components before you order.
