DESCRIPTION

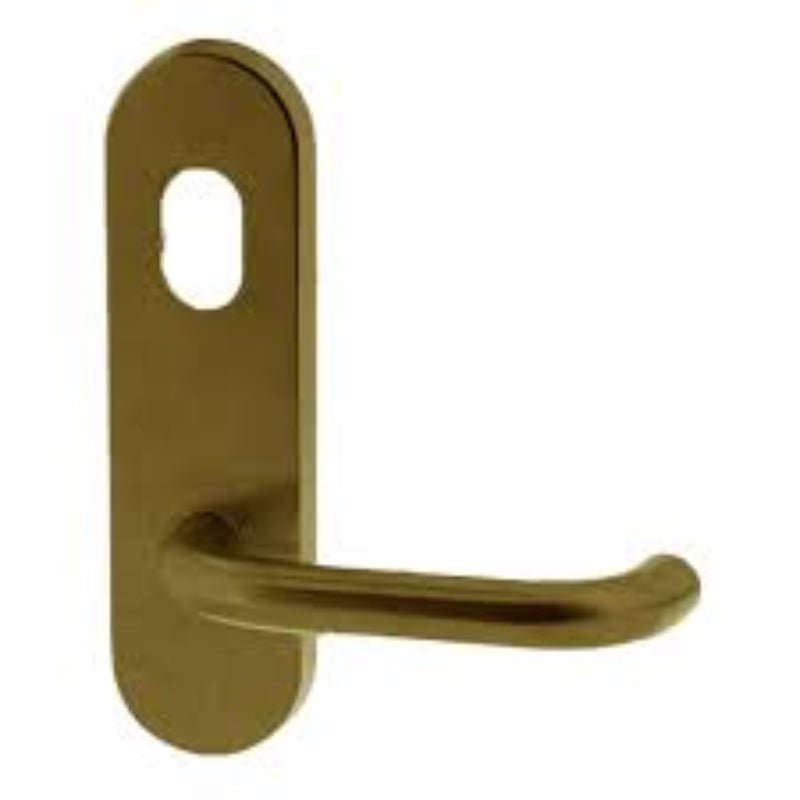

The Lockwood 2801 External Round End Plate with Cylinder Hole and 124 Lever in Architectural Bronze finish offers a robust and aesthetically refined solution for commercial and public buildings requiring secure, accessible entry hardware. The round end plate, crafted from solid brass, is finished in architectural bronze, giving a warm, elegant, and corrosion-resistant surface suitable for a variety of architectural styles. It fits standard oval cylinders and is designed for Lockwood 3570 Series mortice locks or equivalents. The 124 lever is non-handed, ergonomically designed for comfortable, smooth operation, and suitable for high-traffic applications. The plate measures approximately 166mm high, 48mm wide, and 12mm deep, fitting doors 32mm to 50mm thick. The product features concealed fixings to maintain a clean and tamper-resistant appearance. Fire rated up to 4 hours and backed by a 25-year mechanical warranty, this Lockwood hardware set delivers reliable performance and architectural elegance for demanding installations.
Designed for commercial and architectural applications, this external plate combines Lever 123 with a cylinder hole for secure access and a refined appearance.
Key Features
- Lever Style: 123 – ergonomic and modern design
- Plate Type: External round end plate with cylinder hole
- Fixing: Concealed (screws included)
- Dimensions: Plate – 166mm (H) × 48mm (W)
- Lever Dimensions: Length – 130.5mm; Projection – 59mm; Finger clearance – 40mm
| Model No | 2801/124AZ |
|---|---|
| EAN | 9340116148397 |
| Handle Type | Lever 124 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
