Lockwood 2805 Round End Plate With 77 Lever Polished Brass 2805/77PB
Lockwood 2805 Round End Plate With 77 Lever Polished Brass 2805/77PB

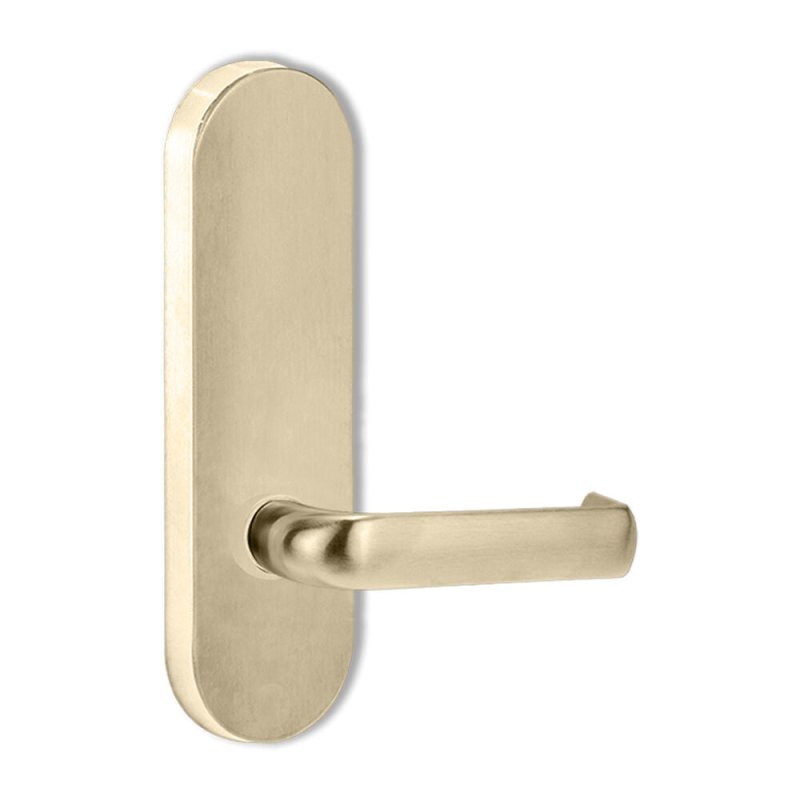

The Lockwood 2805 Round End Plate With 77 Lever Polished Brass is a polished brass exterior round-end brass plate from the Lockwood 2800 Series. The plate measures 166 x 48 x 12 mm and suits door thicknesses of 32–45 mm. It is fitted with Lever 77 (121 mm long, 51 mm projection), which meets AS1428.1 for access and mobility.
Plate Function: Lever Only (2805)
This is the Lever Only function (code 2805) — the plate has a lever only, with no locking. It operates the latch for a passage (non-locking) door.
Lockwood plate functions explained (with codes):
Standards & Compliance
- Fire tested up to 4 hours (AS1905.1:2005) on fire-rated door assemblies.
- Tested to Level D8 (500,000 cycles) under AS4145.2-2008 for locksets and hardware.
- Brushed satin chrome tested to Level C10 (1,000 hours) salt-spray under AS4145.2-2008.
- Lever 77 meets AS1428.1-2009 for design for access and mobility.
- Designed, assembled and customised in Australia.
Complete Your Door Set
Lockwood plates are supplied as a single face. To make a working set you may also need (sold separately):
- The matching interior plate — Lockwood 2905/77PB in the same lever and finish, to complete both faces of the door.
- A Lockwood mortice lock — a Selector 3770 or Synergy 3570 Series mortice lock to suit the 2800 Series and your door.
- A Lockwood cylinder — a 570 Series oval cylinder to key the door.
Warranty
Mechanical parts are warranted against defects in materials and workmanship under normal use, when correctly installed.
This is an unlacquered / living finish that develops a natural patina over time and is excluded from finish-defect cover. Manufactured by ASSA ABLOY Australia. Lockwood warranty →
Available Finishes
Swatch range for the 2800 Series. Unlacquered and living finishes develop a natural patina over time.
What is the Lockwood 2805 Round End Plate With 77 Lever Polished Brass?
It is a Lockwood 2800 Series exterior round-end brass plate with the Lever Only function, finished in polished brass.
What does the Lever Only function do?
The plate has a lever only, with no locking. It operates the latch for a passage (non-locking) door.
What size is the plate and what door thickness does it suit?
The plate measures 166 x 48 x 12 mm and suits doors 32–45 mm thick. Longer fixing screws are available for thicker doors.
What lever does it use?
Lever 77, which is 121 mm long with 51 mm projection and meets AS1428.1 for access and mobility.
What finishes are available?
The 2800 Series is available in Satin Chrome, Chrome Plate, Polished Brass, Satin Brass, Polyester Powdercoat and special finishes including Architectural Bronze, Antique Copper, Oil Rubbed Bronze and Aged Brass. Unlacquered and living finishes patina naturally over time.
What else do I need to complete the door set?
Lockwood plates are supplied as a single face. To make a working set you may also need the matching interior plate (Lockwood 2905/77PB), a Lockwood Selector 3770 or Synergy 3570 Series mortice lock, a Lockwood 570 Series cylinder — all sold separately.
What warranty applies?
Lockwood plate door furniture carries a 25-Year Mechanical Warranty against defects in materials and workmanship. Unlacquered and living brass finishes patina naturally and are excluded from finish cover. Manufactured by ASSA ABLOY Australia.
How long does delivery take?
This item is made to order — please allow 2–3 weeks for delivery, depending on the supplier.
How can I get help choosing or place an order?
Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
