DESCRIPTION

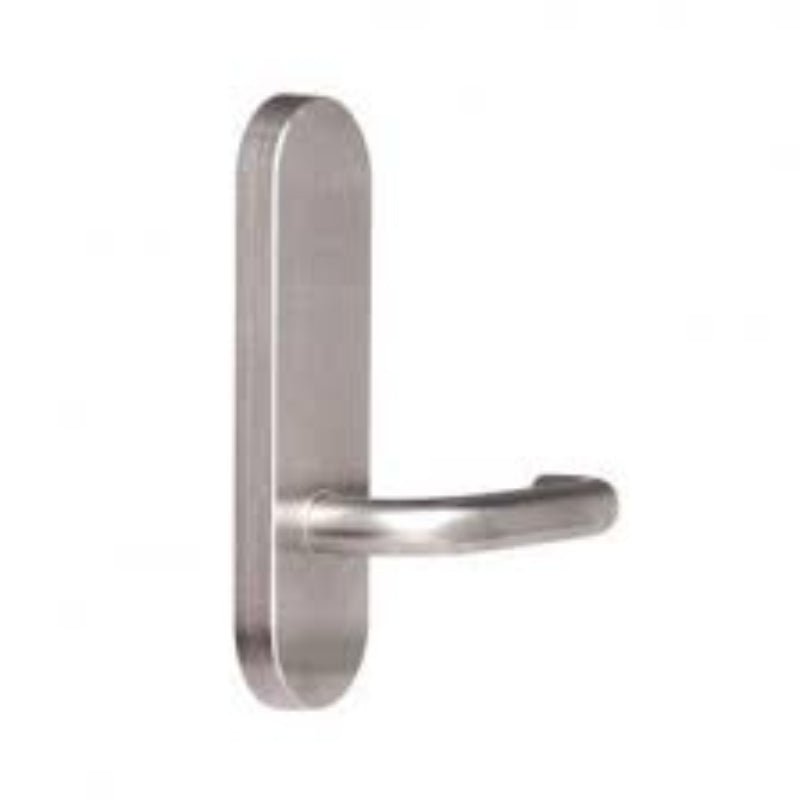

The Lockwood 2809 Round End Plate with 74 Fixed Lever in Satin Chrome finish is a durable and stylish door hardware solution designed for both commercial and residential applications. The plate measures approximately 166mm in length, 48mm in width, and 12mm in thickness, providing a strong and visually balanced mounting base. The 74 lever features an ergonomic design with a length of about 120mm, projection of 65mm, and finger clearance of 48mm, ensuring comfortable and secure operation. The Satin Chrome finish boasts excellent resistance to corrosion, tarnishing, and wear, maintaining a modern matte metallic appearance. Compatible with Lockwood Selector and Synergy mortice locks, the hardware complies with Australian fire safety and accessibility standards. Concealed fixing screws provide a clean aesthetic and secure installation. The 2809/74SC combines functional reliability with elegant design, making it suitable for a wide range of door hardware needs.Here is the detailed information for the Lockwood 2805 and 2807 series round end plates with various lever and finish options requested.
Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application. Features Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.
| Model No | 2809/74SC |
|---|---|
| EAN | 9311847133440 |
| Handle Type | Lever 74 |
| Handing | Reversible |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Tested to Standards | Tested to Australian Standard |
| Door Thickness Range | MIN 32mm |
