DESCRIPTION

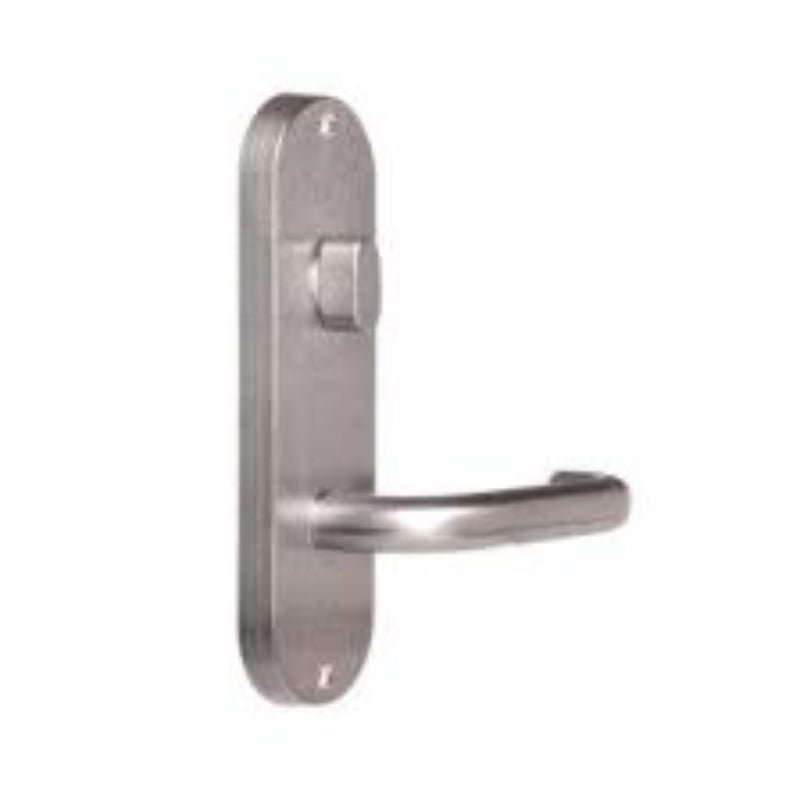

The Lockwood 2904/104SC is an interior rectangular round end plate featuring a turn snib and the 104 lever finished in Satin Chrome. The plate measures approximately 166mm in height, 48mm in width, and 12mm in thickness, designed for timber doors 32mm to 50mm thick. It has a unique self-adjusting turn snib tail bar to suit various door thicknesses and supports visible fixing installation. The 104 lever offers ergonomic operation suited for commercial, institutional, and residential use. The product is made from high-quality brass with a satin chrome finish that provides corrosion resistance and complies with Australian fire safety and accessibility standards. A 25-year mechanical warranty ensures its long-lasting performance and reliability.
The Lockwood 2904 Round End Plate is part of the 2800 Series door furniture range, designed for use with mortice locks in commercial and institutional settings. This configuration includes a privacy turn and is fitted with the 104 lever, offering a secure and ergonomic solution for internal doors. The satin chrome finish ensures a modern, durable appearance.
Key Features
- Round end plate with privacy indicator and emergency turn
- Fitted with Lever 104 for smooth, ergonomic operation
- Designed for use with Lockwood Selector 3770 and Synergy 3570 Series mortice locks
- Non-handed design; symmetrical levers can be reversed by removing the stop screw
- Concealed fixing on external plate; visible fixing on internal plate
- Back-to-back fixing using M4 screws
- Suitable for door thicknesses between 32mm and 50mm
- Plate dimensions: 166mm (H) × 48mm (W) × 12mm (D)
- Lever dimensions: 133.8mm length, 57.5mm projection, 40mm finger clearance
| Model No | 2904/104SC |
|---|---|
| EAN | 9340116101583 |
| Handle Type | Lever 104 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
