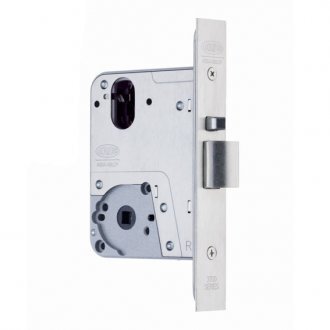

Lockwood 60mm Backset 3772SS Mortice Lock Stainless Steel

Lockwood Selector 3772 Universal Mortice Lock

• • The new Selector 3770 series mortice lock is designed to provide a larger range of lock functions into one primary lock. As an addition to the anti-lockout setting, this lock also provides a selectable holdback feature which is an industry first.
  • The hub selector located under the face plate allows for the adjustment of all handling settings (passage, combination or escape).
  • The lock has been successfully tested for up to four hours (depending on the type of Dorset) on fire door assemblies in accordance with Australian Standard - AS 1905.1- 2015, Part 1: Fire Resistant Doorsets.
  • Holdback must not be activated on fire doors.

• Features

  • Primary mortice lock with universal function

  • Easy Red and Green function setting.
  • All lock settings are made from under the faceplate which allows for simple in-door configuration.
  • Standard primary locks include anti-lockout and holdback capabilities (holdback is not suitable for fire doors).
  • Operated by key or handle outside, or by turnsnib, key or handle inside.
  • Zinc diecast body with stainless steel chassis plates added for improved strength.
  • Through-fixing of rose furniture turnknobs and escutcheons.
  • Electric Strike compatibility.
  • 60mm backset is the standard option, but, 89mm and 127mm are available upon request.
  • Suited to door thickness 32-50 mm.
  • 15mm stainless steel reversible latch bolt.
  • Supplied less cylinder.
  • Supplied with Selector® 'V' cam.
  • Compatible with most restricted keying systems.
  • Stainless steel finish.
