DESCRIPTION

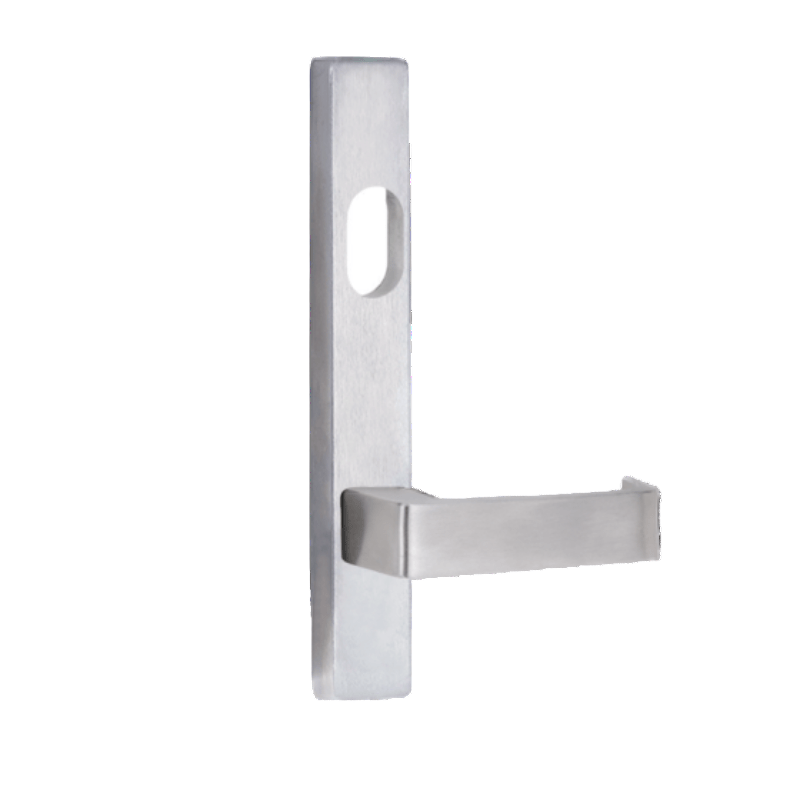

The Lockwood 4601 Square End Plate with Cylinder Hole and 90 Lever in Satin Chrome finish is a slim-line, rectangular brass plate designed for commercial and institutional doors. It measures approximately 185mm in height, 26mm in width, and 11.5mm in depth, fitting doors with thicknesses from 32mm to 50mm. It is compatible with Lockwood 3770/3570 Series Mortice Latches and features concealed fixing externally with visible fixing internally for back-to-back installation. The 90 lever offers an ergonomic design optimized for frequent use and comfort. The satin chrome finish provides a corrosion-resistant brushed surface that complements modern architectural aesthetics. This product complies with accessibility standards and comes with a 25-year mechanical warranty, ensuring long-lasting durability and reliable performance for architects, builders, and facility managers.
A slim-line, rectangular brass plate that adds style to your choice of lever.
Designed for use with Lockwood 3770/3570 Series Mortice Latches (4600/4700) and 3780/3580 Series Mortice Latches (4800/4900 Series). Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts.
The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.
| Model No | 4601/90SC |
|---|---|
| EAN | 9311847313354 |
| Handle Type | Lever 90 |
| Handing | Reversible |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Tested to Standards | Tested to Australian Standard |
| Door Thickness Range | MIN 32mm |
